ITS-MS 2015 24V

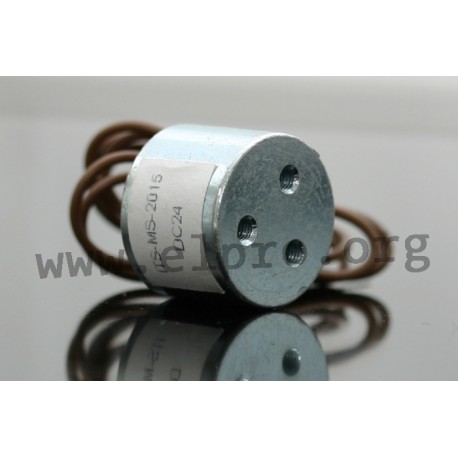

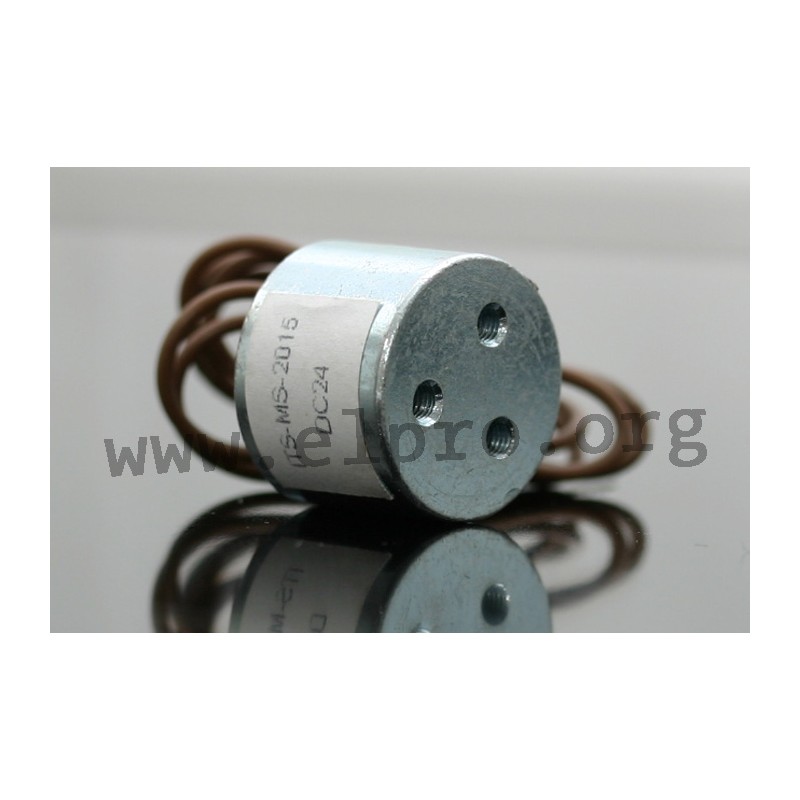

Red Magnetics electromagnet series ITS-MS

Holding magnets in an enclosed housing with rear mounting holes. These solenoids have a stranded wire connection (min. 200mm) and are fully encapsulated. They have an M3x0,5mm (ITS-MS 20_ / ITS-MS 30_) resp. an M4x0,7mm (ITS-MS 50_) mounting thread and are suitable for a broad range of applications. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,104 to 0,667A
  • rated power: 2,5 to 8W
  • holding force: 20 to 400N
ITS-MS 2015 24V

ITS-MS 2015 24V

32679 ITS-MS 2015 24V ITS-MS2015-24VDC ITS-MS2015-24VDC Red Magnetics electromagnet series ITS-MS. Holding magnets in an enclosed housing with rear mounting holes. These solenoids have a stranded wire connection (min. 200mm) and are fully encapsulated. They have an M3x0,5mm (ITS-MS 20_ / ITS-MS 30_) resp. an M4x0,7mm (ITS-MS 50_) mounting thread and are suitable for a broad range of applications. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,104 to 0,667A rated power: 2,5 to 8W holding force: 20 to 400N

Specifications

manufacturer
Manufacturer's name ITS-MS2015-24VDC
Rated current [mA] 104
Thread M3x0,5
Holding force [kg] 2
Diameter [mm] 20
Nominal capacity [W] 2,5
Length [mm] 15
Data Sheet

Unit price

11,79 €

Stock: 18
Further delivery:
CW 23/2025
