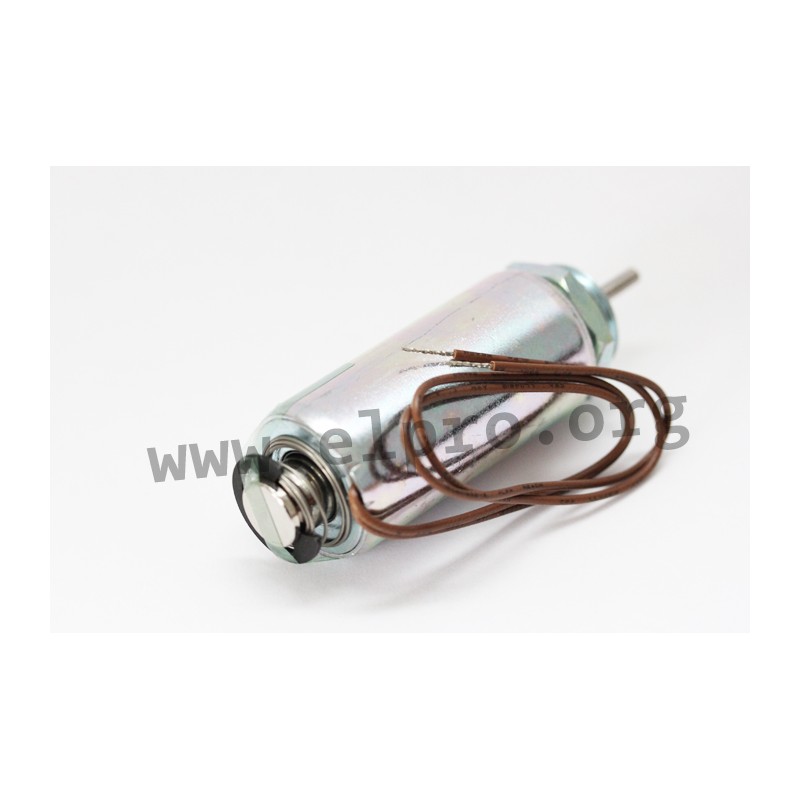

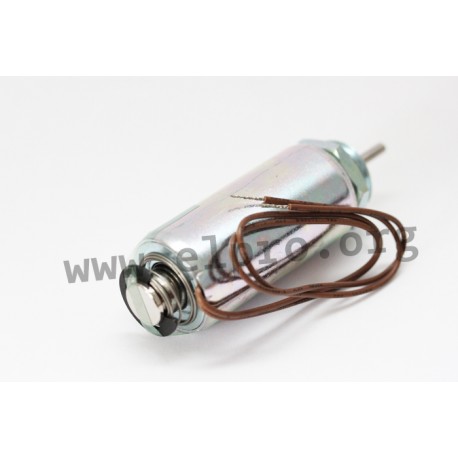

ITS-LZ 2560 D 24V

Red Magnetics electromagnet series ITS-LZ

Cylindrical magnets in a robust housing with a screw thread. These solenoids have a stranded wire connection (200mm) and are suitable use in for harsh environments. They are available as pull magnets without a return spring or as push magnets with a return spring. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,167 to 1,4A
  • rated power: 4 to 16,8W
  • holding force: 0,25 to 4,2kg
ITS-LZ 2560 D 24V

ITS-LZ 2560 D 24V

41832 ITS-LZ 2560 D 24V ITS-LZ-2560-D-24VDC ITS-LZ-2560-D-24VDC Red Magnetics electromagnet series ITS-LZ. Cylindrical magnets in a robust housing with a screw thread. These solenoids have a stranded wire connection (200mm) and are suitable use in for harsh environments. They are available as pull magnets without a return spring or as push magnets with a return spring. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,167 to 1,4A rated power: 4 to 16,8W holding force: 0,25 to 4,2kg

Specifications

manufacturer
Manufacturer's name ITS-LZ-2560-...
Design pushing...
Rated current [mA] 417
Weight anchor [g] 43
Ultimate power [kg] 22
Thread 0,75
Magnet weight [g] 178
Starting power [kg] 0,75
Holding force [kg] 2,2
Diameter [mm] 25
Nominal capacity [W] 10
Length [mm] 60
Data Sheet

Unit price

16,49 €

Stock: 59
Further delivery:
CW 23/2025
