ITS-LZ 1335 D 12V

Red Magnetics electromagnet series ITS-LZ

Cylindrical magnets in a robust housing with a screw thread. These solenoids have a stranded wire connection (200mm) and are suitable use in for harsh environments. They are available as pull magnets without a return spring or as push magnets with a return spring. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,167 to 1,4A
  • rated power: 4 to 16,8W
  • holding force: 0,25 to 4,2kg

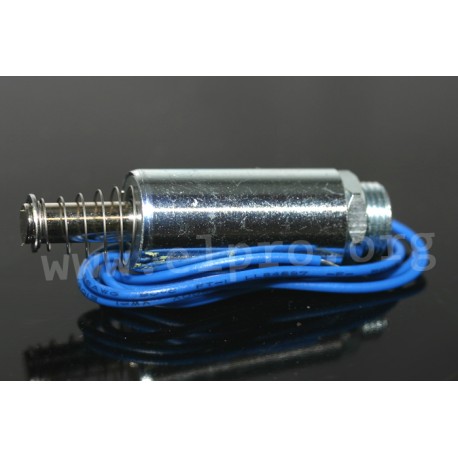

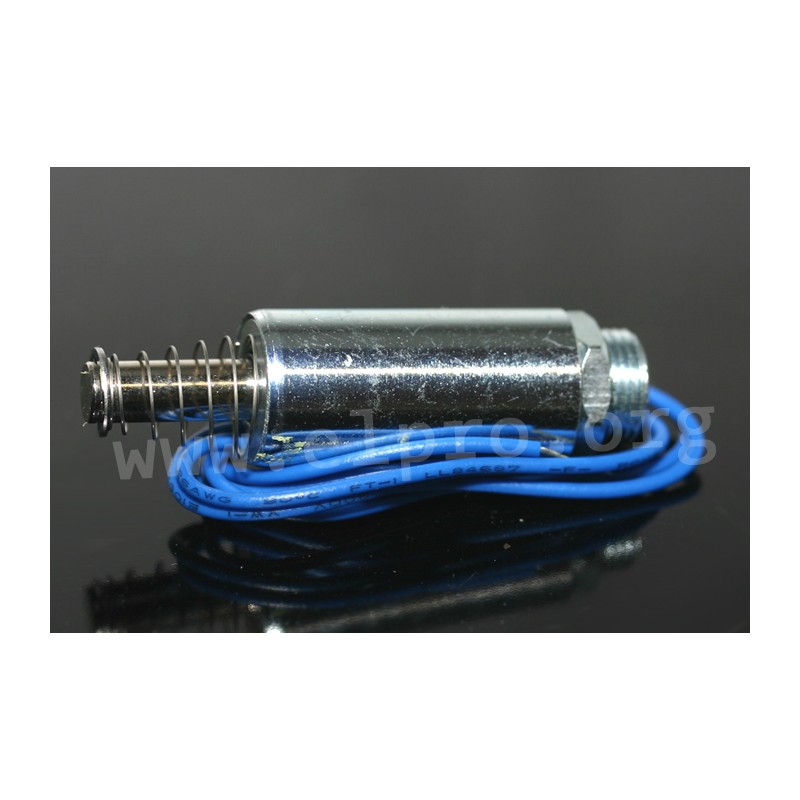

ITS-LZ 1335 D 12V

ITS-LZ 1335 D 12V

32675 ITS-LZ 1335 D 12V ITS-LZ-1335-D-12VDC ITS-LZ-1335-D-12VDC Red Magnetics electromagnet series ITS-LZ. Cylindrical magnets in a robust housing with a screw thread. These solenoids have a stranded wire connection (200mm) and are suitable use in for harsh environments. They are available as pull magnets without a return spring or as push magnets with a return spring. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,167 to 1,4A rated power: 4 to 16,8W holding force: 0,25 to 4,2kg

Specifications

manufacturer
Manufacturer's name ITS-LZ-1335-...
Design pushing...
Rated current [mA] 333
Weight anchor [g] 4,9
Ultimate power [kg] 2
Thread 0,375
Magnet weight [g] 23
Starting power [kg] 0,4
Holding force [kg] 0,25
Diameter [mm] 13
Nominal capacity [W] 4
Length [mm] 35
Data Sheet

Unit price

10,79 €

Stock: 4
Further delivery:
CW 23/2025
