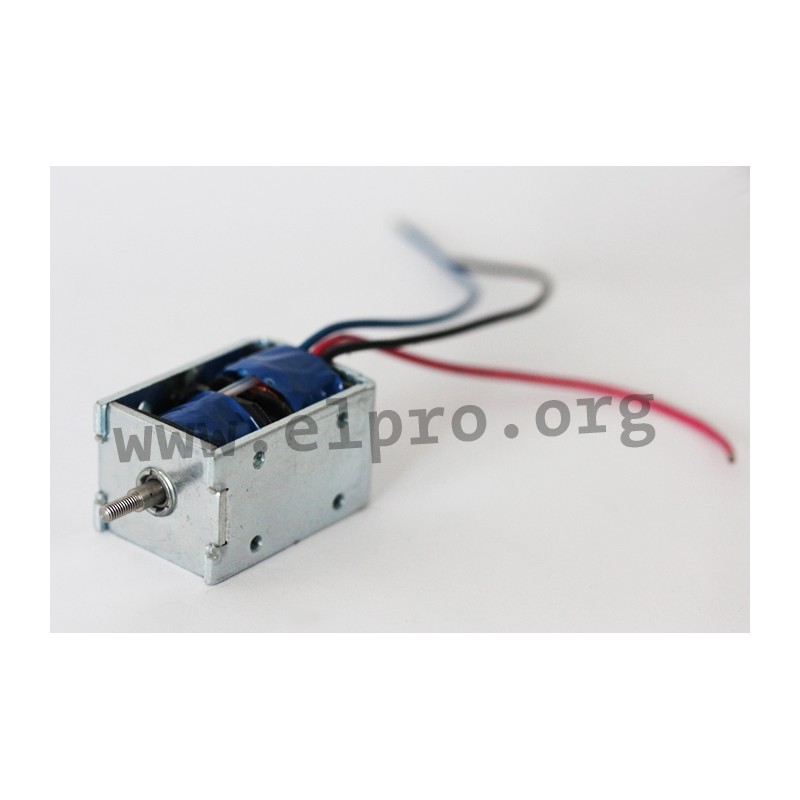

ITS-LX-2723-24VDC

Red Magnetics electromagnet series ITS-LX

Bistable solenoids in an open-frame housing with a positively driven plunger. These framed magnets are lightweight and stable in the end positions. They have a stranded wire conection (100mm) and a stroke length of 6mm (ITS-LX-15_/ITS-LX-22_) resp. 8mm (ITS-LX-27_). We offer the following types of this Red Magnetics series: ITS-LX-1513-12VDC, ITS-LX-1513-24VDC, ITS-LX-2218-24VDC, ITS-LX-2723-12VDC and ITS-LX-2723-24VDC.

  • rated voltage: 12 to 24V DC
  • rated current: 1 to 2,5A
  • rated power: 24 to 36W
  • holding force: 4 to 6N

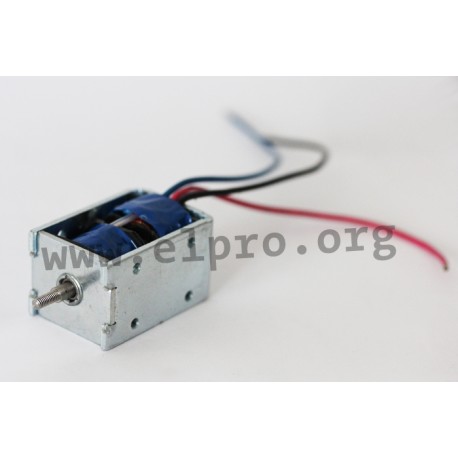

ITS-LX-2723-_

ITS-LX-2723-24VDC

45424 ITS-LX-2723-24VDC ITS-LX-2723-24VDC Red Magnetics electromagnet series ITS-LX. Bistable solenoids in an open-frame housing with a positively driven plunger. These framed magnets are lightweight and stable in the end positions. They have a stranded wire conection (100mm) and a stroke length of 6mm (ITS-LX-15_/ITS-LX-22_) resp. 8mm (ITS-LX-27_). We offer the following types of this Red Magnetics series: ITS-LX-1513-12VDC, ITS-LX-1513-24VDC, ITS-LX-2218-24VDC, ITS-LX-2723-12VDC and ITS-LX-2723-24VDC. rated voltage: 12 to 24V DC rated current: 1 to 2,5A rated power: 24 to 36W holding force: 4 to 6N

Specifications

manufacturer
Manufacturer's name ITS-LX-2723-24VDC
Holding force [N] 5
Thread M3
Magnet weight [g] 102
Rated current [A] 1,25
D x L [mm] 26x23x40
Nominal capacity [W] 30
Data Sheet

Unit price

48,79 €

Stock: 0
Further delivery:
CW 23/2025
