ITS-LS 5852 D 24V

framed magnets ITS-LS by Red Magnetics

* series: ITS-LS
* for 12V or 24V
* with mounting holes
* available as pull magnet without ecuperating spring or push magnet with recuperating spring
* low weight because of open framed housing
* open framed with closed brace
* min. 200mm connecting lead
* by Red Magnetics

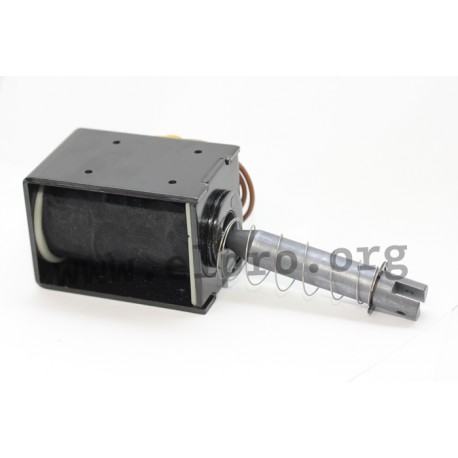

ITS-LS 5852 D 24V

ITS-LS 5852 D 24V

41842 ITS-LS 5852 D 24V ITS-LS 5852-D-24VDC ITS-LS 5852-D-24VDC framed magnets ITS-LS by Red Magnetics. * series: ITS-LS* for 12V or 24V* with mounting holes* available as pull magnet without ecuperating spring or push magnet with recuperating spring* low weight because of open framed housing* open framed with closed brace* min. 200mm connecting lead* by Red Magnetics

Specifications

manufacturer
Manufacturer's name ITS-LS 5852-D-24VDC
Design pushing...
Rated current [mA] 666
Weight anchor [g] 250
Nominal capacity [A] 16
Ultimate power [kg] 8,5
Thread 101S"-18UNF-2A
Magnet weight [g] 1090
Starting power [kg] 0,5
Holding force [kg] 4,2
Diameter [mm] 52x58
Length [mm] 84
Data Sheet

Unit price

74,89 €

Stock: 0
Further delivery:
CW 17/2025

Minimum order quantity 50 units or
multiples of 50.
