ITS-LS 5852 D 12V

Red Magnetics electromagnet series ITS-LS

Framed magnets in an open-frame housing with a closed brace and mounting holes. These magnets have a stranded wire connection (200mm) and a return spring. They are available as push or pull magnets and are lightweight. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,019 to 1,333A
  • rated power: 1,1 to 16W
  • holding force: 0,120 to 5,6kg

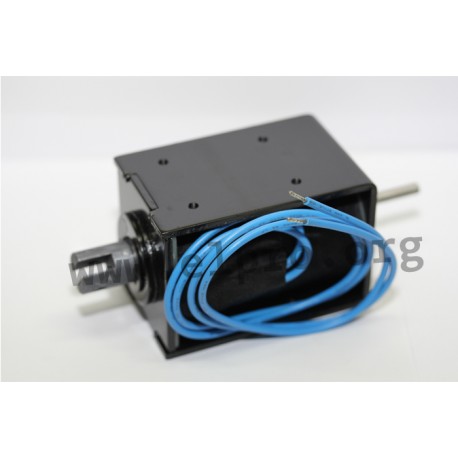

ITS-LS 5852 D 12V

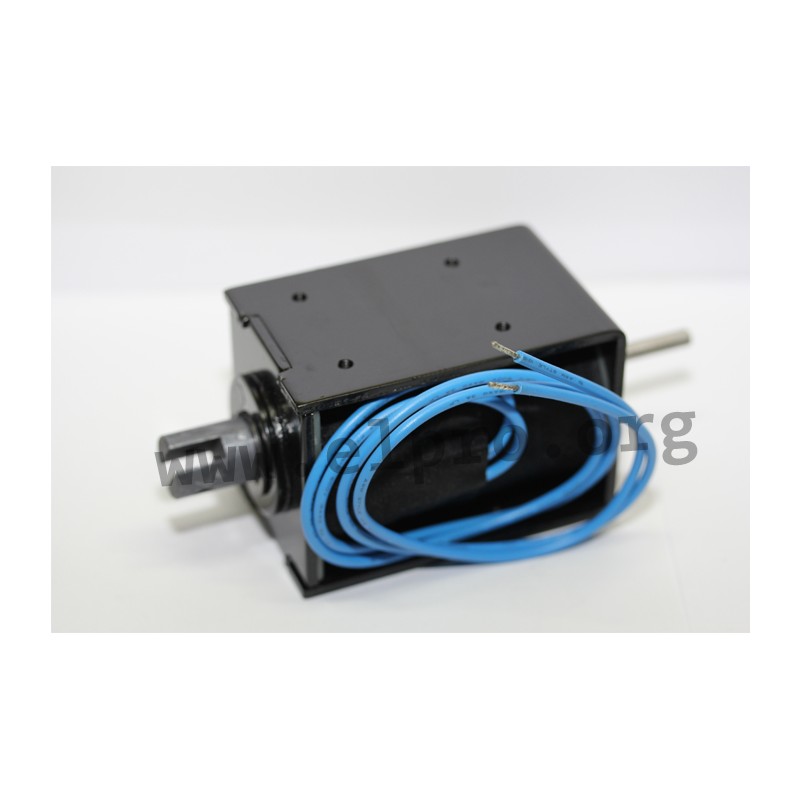

ITS-LS 5852 D 12V

41841 ITS-LS 5852 D 12V ITS-LS 5852-D-12VDC ITS-LS 5852-D-12VDC Red Magnetics electromagnet series ITS-LS. Framed magnets in an open-frame housing with a closed brace and mounting holes. These magnets have a stranded wire connection (200mm) and a return spring. They are available as push or pull magnets and are lightweight. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,019 to 1,333A rated power: 1,1 to 16W holding force: 0,120 to 5,6kg

Specifications

manufacturer
Manufacturer's name ITS-LS 5852-D-12VDC
Design pushing...
Rated current [mA] 1333
Weight anchor [g] 250
Nominal capacity [A] 16
Ultimate power [kg] 7,5
Thread 101S"-18UNF-2A
Magnet weight [g] 1090
Starting power [kg] 0,5
Holding force [kg] 4,2

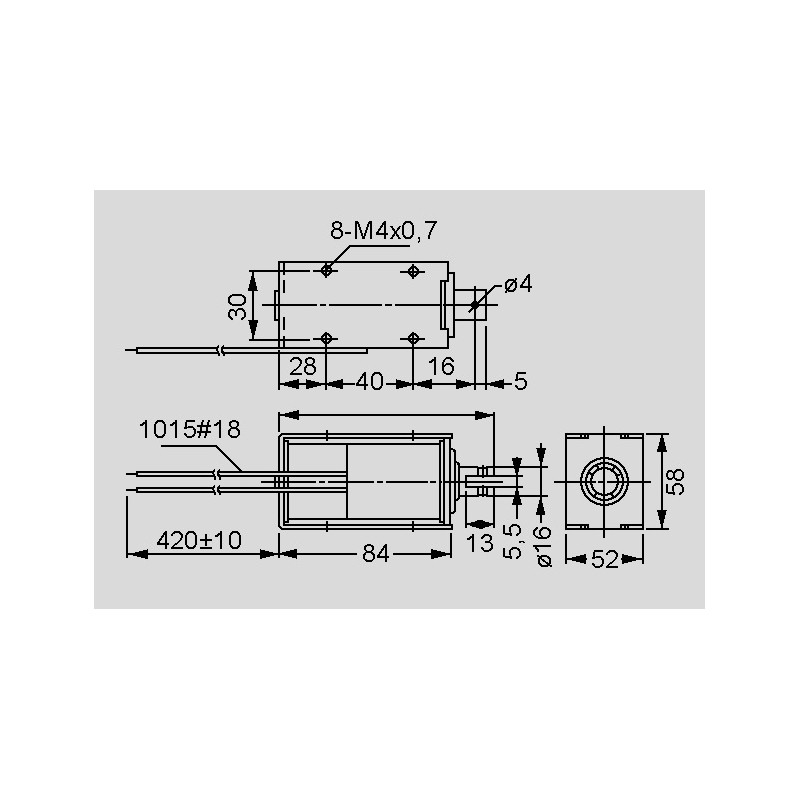

Diameter [mm] 52x58
Length [mm] 84
Data Sheet

Unit price

74,89 €

Stock: 0
Further delivery:
CW 17/2025
