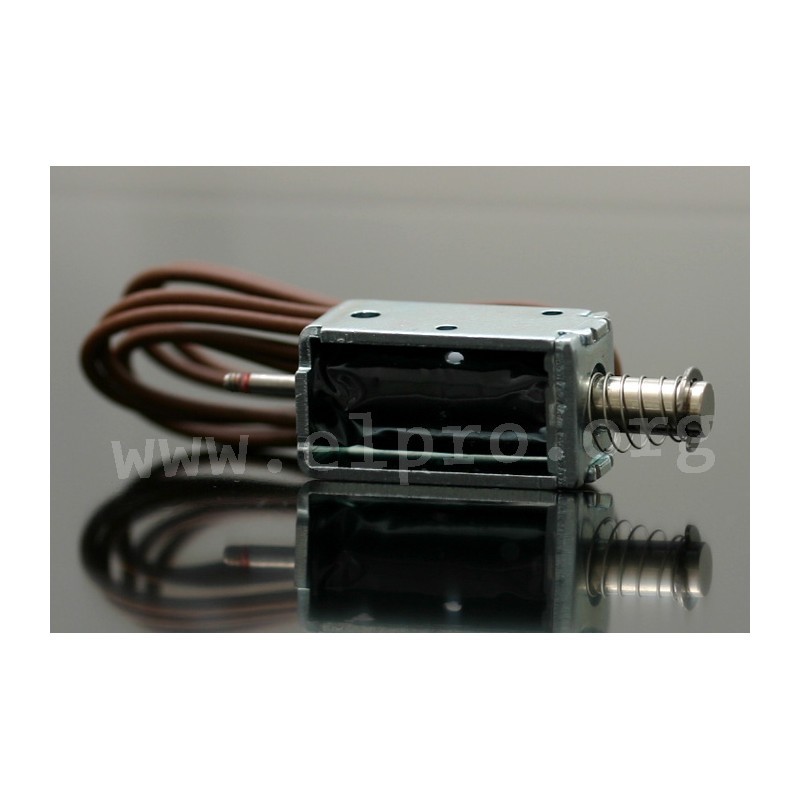

ITS-LS 4035 D 12V

framed magnets ITS-LS by Red Magnetics

* series: ITS-LS
* for 12V or 24V
* with mounting holes
* available as pull magnet without ecuperating spring or push magnet with recuperating spring
* low weight because of open framed housing
* open framed with closed brace
* min. 200mm connecting lead
* by Red Magnetics
ITS-LS 4035 D

ITS-LS 4035 D 12V

41837 ITS-LS 4035 D 12V ITS-LS-4035-D-12VDC ITS-LS-4035-D-12VDC framed magnets ITS-LS by Red Magnetics. * series: ITS-LS* for 12V or 24V* with mounting holes* available as pull magnet without ecuperating spring or push magnet with recuperating spring* low weight because of open framed housing* open framed with closed brace* min. 200mm connecting lead* by Red Magnetics

Specifications

manufacturer
Manufacturer's name ITS-LS-4035-...
Design pushing...
Rated current [mA] 1058
Weight anchor [g] 120
Nominal capacity [A] 12,7
Ultimate power [kg] 7,5
Thread 101S"-18UNF-2A
Magnet weight [g] 530
Starting power [kg] 0,8
Holding force [kg] 1,2
Diameter [mm] 35x40
Length [mm] 85

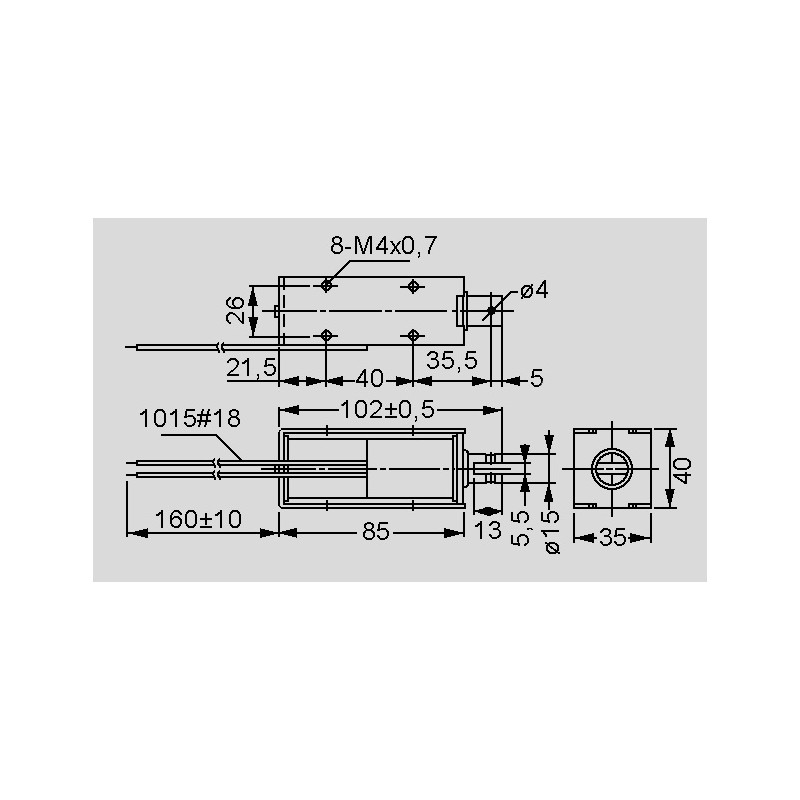

Data Sheet

Unit price

42,19 €

Stock: 0
Further delivery:
CW 07/2025
