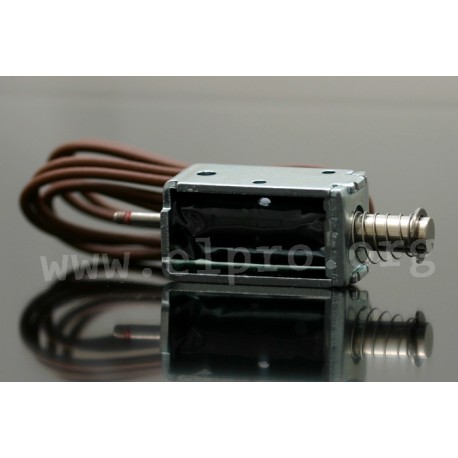

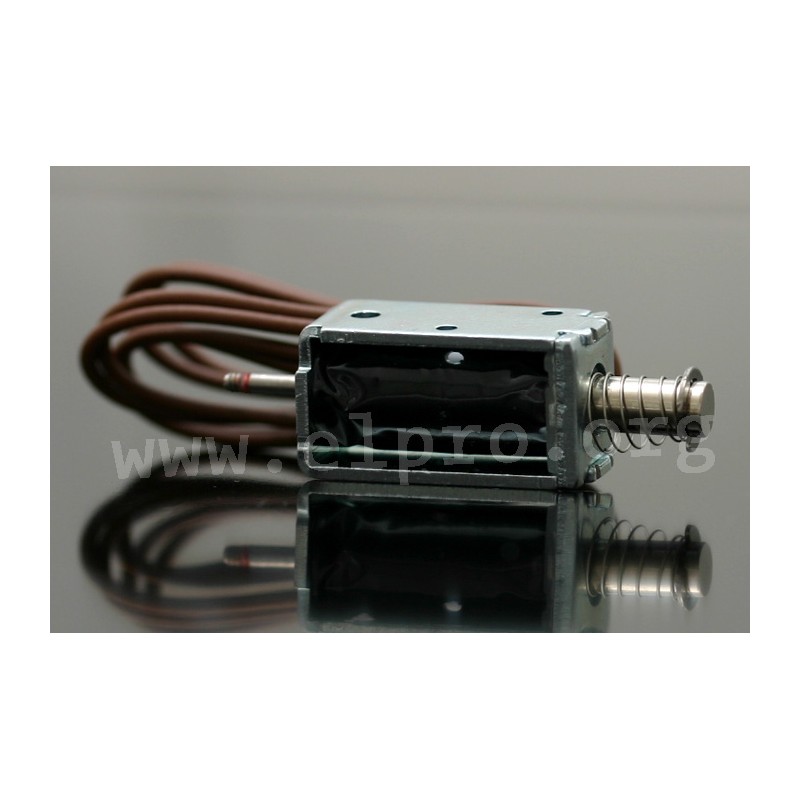

ITS-LS 1110b D 24V

Red Magnetics electromagnet series ITS-LS

Framed magnets in an open-frame housing with a closed brace and mounting holes. These magnets have a stranded wire connection (200mm) and a return spring. They are available as push or pull magnets and are lightweight. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,019 to 1,333A
  • rated power: 1,1 to 16W
  • holding force: 0,120 to 5,6kg
ITS-LS 1110b D 24V

ITS-LS 1110b D 24V

32672 ITS-LS 1110b D 24V ITS-LS-1110-B-D-24VDC ITS-LS-1110-B-D-24VDC Red Magnetics electromagnet series ITS-LS. Framed magnets in an open-frame housing with a closed brace and mounting holes. These magnets have a stranded wire connection (200mm) and a return spring. They are available as push or pull magnets and are lightweight. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,019 to 1,333A rated power: 1,1 to 16W holding force: 0,120 to 5,6kg

Specifications

manufacturer
Manufacturer's name ITS-LS-1110-...
Design pushing...
Rated current [mA] 46
Weight anchor [g] 2
Nominal capacity [A] 1,1
Ultimate power [kg] 0,2
Thread 2-2*M2
Magnet weight [g] 10
Starting power [kg] 0,018
Holding force [kg] 0,12

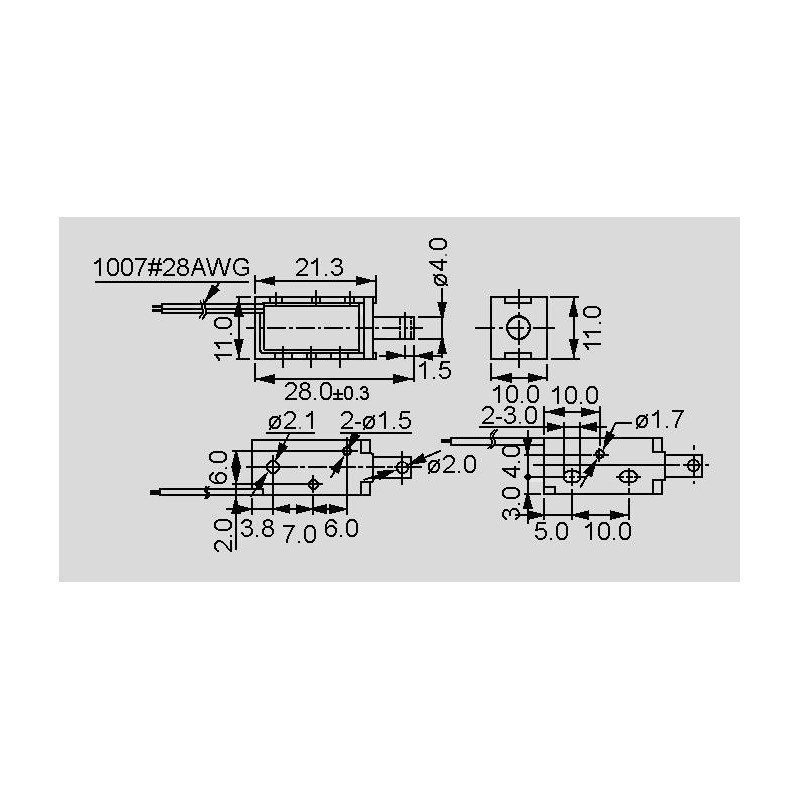

Diameter [mm] 10x11
Length [mm] 21,3
Data Sheet

Unit price

6,59 €

Stock: 47
Further delivery:
CW 17/2025
