IC 18 13,56 MHz

SMD quartz crystals IC18 by Red Frequency

* frequency: 9.83 to 13.56 MHz

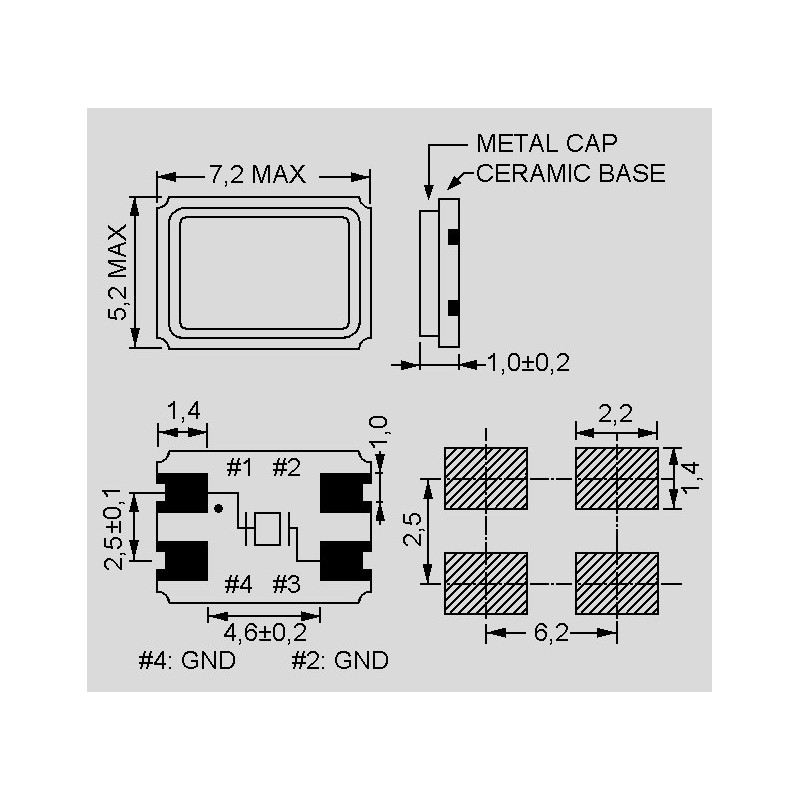

* housing: 7.2x5.2x1.2mm
* operating temperature: up -20 to +70°C
* frequency tolerance (25°C): ±20ppm
* frequency stability (up -20 to +70°C): ±30ppm
* maximum shunt capacitance: 7pF
* aging (25°C): ±3ppm/year
IC 18 13,56 MHz

IC 18 13,56 MHz

46138 IC 18 13,56 MHz IC18013.560M30.0CE1B IC18013.560M30.0CE1B SMD quartz crystals IC18 by Red Frequency. * frequency: 9.83 to 13.56 MHz* housing: 7.2x5.2x1.2mm* operating temperature: up -20 to +70°C* frequency tolerance (25°C): ±20ppm* frequency stability (up -20 to +70°C): ±30ppm* maximum shunt capacitance: 7pF* aging (25°C): ±3ppm/year

Specifications

manufacturer
Manufacturer's name IC18013.560M...
Equivalent series resistance, max. [Ω] 40
Frequency [MHz] 13,56
Capacity [pF] 30
Data Sheet

Unit price

0,651 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 500 units or
multiples of 500.
