IC 18 9,851 MHz

SMD quartz crystals IC18 by Red Frequency

* frequency: 9.83 to 13.56 MHz

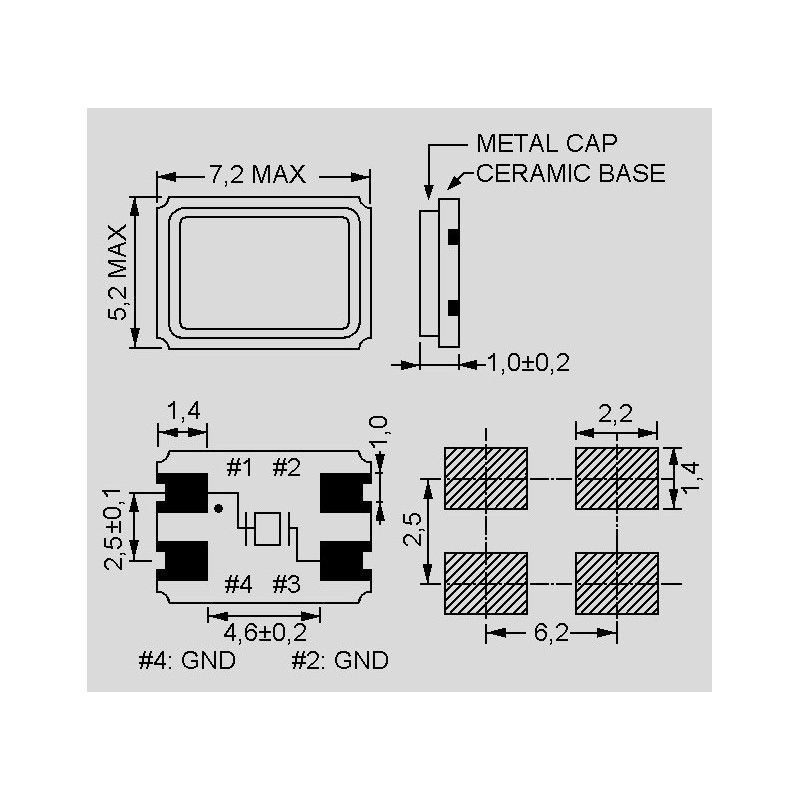

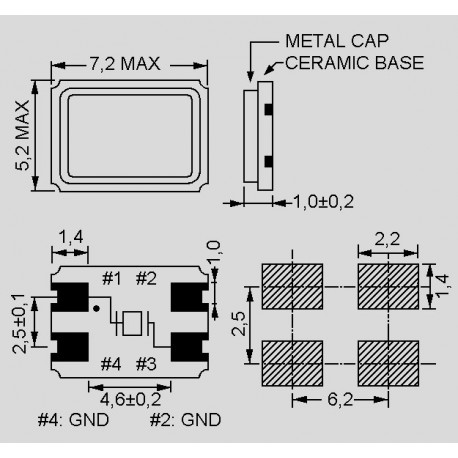

* housing: 7.2x5.2x1.2mm
* operating temperature: up -20 to +70°C
* frequency tolerance (25°C): ±20ppm
* frequency stability (up -20 to +70°C): ±30ppm
* maximum shunt capacitance: 7pF
* aging (25°C): ±3ppm/year
IC 18 9,851 MHz

IC 18 9,851 MHz

46136 IC 18 9,851 MHz IC18009.851M20.0CE1B IC18009.851M20.0CE1B SMD quartz crystals IC18 by Red Frequency. * frequency: 9.83 to 13.56 MHz* housing: 7.2x5.2x1.2mm* operating temperature: up -20 to +70°C* frequency tolerance (25°C): ±20ppm* frequency stability (up -20 to +70°C): ±30ppm* maximum shunt capacitance: 7pF* aging (25°C): ±3ppm/year

Specifications

manufacturer
Manufacturer's name IC18009.851M...
Equivalent series resistance, max. [Ω] 60
Frequency [MHz] 9,851
Capacity [pF] 20
Data Sheet

Unit price

0,489 €

Stock: 0
Further delivery:
CW 04/2025

Minimum order quantity 500 units or
multiples of 500.
