IO 12 20 MHz

SMD crystal oscillators IO12 by Red Frequency

• frequency: 8 to 100 MHz
• in metal housing 3.4x2.7x1.2mm
• suitable for CMOS
• series IO12 by Red Frequency
• consisting of piezoelectric resonator and oscillator circuit
• high reliability due to hermetically sealed metal housing
• tristate
• frequency stability (-20 to +70°C): ±50ppm
• temperature range: -40 to +85°C
• operating voltage (VDD): 3.3 Volt DC
• output voltage, max.
"1"-Level: +2.3 Volt(70% VDD)
"0"-Level: +1 Volt(30% VDD)

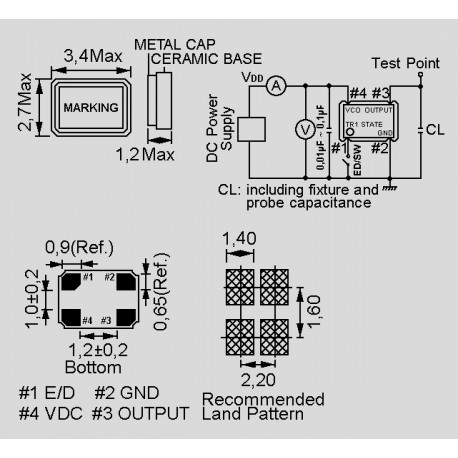

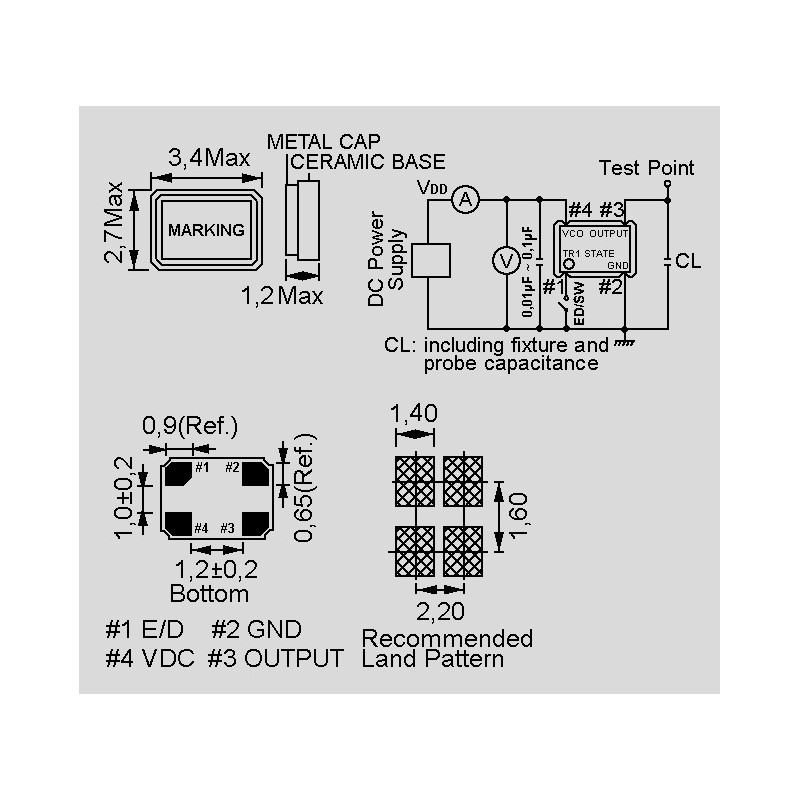

dimensions

IO 12 20 MHz

46209 IO 12 20 MHz IO12020.000M03.3EB IO12020.000M03.3EB SMD crystal oscillators IO12 by Red Frequency. * frequency: 8 to 100 MHz* in metal housing 3.4x2.7x1.2mm* suitable for CMOS* series IO12 by Red Frequency* consisting of piezoelectric resonator and oscillator circuit* high reliability due to hermetically sealed metal housing* tristate* frequency stability (-20 to +70°C): ±50ppm* temperature range: -40 to +85°C* operating voltage (VDD): 3.3 Volt DC* output voltage, max."1"-Level: +2.3 Volt(70% VDD)"0"-Level: +1 Volt(30% VDD)

Specifications

manufacturer
Manufacturer's name IO12020.000M03.3EB
Case 3,4 x 2,7 x 1,2 mm
Frequency [MHz] 20

Unit price

1,07 €

Stock: 0
Further delivery:
CW 26/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
