IO 12 11,0592 MHz

SMD crystal oscillators IO12 by Red Frequency

* frequency: 8 to 100 MHz
* in metal housing 3.4x2.7x1.2mm
* suitable for CMOS
* series IO12 by Red Frequency
* consisting of piezoelectric resonator and oscillator circuit
* high reliability due to hermetically sealed metal housing
* tristate
* frequency stability (-20 to +70°C): ±50ppm
* temperature range: -40 to +85°C
* operating voltage (VDD): 3.3 Volt DC
* output voltage, max.
"1"-Level: +2.3 Volt(70% VDD)
"0"-Level: +1 Volt(30% VDD)

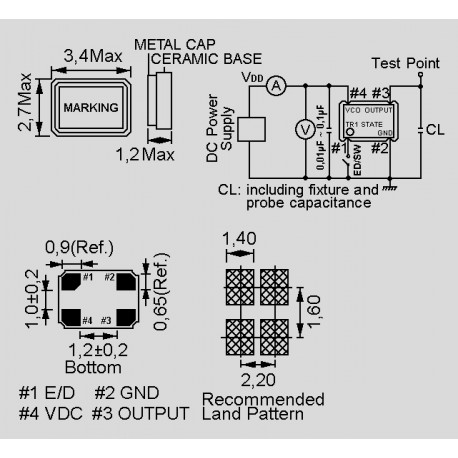

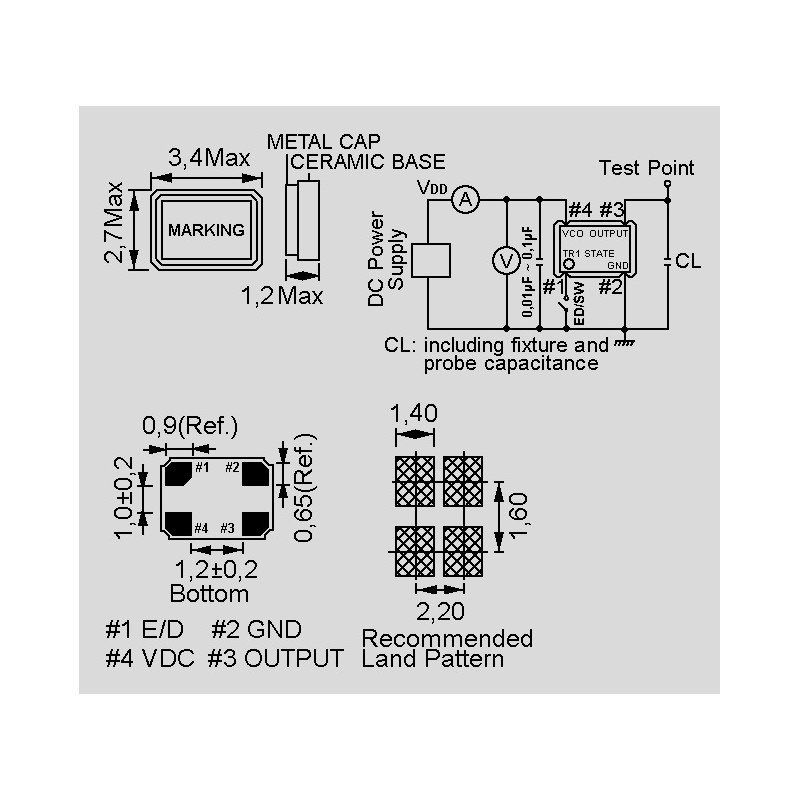

dimensions

IO 12 11,0592 MHz

46207 IO 12 11,0592 MHz IO12011.0592M03.3EB IO12011.0592M03.3EB SMD crystal oscillators IO12 by Red Frequency. * frequency: 8 to 100 MHz* in metal housing 3.4x2.7x1.2mm* suitable for CMOS* series IO12 by Red Frequency* consisting of piezoelectric resonator and oscillator circuit* high reliability due to hermetically sealed metal housing* tristate* frequency stability (-20 to +70°C): ±50ppm* temperature range: -40 to +85°C* operating voltage (VDD): 3.3 Volt DC* output voltage, max."1"-Level: +2.3 Volt(70% VDD)"0"-Level: +1 Volt(30% VDD)

Specifications

manufacturer
Manufacturer's name IO12011.0592...
Case 3,4 x 2,7 x 1,2 mm
Frequency [MHz] 11,0592

Unit price

0,845 €

Stock: 0
Further delivery:
CW 04/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
