IO 13 32.768 kHz

SMD crystal oscillators

• frequency: 32.768kHz
• in metal housing, 3.4x2.7x1.2mm
• suitable for CMOS
• consisting of piezoelectric resonator and oscillator circuit
• high reliability due to hermetically sealed metal housing
• tristate
• frequency stability (-20...+70°C): ±50ppm
• temperature range: -40...+85°C
• operating voltage (VDD): 3.3V DC
• current requirement, max.: 3.5mA
• output voltage, max.
"1"-Level: +2,3V(70% VDD)
"0"-Level: +1V(30% VDD)

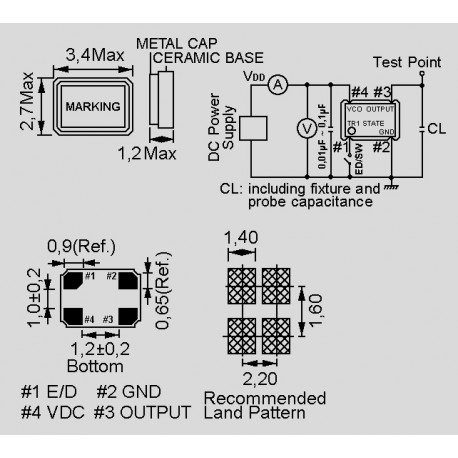

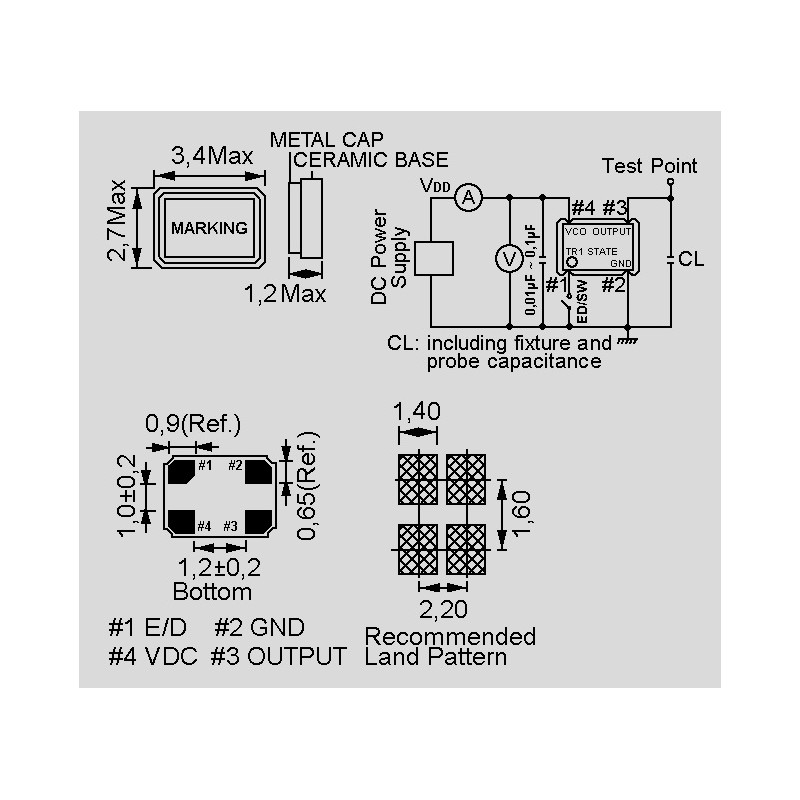

dimensions

IO 13 32.768 kHz

43280 IO 13 32.768 kHz IO13032.768K03.3EE IO13032.768K03.3EE SMD crystal oscillators. * frequency: 32.768kHz* in metal housing, 3.4x2.7x1.2mm* suitable for CMOS* consisting of piezoelectric resonator and oscillator circuit* high reliability due to hermetically sealed metal housing* tristate* frequency stability (-20...+70°C): ±50ppm* temperature range: -40...+85°C* operating voltage (VDD): 3.3V DC* current requirement, max.: 3.5mA* output voltage, max. "1"-Level: +2,3V(70% VDD)"0"-Level: +1V(30% VDD)

Specifications

manufacturer
Manufacturer's name IO13032.768K03.3EE
Case 3,4 x 2,7 x 1,2 mm
Frequency [kHz] 32,768
Data Sheet

Unit price

1,99 €

Stock: 0
Further delivery:
CW 26/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
