IO 31 TH 20 MHz

Red Frequency quartz oscillator series IO 31

  • quartz oscillators in a DIL14 housing
  • made of metal
  • suitable for CMOS technology

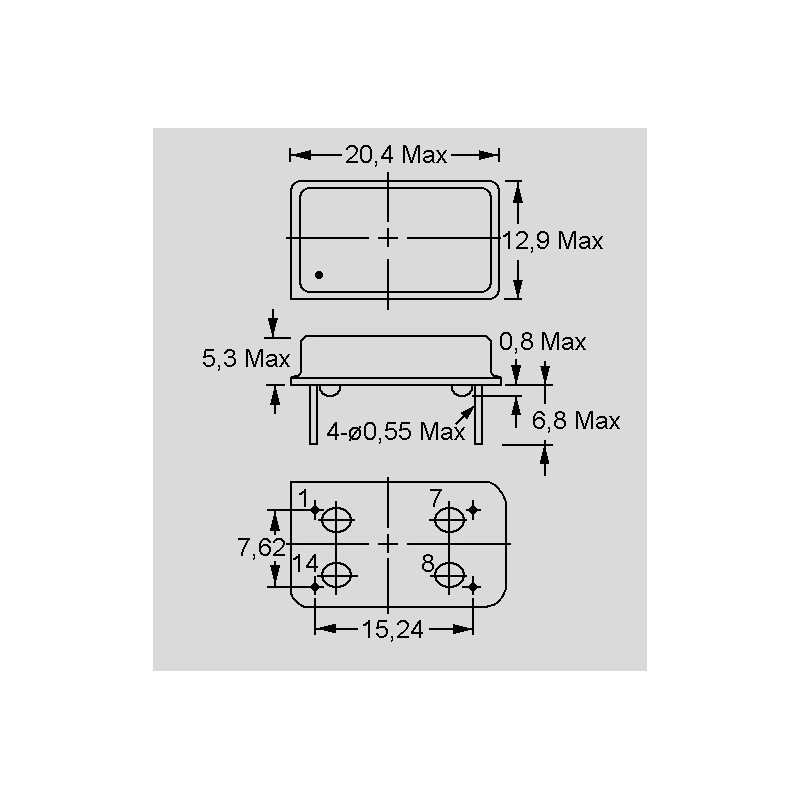

  • dimensions: 20,4x12,9x5,3mm
  • frequency: 16 to 40MHz

IO 31 TH 20 MHz

46197 IO 31 TH 20 MHz IO31020.000M5.0IA IO31020.000M5.0IA Red Frequency quartz oscillator series IO 31. quartz oscillators in a DIL14 housing made of metal suitable for CMOS technology dimensions: 20,4x12,9x5,3mm frequency: 16 to 40MHz

Specifications

manufacturer
Manufacturer's name IO31020.000M5.0IA
Case DIL14
Frequency [MHz] 20
Data Sheet

Unit price

0,323 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 500 units or
multiples of 500.
