IO 19 5 MHz

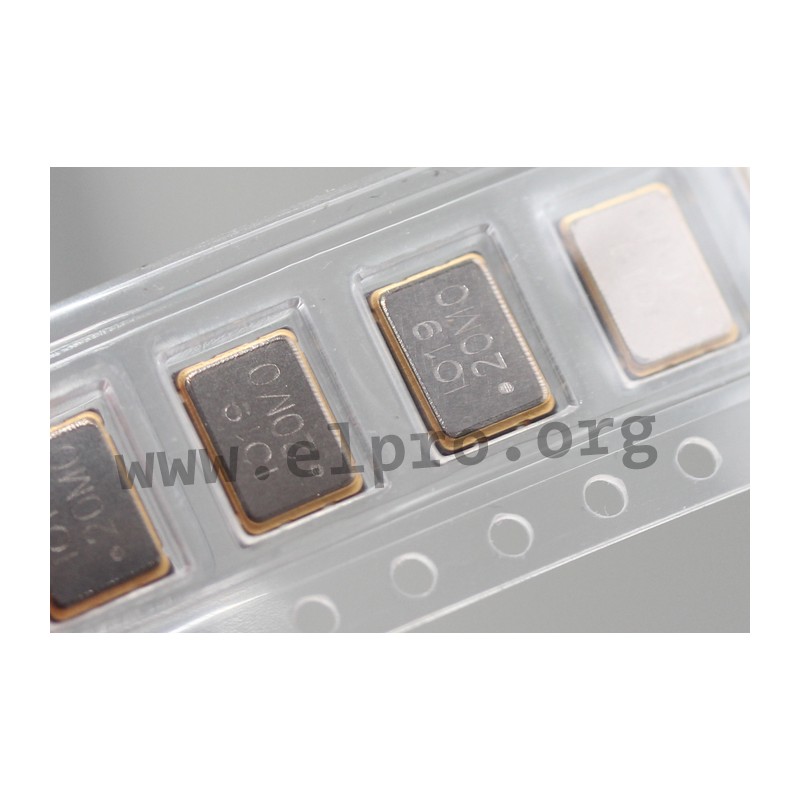

SMD crystal oscillators by Red Frequency

• in metal housing
• housing: 7.2x5.2x1.4mm
• by Red Frequency
• onsisting of piezoelectric resonator and oscillator circuit
• high reliability due to hermetically sealed metal housing
• tristate
• frequency range: 0.5 to 156 MHz
• frequency stability (up -20 to +70°C): ±50ppm
• operating temperature: up -20 to +70°C
• operating voltage (VDD): 3.3 Volt DC
• frequency: 5 to 100 MHz
• maximum current requirement: 8mA

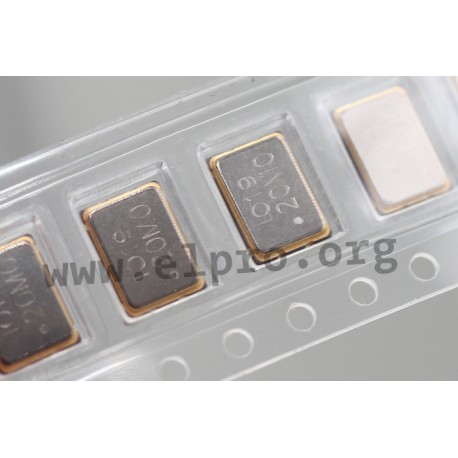

IO 19

IO 19 5 MHz

46224 IO 19 5 MHz IO19005.000M03.3EB IO19005.000M03.3EB SMD crystal oscillators by Red Frequency. • in metal housing• housing: 7.2x5.2x1.4mm• by Red Frequency• onsisting of piezoelectric resonator and oscillator circuit• high reliability due to hermetically sealed metal housing• tristate• frequency range: 0.5 to 156 MHz• frequency stability (up -20 to +70°C): ±50ppm• operating temperature: up -20 to +70°C• operating voltage (VDD): 3.3 Volt DC• frequency: 5 to 100 MHz• maximum current requirement: 8mA

Specifications

manufacturer
Manufacturer's name IO19005.000M03.3EB

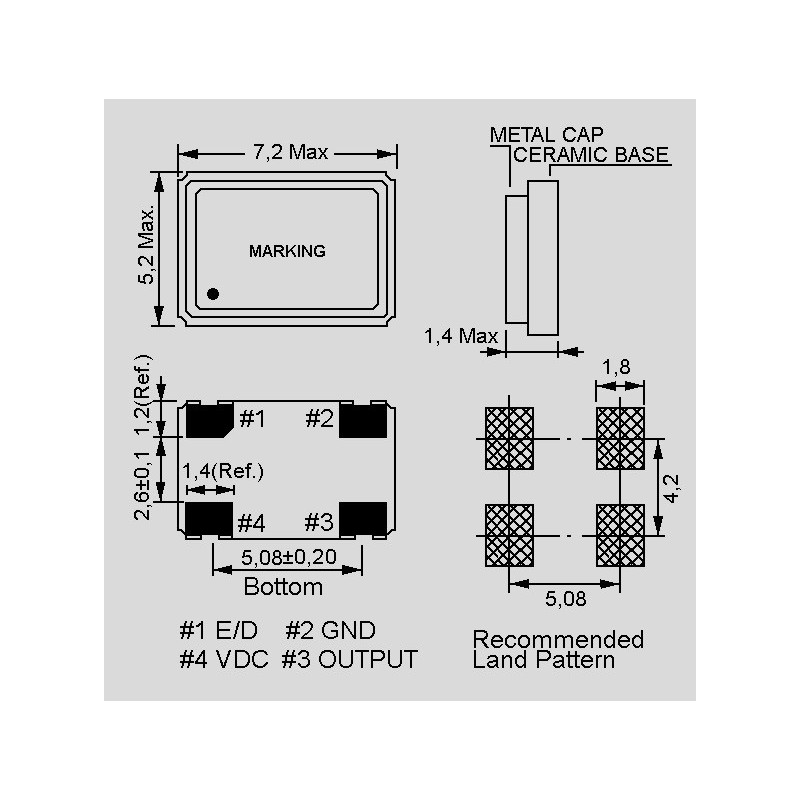

Case 7,2x5,2x1,4mm
Frequency [MHz] 5
Data Sheet

Unit price

0,238 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 500 units or
multiples of 500.
