IO 16 10 MHz

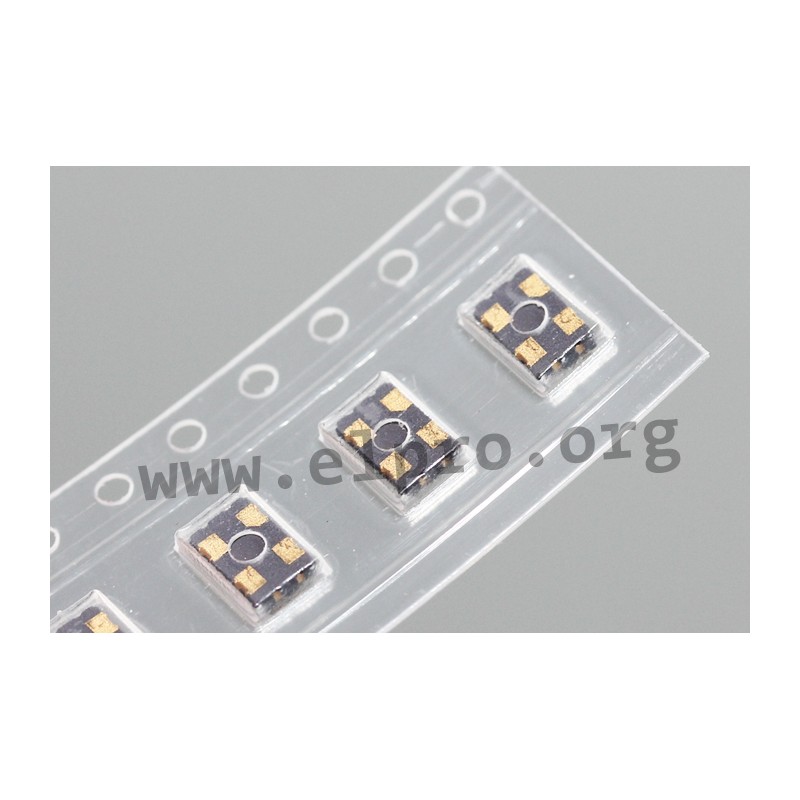

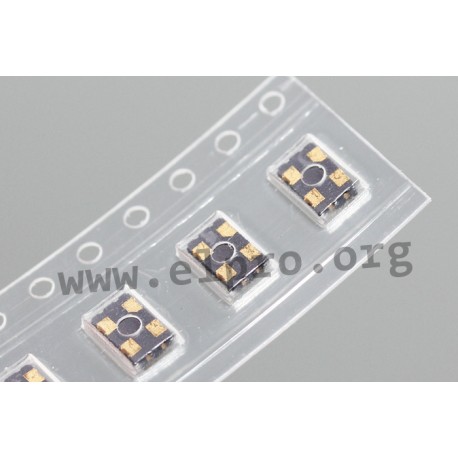

SMD crystal oscillators IO16 by Red Frequency

• frequency: 4 to 100 MHz

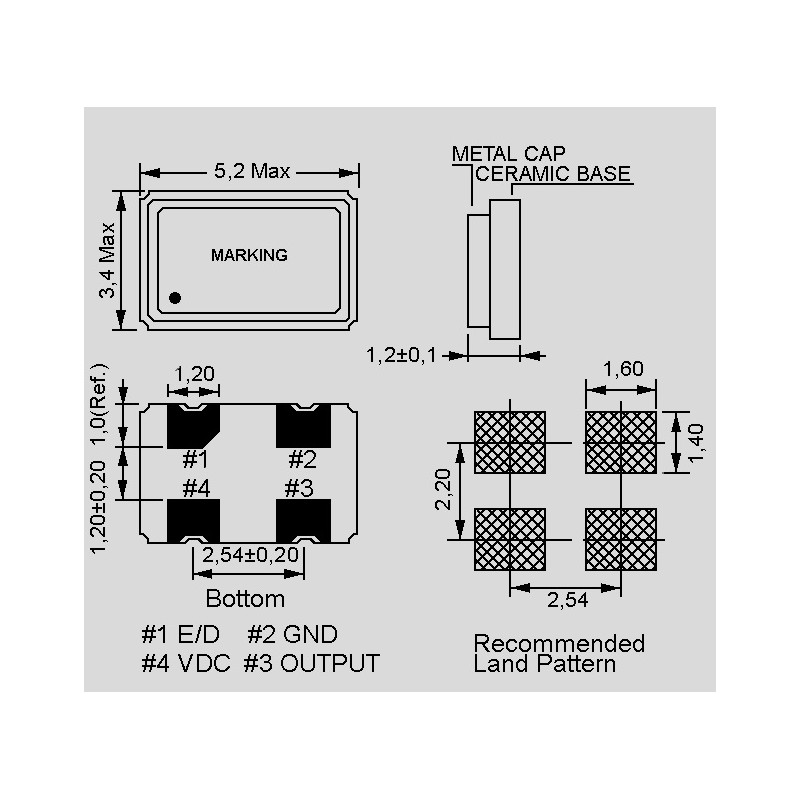

• in metal housing, 5.2x3.4x1.2mm
• consisting of piezoelectric resonator and oscillator circuit
• high reliability due to hermetically sealed metal housing
• tristate
• frequency stability (up -20 to +70°C): ±50ppm
• temperature range: up -20 to +70°C
• suitable for CMOS/TTL
• operating voltage (VDD): 5 Volt DC
• maximum current requirement
10 to 18.432 MHz: 15 mA
20 to 25 MHz: 25 mA
40 MHz: 35 mA

IO 16

IO 16 10 MHz

46218 IO 16 10 MHz IO16010.000M05.0EB IO16010.000M05.0EB SMD crystal oscillators IO16 by Red Frequency. • frequency: 4 to 100 MHz• in metal housing, 5.2x3.4x1.2mm• consisting of piezoelectric resonator and oscillator circuit• high reliability due to hermetically sealed metal housing• tristate• frequency stability (up -20 to +70°C): ±50ppm• temperature range: up -20 to +70°C• suitable for CMOS/TTL• operating voltage (VDD): 5 Volt DC• maximum current requirement10 to 18.432 MHz: 15 mA20 to 25 MHz: 25 mA40 MHz: 35 mA

Specifications

manufacturer
Manufacturer's name IO16010.000M05.0EB
Case 5,2 x 3,4 x 1,2 mm
Frequency [MHz] 10
Data Sheet

Unit price

0,959 €

Stock: 0
Further delivery:
CW 04/2025

Minimum order quantity 5 units or
multiples of 5.
