IO 14 100 MHz

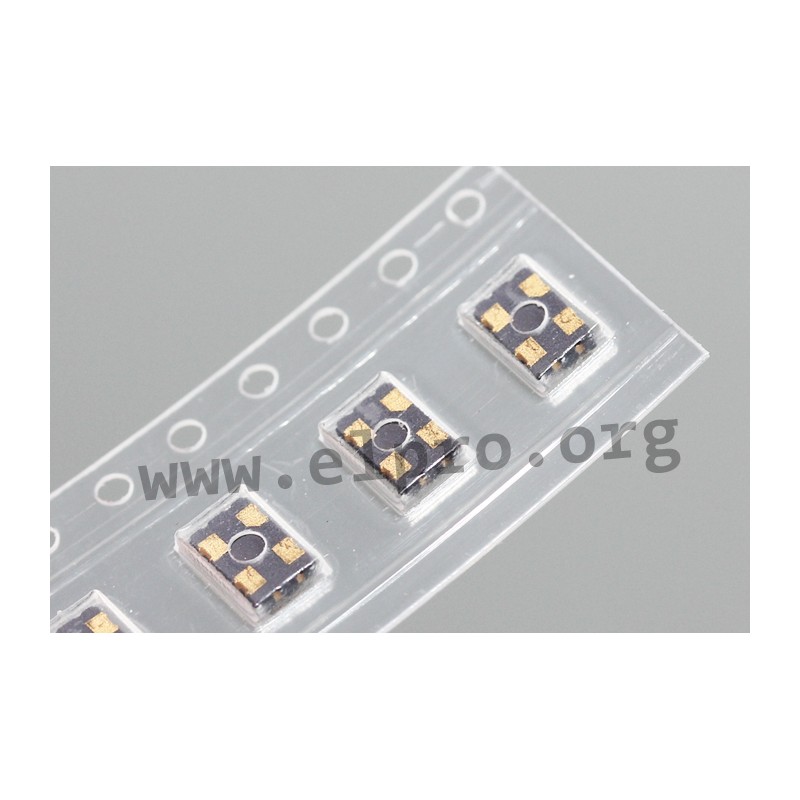

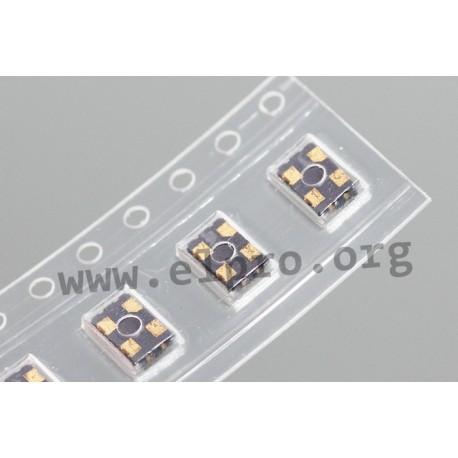

SMD crystal oscillators IO 14 by Red Frequency

• frequency: 4 to 100 MHz
• in metal housing, 5.2x3.4x1.2mm
• consisting of piezoelectric resonator and oscillator circuit
• high reliability due to hermetically sealed metal housing
• tristate
• frequency stability (up -20 to +70°C): ±50ppm
• temperature range: up -20 to +70°C
• suitable for CMOS
• operating voltage (VDD): 3.3 Volt DC
• maximum current requirement: 30 mA

IO 14

IO 14 100 MHz

46216 IO 14 100 MHz IO140100.000M03.3EB IO140100.000M03.3EB SMD crystal oscillators IO 14 by Red Frequency. • frequency: 4 to 100 MHz• in metal housing, 5.2x3.4x1.2mm• consisting of piezoelectric resonator and oscillator circuit• high reliability due to hermetically sealed metal housing• tristate• frequency stability (up -20 to +70°C): ±50ppm• temperature range: up -20 to +70°C• suitable for CMOS• operating voltage (VDD): 3.3 Volt DC• maximum current requirement: 30 mA

Specifications

manufacturer
Manufacturer's name IO140100.000...

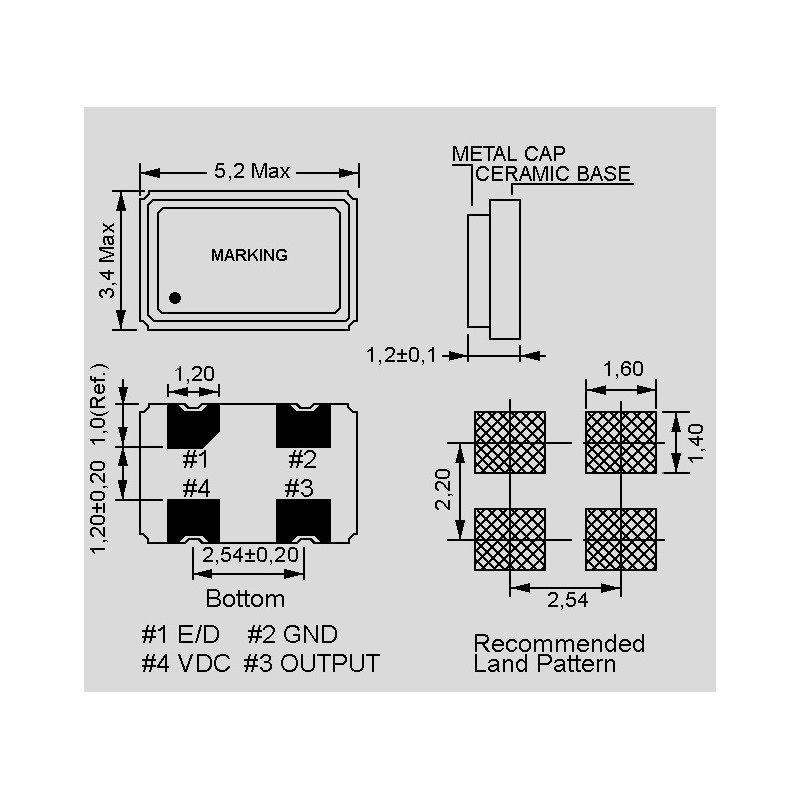

Case 5,2 x 3,4 x 1,2 mm
Frequency [MHz] 100
Data Sheet

Unit price

1,58 €

Stock: 0
Next incoming goods:
CW 06/2025
1000 units

Further delivery:
CW 09/2025

Minimum order quantity 5 units or
multiples of 5.
