IO 14 11,0592 MHz

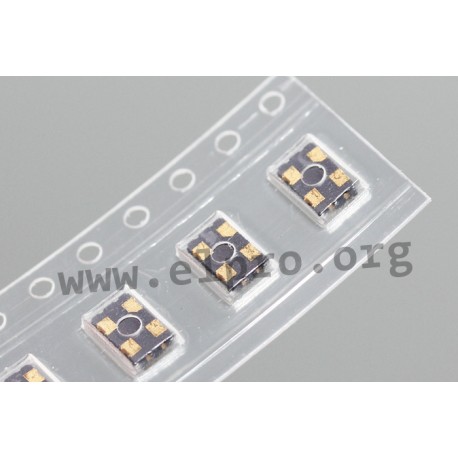

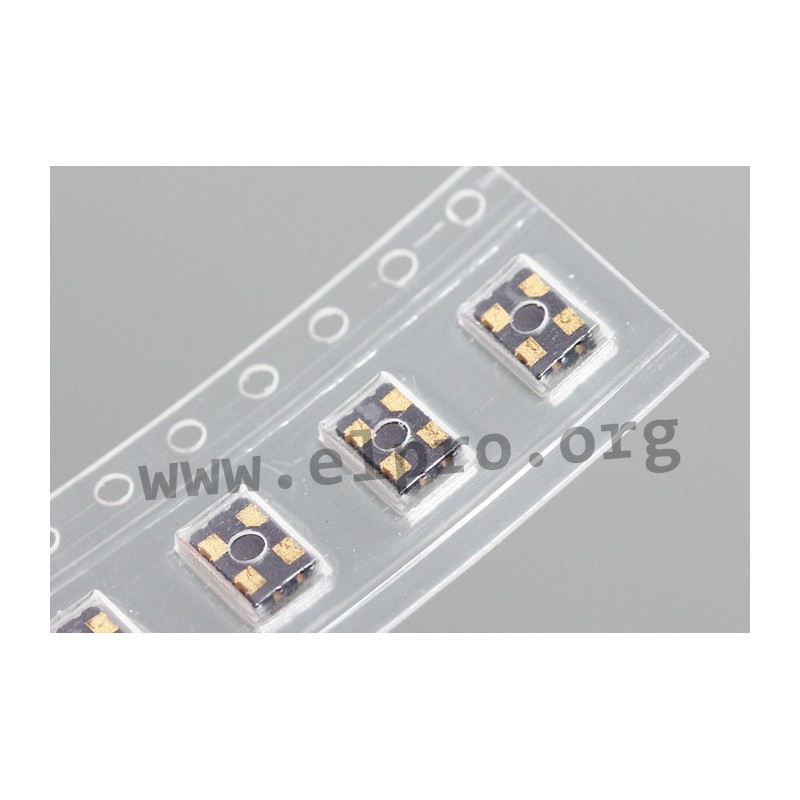

SMD crystal oscillators IO 14 by Red Frequency

• frequency: 4 to 100 MHz
• in metal housing, 5.2x3.4x1.2mm
• consisting of piezoelectric resonator and oscillator circuit
• high reliability due to hermetically sealed metal housing
• tristate
• frequency stability (up -20 to +70°C): ±50ppm
• temperature range: up -20 to +70°C
• suitable for CMOS
• operating voltage (VDD): 3.3 Volt DC
• maximum current requirement: 8 mA

IO 14

IO 14 11,0592 MHz

46213 IO 14 11,0592 MHz IO14011.0592M03.3EB IO14011.0592M03.3EB SMD crystal oscillators IO 14 by Red Frequency. • frequency: 4 to 100 MHz• in metal housing, 5.2x3.4x1.2mm• consisting of piezoelectric resonator and oscillator circuit• high reliability due to hermetically sealed metal housing• tristate• frequency stability (up -20 to +70°C): ±50ppm• temperature range: up -20 to +70°C• suitable for CMOS• operating voltage (VDD): 3.3 Volt DC• maximum current requirement: 8 mA

Specifications

manufacturer
Manufacturer's name IO14011.0592...

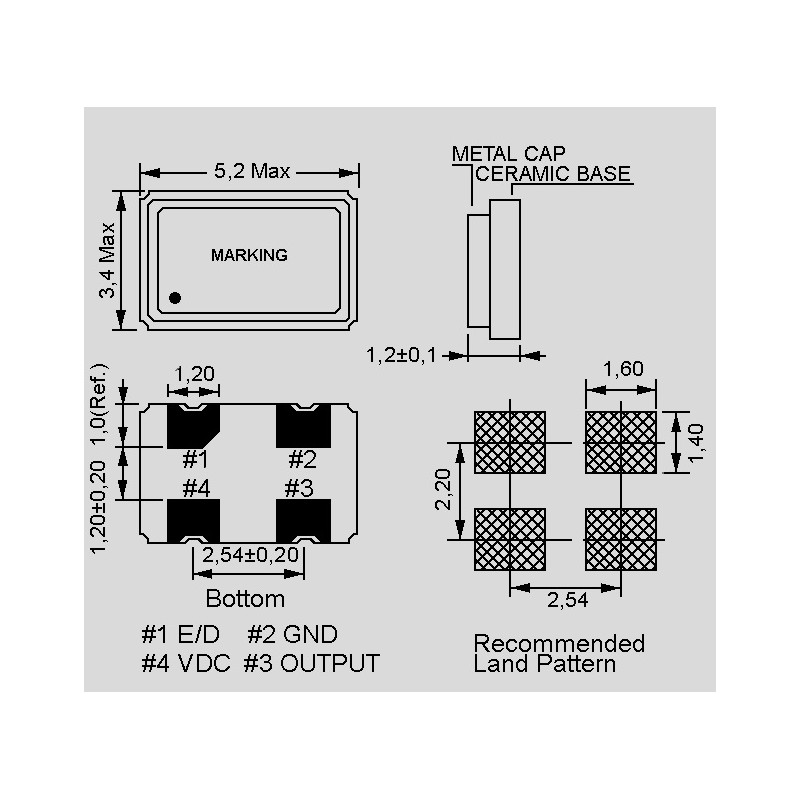

Case 5,2 x 3,4 x 1,2 mm
Frequency [MHz] 11,0592
Data Sheet

Unit price

0,238 €

Stock: 0
Further delivery:
CW 46/2024

Minimum order quantity 5 units or
multiples of 5.
