> Passive elements>Quartz crystals / oscillators>Quartz crystals>Red Frequency clock quartz crystals, 32,768 to 40kHz, IC26/IC27/IC28 series>IC 28 TH 32,768 kHz

Manufacturers

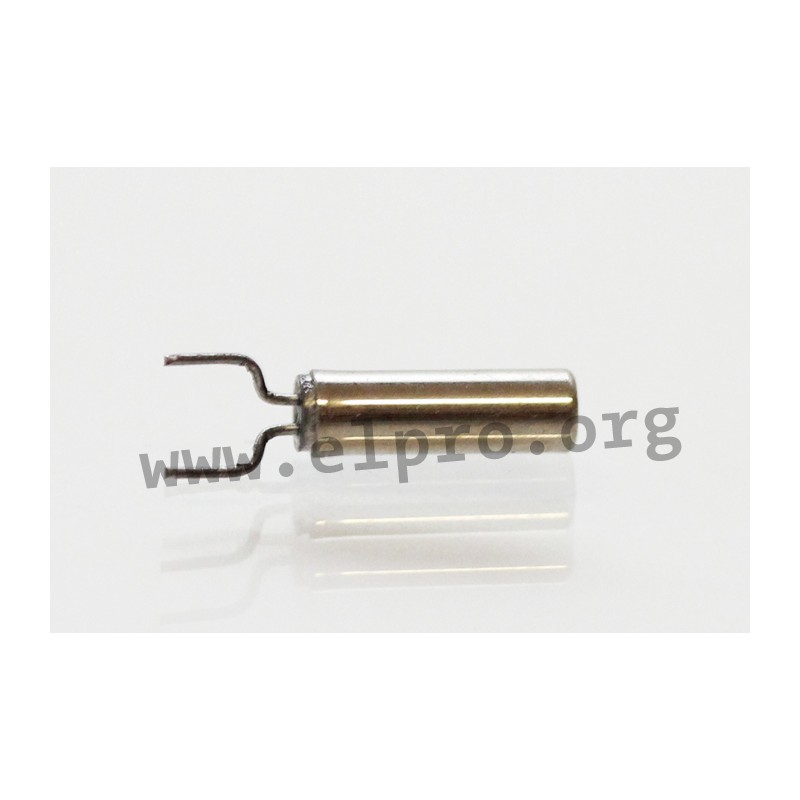

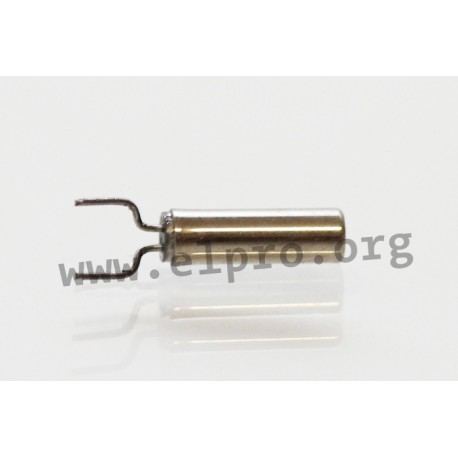

IC 28 TH 32,768 kHz

Red Frequency clock quartz crystal series IC26, IC27 and IC28

  • clock quartz crystals with a maxmial drive level of 1µW
  • aging (TU = 25°C, 1. year): ±3ppm/year
  • frequency: 32,768 to 40kHz
IC 28 TH 32,768 kHz

IC 28 TH 32,768 kHz

46010 IC 28 TH 32,768 kHz IC28032.768K12.5CI1B IC28032.768K12.5CI1B Red Frequency clock quartz crystal series IC26, IC27 and IC28. clock quartz crystals with a maxmial drive level of 1µW aging (TU = 25°C, 1. year): ±3ppm/year frequency: 32,768 to 40kHz

Specifications

manufacturer
Manufacturer's name IC28032.768K...

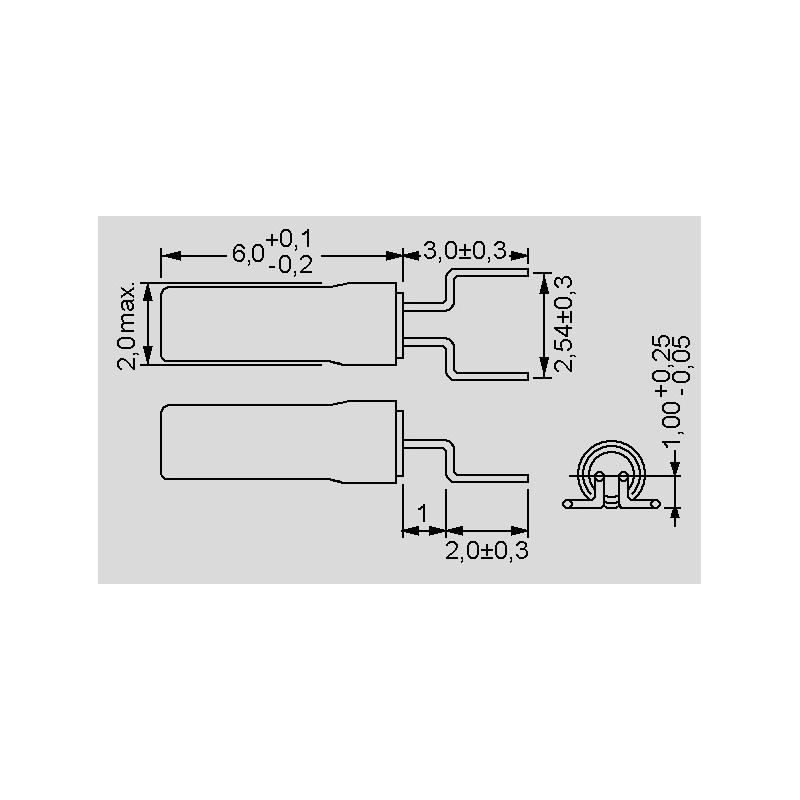

Case 2x6mm
Operating temperature range [°C] -20...+70
Load capacitance [pF] 12,5
Frequency tolerance [ppm] ±20ppm
Frequency [kHz] 32,768
Data Sheet

Unit price

0,274 €

Stock: 900
Further delivery:
CW 04/2025

Minimum order quantity 10 units or
multiples of 10.
