IC 27 TH 32,768 kHz

Red Frequency clock quartz crystal series IC26, IC27 and IC28

  • clock quartz crystals with a maxmial drive level of 1µW
  • aging (TU = 25°C, 1. year): ±3ppm/year
  • frequency: 32,768 to 40kHz

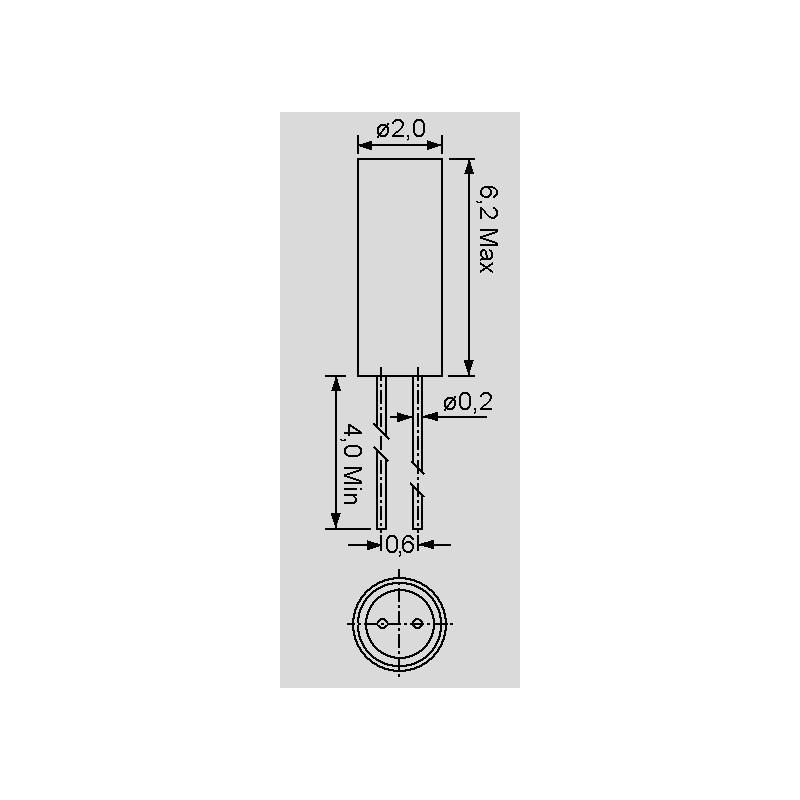

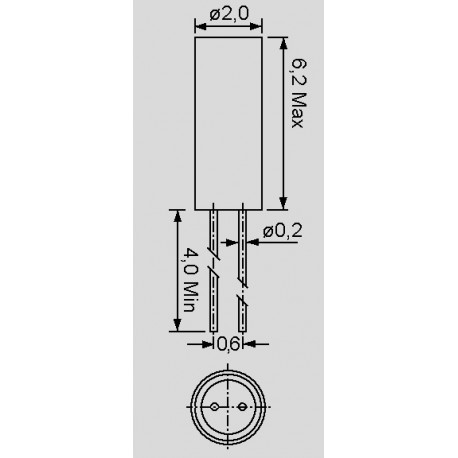

dimensions

IC 27 TH 32,768 kHz

46008 IC 27 TH 32,768 kHz IC27032.768K12.5BH1C IC27032.768K12.5BH1C Red Frequency clock quartz crystal series IC26, IC27 and IC28. clock quartz crystals with a maxmial drive level of 1µW aging (TU = 25°C, 1. year): ±3ppm/year frequency: 32,768 to 40kHz

Specifications

manufacturer
Manufacturer's name IC27032.768K...
Case 2x6,2mm
Operating temperature range [°C] -10...+60
Load capacitance [pF] 12,5
Frequency tolerance [ppm] ±15ppm
Frequency [kHz] 32,768
Data Sheet

Unit price

0,116 €

Stock: 1260
Further delivery:
CW 04/2025

Minimum order quantity 10 units or
multiples of 10.
