IC 26 TH 32,768 kHz

Red Frequency clock quartz crystal series IC26, IC27 and IC28

  • clock quartz crystals with a maxmial drive level of 1µW
  • aging (TU = 25°C, 1. year): ±3ppm/year
  • frequency: 32,768 to 40kHz

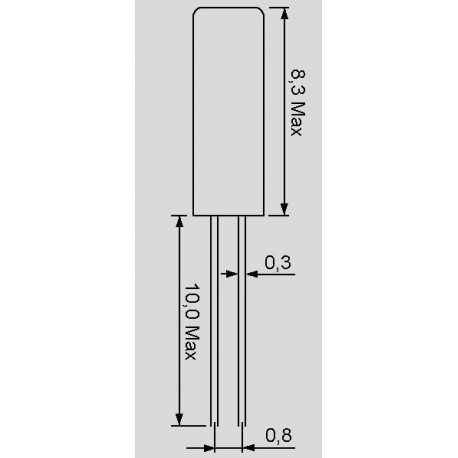

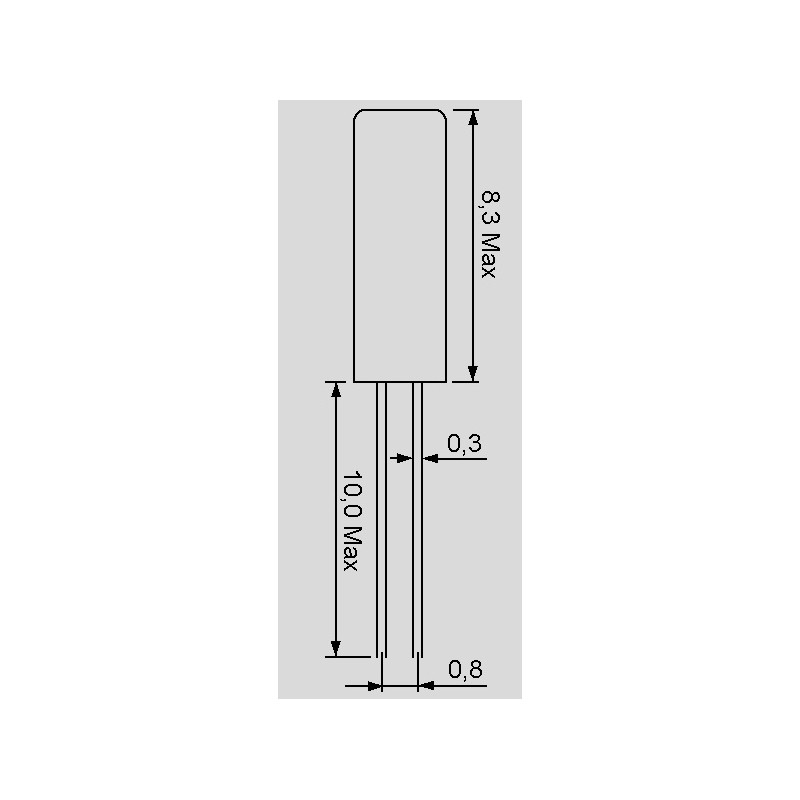

dimensions

IC 26 TH 32,768 kHz

46006 IC 26 TH 32,768 kHz IC26032.768K12.5AH1C IC26032.768K12.5AH1C Red Frequency clock quartz crystal series IC26, IC27 and IC28. clock quartz crystals with a maxmial drive level of 1µW aging (TU = 25°C, 1. year): ±3ppm/year frequency: 32,768 to 40kHz

Specifications

manufacturer
Manufacturer's name IC26032.768K...
Case 3x8,3mm
Operating temperature range [°C] -10...+60
Load capacitance [pF] 12,5
Frequency tolerance [ppm] ±10ppm
Frequency [kHz] 32,768
Data Sheet

Unit price

0,124 €

Stock: 2910
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
