> Passive elements>Quartz crystals / oscillators>Quartz crystals>Red Frequency quartz crystals, HC 49 U standard housing, IC 25 series>IC 25 TH 2,4576 MHz

Manufacturers

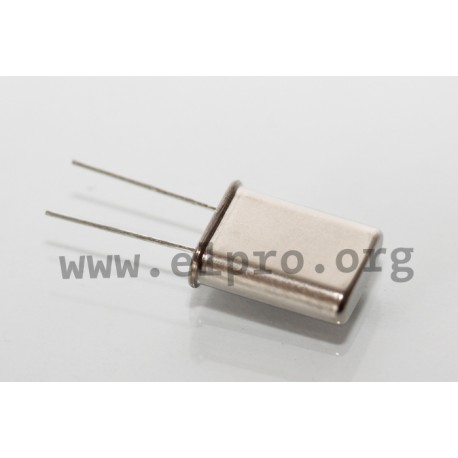

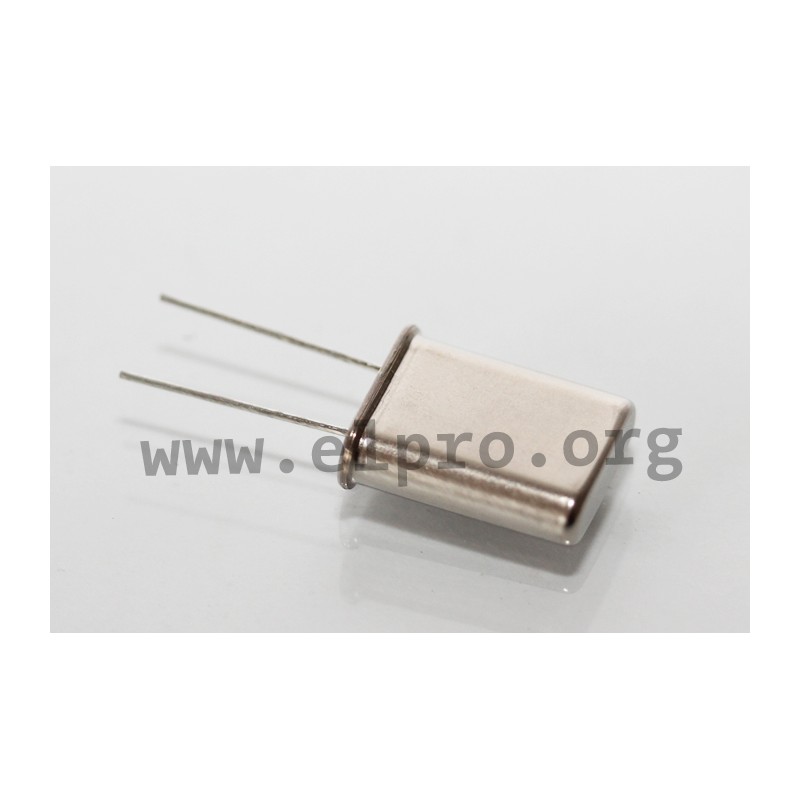

IC 25 TH 2,4576 MHz

Red Frequency quartz crystal series IC 25

  • quartz crystals in an HC 49 U housing
  • wired
  • suitable for thru-hole mounting
  • maximal drive level: 500µW
  • aging (25°C, 1. year): ±3ppm/year
  • dimensions: 11x4,6x13,5mm
IC 25 TH

IC 25 TH 2,4576 MHz

46058 IC 25 TH 2,4576 MHz IC2502.4576M30.0EE1C IC2502.4576M30.0EE1C Red Frequency quartz crystal series IC 25. quartz crystals in an HC 49 U housing wired suitable for thru-hole mounting maximal drive level: 500µW aging (25°C, 1. year): ±3ppm/year dimensions: 11x4,6x13,5mm

Specifications

manufacturer
Manufacturer's name IC2502.4576M...
Case HC 49/U
Frequency tolerance [ppm] 30
Frequency [MHz] 2,4576
Equivalent series resistance, max. [Ω] 300
Capacity [pF] 30
Data Sheet

Unit price

0,745 €

Stock: 0
Next incoming goods:
CW 03/2025
560 units

Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
