IC 24 TH 32 MHz

Red Frequency quartz crystal series IC 24

  • quartz crystals in an HC 49/U-S housing
  • suitable for through-hole mounting
  • maximal shunt capacitance: 7pF
  • maximal drive level: 500µW
  • aging (25°C, 1. year): ±3ppm/year
  • wired

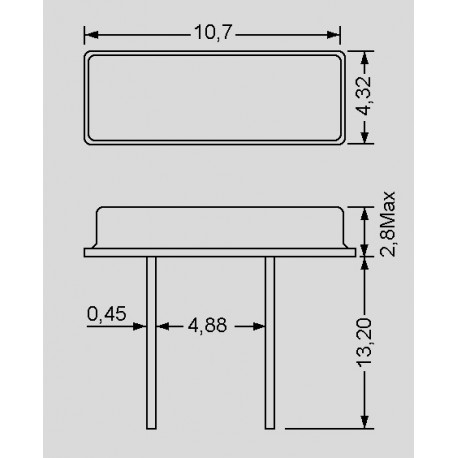

  • dimensions: 10,7x4,3x2,8mm
  • operating temperature: -20 to +70°C
IC 24 TH 32 MHz

IC 24 TH 32 MHz

46054 IC 24 TH 32 MHz IC24032.000M30.0ED1B IC24032.000M30.0ED1B Red Frequency quartz crystal series IC 24. quartz crystals in an HC 49/U-S housing suitable for through-hole mounting maximal shunt capacitance: 7pF maximal drive level: 500µW aging (25°C, 1. year): ±3ppm/year wired dimensions: 10,7x4,3x2,8mm operating temperature: -20 to +70°C

Specifications

manufacturer
Manufacturer's name IC24032.000M...
Case HC 49/U-S
Frequency [MHz] 32
Equivalent series resistance, max. [Ω] 30
Capacity [pF] 30
Data Sheet

Unit price

0,144 €

Stock: 0
Further delivery:
CW 04/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
