IC 22 32 MHz

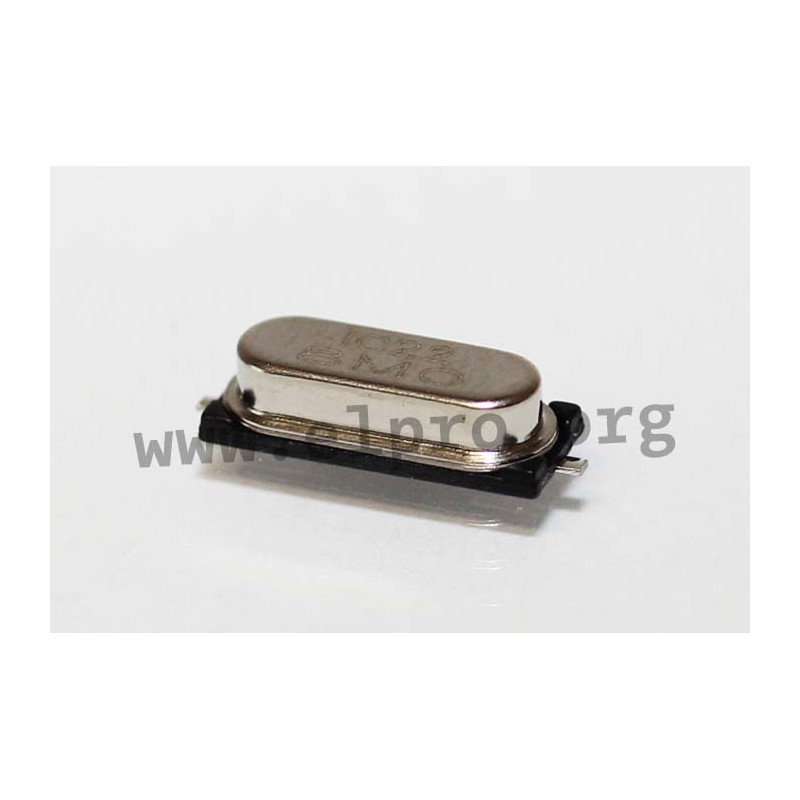

Red Frequency quartz crystal series IC 22

  • quartz crystals in an HC 49 S4 SMD metal housing
  • suitable for direct PCB mounting
  • maximal shunt capacitance: 7pF
  • aging (25°C): ±3ppm/year
  • operating temperature: -10 to +70°C

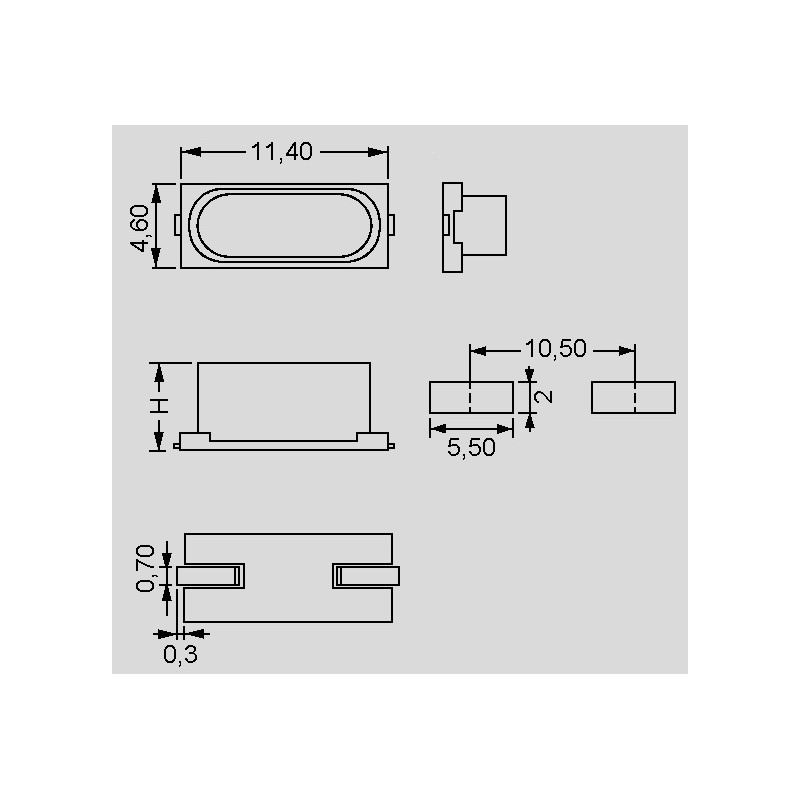

  • dimensions: 11,4x4,6x3,3mm
  • frequency: 4 to 25MHz

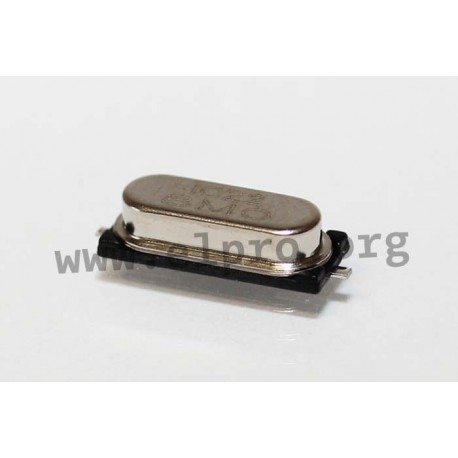

IC 22

IC 22 32 MHz

46150 IC 22 32 MHz IC22032.000M30.0ED1B IC22032.000M30.0ED1B Red Frequency quartz crystal series IC 22. quartz crystals in an HC 49 S4 SMD metal housing suitable for direct PCB mounting maximal shunt capacitance: 7pF aging (25°C): ±3ppm/year operating temperature: -10 to +70°C dimensions: 11,4x4,6x3,3mm frequency: 4 to 25MHz

Specifications

manufacturer
Manufacturer's name IC22032.000M...
Case HC49/S4
Load capacitance [pF] 30
Equivalent series resistance, max. [Ω] 30
Frequency [MHz] 32
Frequency tolerance [ppm] ±30
Data Sheet

Unit price

0,154 €

Stock: 9
Further delivery:
CW 08/2025

Minimum order quantity 1 to 9 units or multiples of 500 plus 0 to 9 .
