IC 22 10 MHz

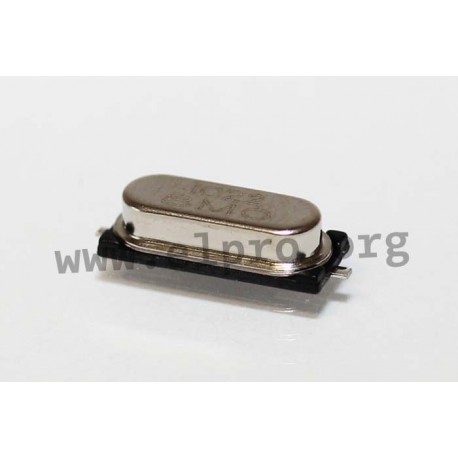

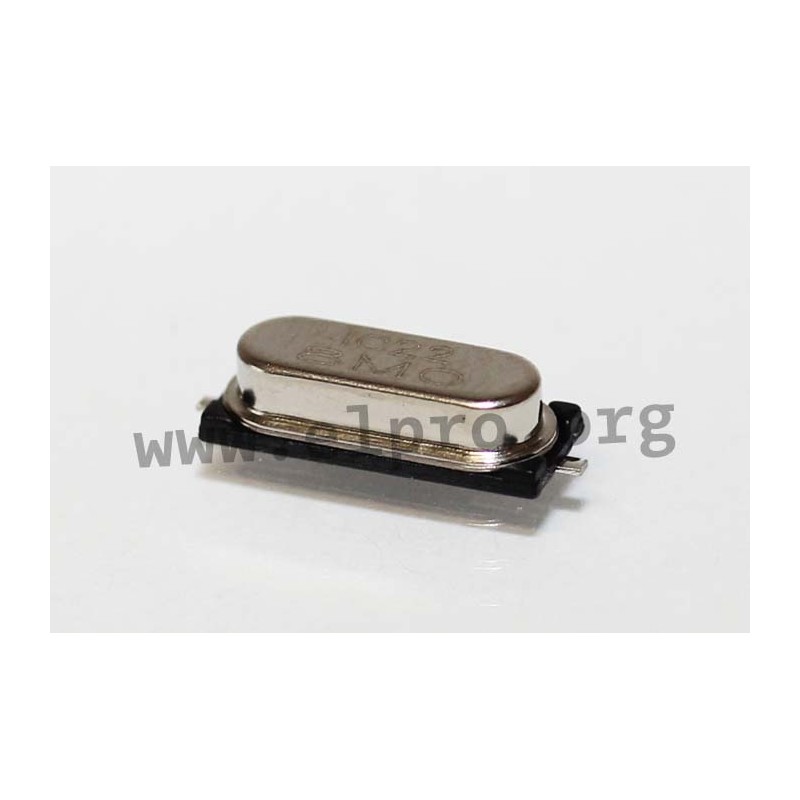

Red Frequency quartz crystal series IC 22

  • quartz crystals in an HC 49 S4 SMD metal housing
  • suitable for direct PCB mounting
  • maximal shunt capacitance: 7pF
  • aging (25°C): ±3ppm/year
  • operating temperature: -10 to +70°C

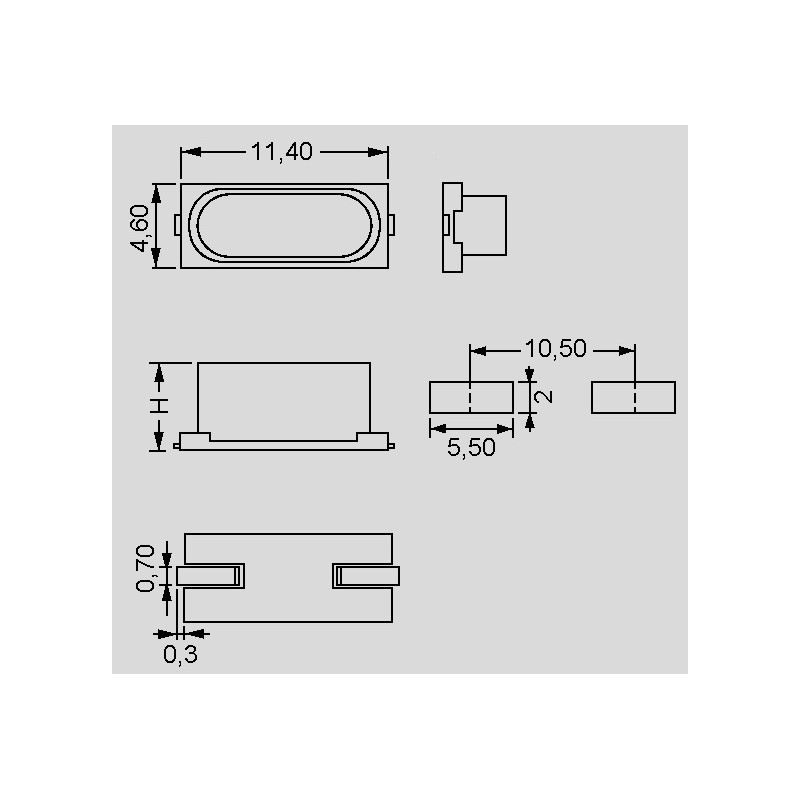

  • dimensions: 11,4x4,6x3,3mm
  • frequency: 4 to 25MHz
IC 22

IC 22 10 MHz

46142 IC 22 10 MHz IC22010.000M20.0CE1B IC22010.000M20.0CE1B Red Frequency quartz crystal series IC 22. quartz crystals in an HC 49 S4 SMD metal housing suitable for direct PCB mounting maximal shunt capacitance: 7pF aging (25°C): ±3ppm/year operating temperature: -10 to +70°C dimensions: 11,4x4,6x3,3mm frequency: 4 to 25MHz

Specifications

manufacturer
Manufacturer's name IC22010.000M...
Case HC49/S4
Load capacitance [pF] 20
Frequency [MHz] 10
Equivalent series resistance, max. [Ω] 60
Frequency tolerance [ppm] ±20
Data Sheet

Unit price

0,167 €

Stock: 790
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
