IC 22 4 MHz

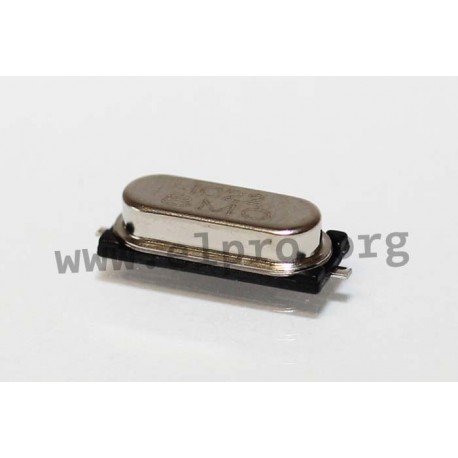

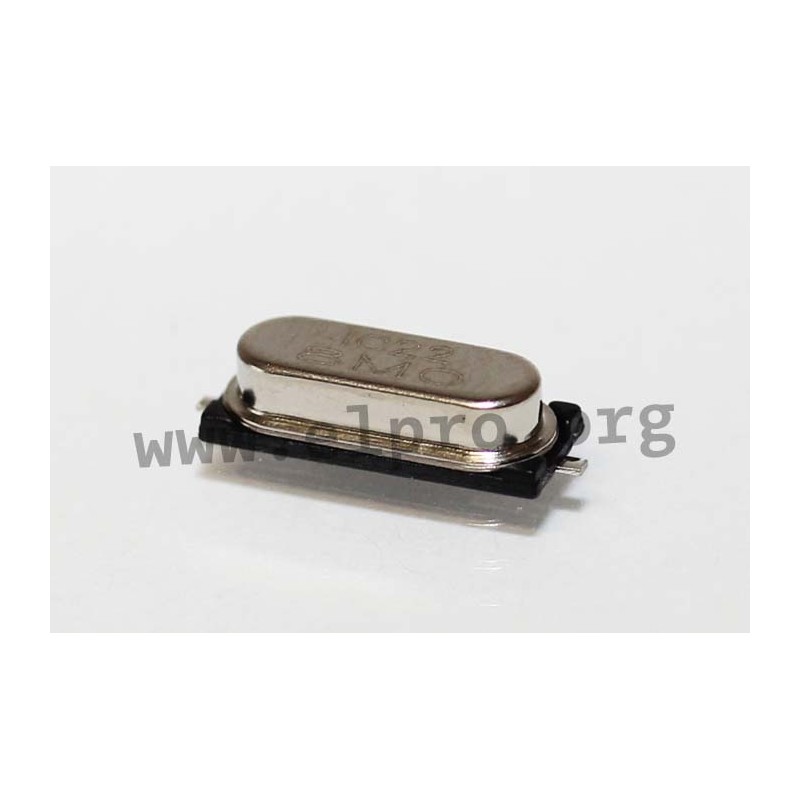

Red Frequency quartz crystal series IC 22

  • quartz crystals in an HC 49 S4 SMD metal housing
  • suitable for direct PCB mounting
  • maximal shunt capacitance: 7pF
  • aging (25°C): ±3ppm/year
  • operating temperature: -10 to +70°C

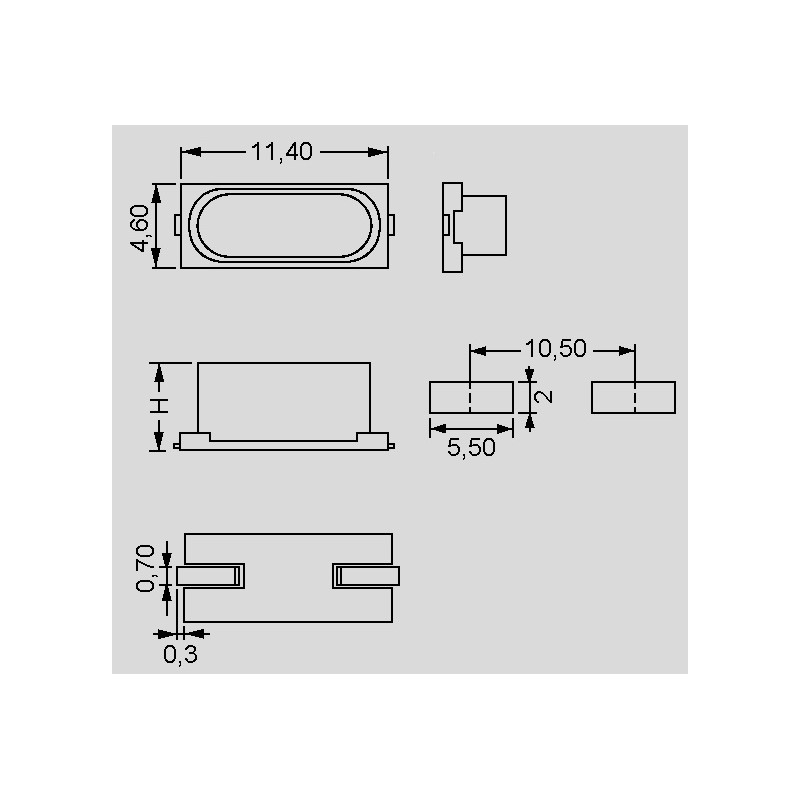

  • dimensions: 11,4x4,6x3,3mm
  • frequency: 4 to 25MHz
IC 22

IC 22 4 MHz

46140 IC 22 4 MHz IC22004.000M20.0CE1B IC22004.000M20.0CE1B Red Frequency quartz crystal series IC 22. quartz crystals in an HC 49 S4 SMD metal housing suitable for direct PCB mounting maximal shunt capacitance: 7pF aging (25°C): ±3ppm/year operating temperature: -10 to +70°C dimensions: 11,4x4,6x3,3mm frequency: 4 to 25MHz

Specifications

manufacturer
Manufacturer's name IC22004.000M...
Case HC49/S4
Load capacitance [pF] 20
Frequency [MHz] 4
Equivalent series resistance, max. [Ω] 150
Frequency tolerance [ppm] ±20
Data Sheet

Unit price

0,167 €

Stock: 1000
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
