IC21-9.8304M-AF-30/30-80R-30P

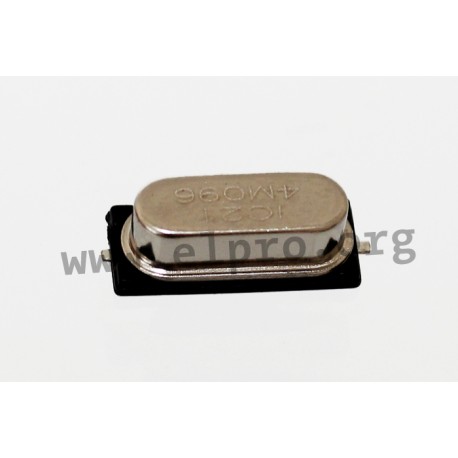

Red Frequency quartz crystal series IC 21

  • quartz crystals in an HC 49 S4 SMD housing
  • suitable for direct PCB mounting
  • maximal shunt capacitance: 7pF
  • maximal drive level: 1mW
  • aging: ±3ppm/Jahr
  • frequency: 3,579 to 32MHz
IC21

IC21-9.8304M-AF-30/30-80R-30P

43250 IC21-9.8304M-AF-30/30-80R-30P IC2109.8304M30.0EE1B IC2109.8304M30.0EE1B Red Frequency quartz crystal series IC 21. quartz crystals in an HC 49 S4 SMD housing suitable for direct PCB mounting maximal shunt capacitance: 7pF maximal drive level: 1mW aging: ±3ppm/Jahr frequency: 3,579 to 32MHz

Specifications

manufacturer
Manufacturer's name IC2109.8304M...
Case HC49/S4
Load capacitance [pF] 30
Frequency [MHz] 9,8304
Equivalent series resistance, max. [Ω] 80
Frequency tolerance [ppm] ±30
Data Sheet

Unit price

0,174 €

Stock: 630
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
