IC 16 18,432 MHz

SMD quartz crystals

* frequency: 10 to 18.432 MHz

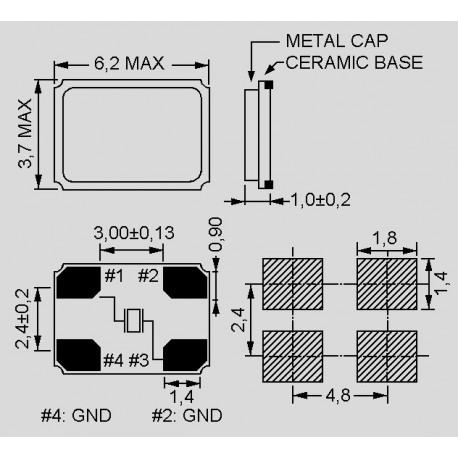

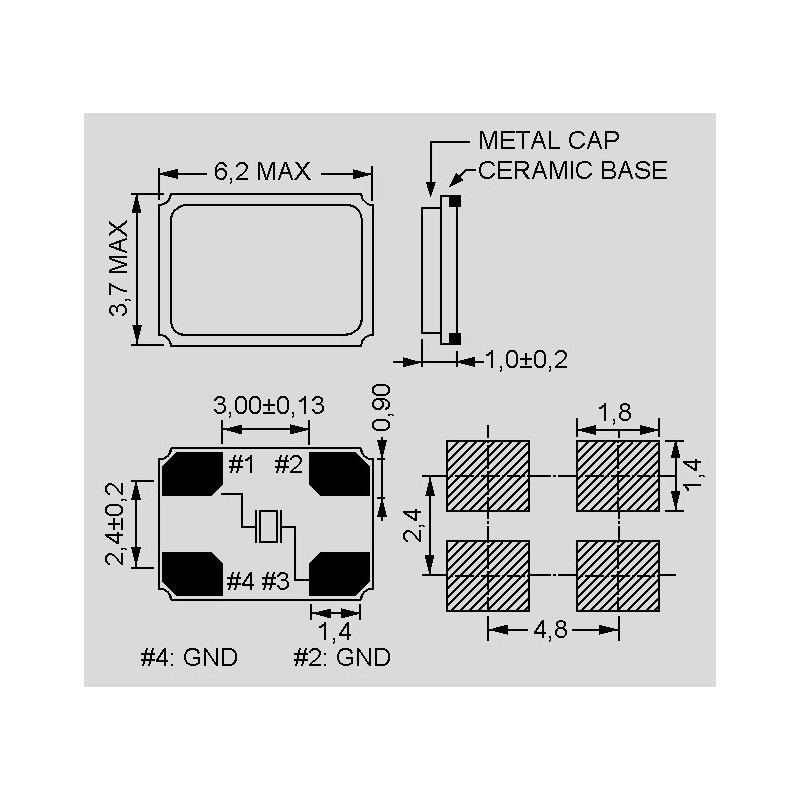

* housing: 6.2x3.7x1.2mm
* operating temperature: up -20 to +70°C
* frequency tolerance (25°C): ±20ppm
* frequency stability (up -20 to +70°C): ±30ppm
* maximum shunt capacitance: 5pF
* aging (25°C): ±2ppm/year

IC 16 18,432 MHz

46135 IC 16 18,432 MHz IC16018.432M20.0CE1B IC16018.432M20.0CE1B SMD quartz crystals. * frequency: 10 to 18.432 MHz* housing: 6.2x3.7x1.2mm* operating temperature: up -20 to +70°C* frequency tolerance (25°C): ±20ppm* frequency stability (up -20 to +70°C): ±30ppm* maximum shunt capacitance: 5pF* aging (25°C): ±2ppm/year

Specifications

manufacturer
Manufacturer's name IC16018.432M...
Equivalent series resistance, max. [Ω] 50
Frequency [MHz] 18,432
Capacity [pF] 20
Data Sheet

Unit price

0,423 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
