IC 16 10 MHz

SMD quartz crystals

* frequency: 10 to 18.432 MHz

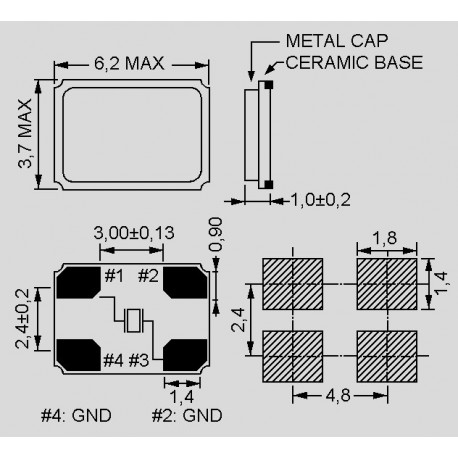

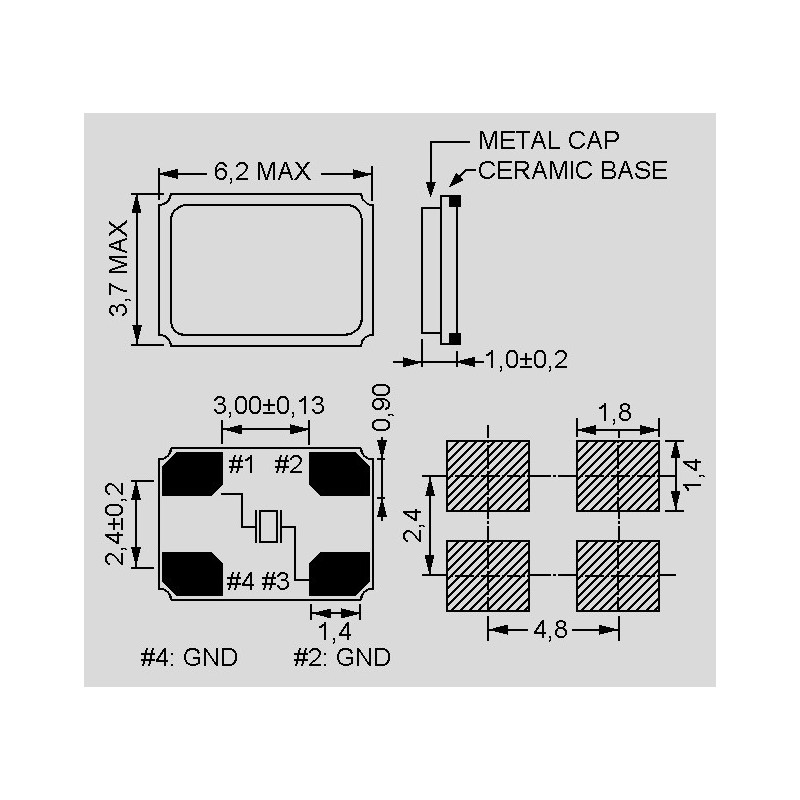

* housing: 6.2x3.7x1.2mm
* operating temperature: up -20 to +70°C
* frequency tolerance (25°C): ±20ppm
* frequency stability (up -20 to +70°C): ±30ppm
* maximum shunt capacitance: 5pF
* aging (25°C): ±2ppm/year

IC 16 10 MHz

46134 IC 16 10 MHz IC16010.000M20.0CE1B IC16010.000M20.0CE1B SMD quartz crystals. * frequency: 10 to 18.432 MHz* housing: 6.2x3.7x1.2mm* operating temperature: up -20 to +70°C* frequency tolerance (25°C): ±20ppm* frequency stability (up -20 to +70°C): ±30ppm* maximum shunt capacitance: 5pF* aging (25°C): ±2ppm/year

Specifications

manufacturer
Manufacturer's name IC16010.000M...
Equivalent series resistance, max. [Ω] 80
Frequency [MHz] 10
Capacity [pF] 20
Data Sheet

Unit price

0,627 €

Stock: 770
Further delivery:
CW 08/2025

Minimum order quantity 5 units or
multiples of 5.
