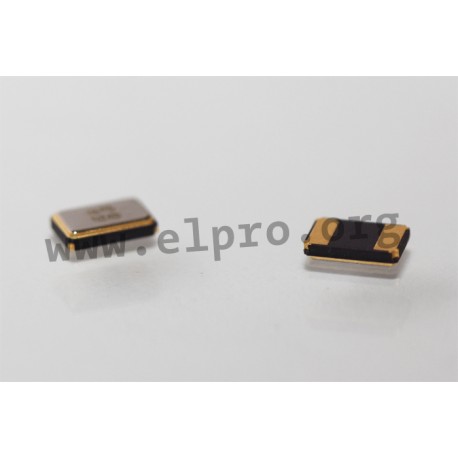

IC 15 M48 48 MHz

SMD quartz crystals IC15 by Red Frequency

* frequency: 8 to 40 MHz
* housing: 5.2x3.4x1.1 mm
* shunt capacitance, max.: 5 pF
* aging (25°C): ±2 ppm/year
* operating temperature: up -20 to +70°C
Series IC 15 by Red Frequency

IC 15 M48 48 MHz

46132 IC 15 M48 48 MHz IC15048.000M18.0CE1B IC15048.000M18.0CE1B SMD quartz crystals IC15 by Red Frequency. * frequency: 8 to 40 MHz* housing: 5.2x3.4x1.1 mm* shunt capacitance, max.: 5 pF* aging (25°C): ±2 ppm/year* operating temperature: up -20 to +70°C

Specifications

manufacturer
Manufacturer's name IC15048.000M...
Case 5,2 x 3,4 x 1,1 mm
Frequency tolerance [ppm] 20
Load capacitance [pF] 18
Equivalent series resistance, max. [Ω] 40
Frequency [MHz] 48

Unit price

0,455 €

Stock: 0
Further delivery:
CW 46/2024

Minimum order quantity 500 units or
multiples of 500.
