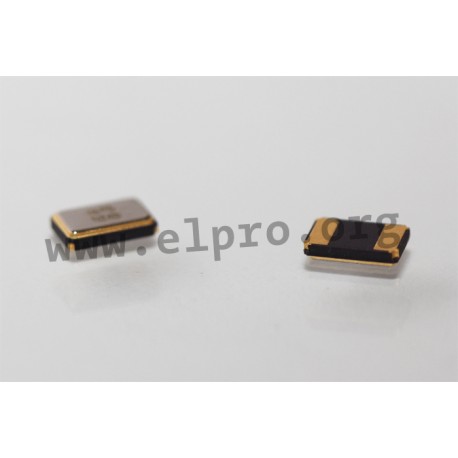

IC 15 M24 24 MHz

SMD quartz crystals IC15 by Red Frequency

* frequency: 8 to 40 MHz
* housing: 5.2x3.4x1.1 mm
* shunt capacitance, max.: 5 pF
* aging (25°C): ±2 ppm/year
* operating temperature: up -20 to +70°C
IC 15 M24 24 MHz

IC 15 M24 24 MHz

41687 IC 15 M24 24 MHz IC15024.000M12.0EF1B IC15024.000M12.0EF1B SMD quartz crystals IC15 by Red Frequency. * frequency: 8 to 40 MHz* housing: 5.2x3.4x1.1 mm* shunt capacitance, max.: 5 pF* aging (25°C): ±2 ppm/year* operating temperature: up -20 to +70°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name IC15024.000M...
Case 5,2 x 3,4 x 1,1 mm
Frequency tolerance [ppm] 30
Load capacitance [pF] 12
Equivalent series resistance, max. [Ω] 60
Frequency [MHz] 24
Data Sheet

Unit price

0,546 €

Stock: 500

Minimum order quantity 500 units or
multiples of 500.
