IC 14 M24.576 24,576 MHz

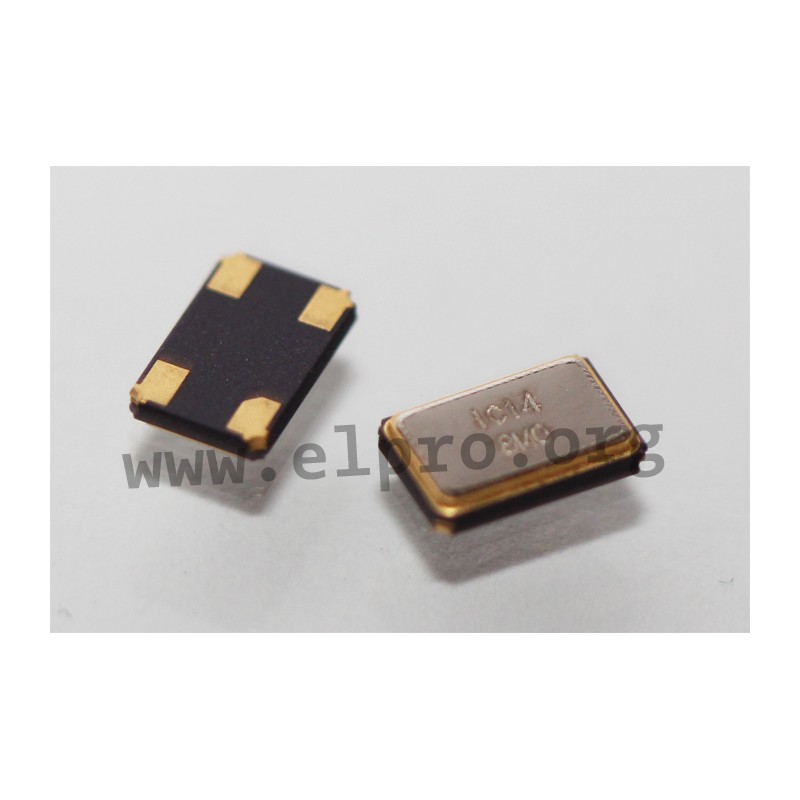

SMD quartz crystals IC14 by Red Frequency

* frequency: 8 to 12 MHz
* housing: 5.2x3.4x1 mm
* shunt capacitance, max.: 5 pF
* aging (25°C): ±2 ppm/year
* operating temperature: up -20 to +70°C

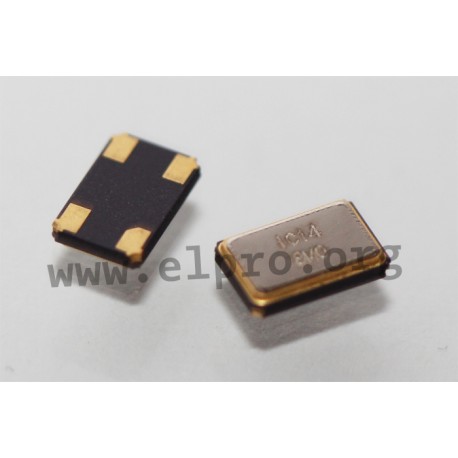

Series IC 14 by Red Frequency

IC 14 M24.576 24,576 MHz

46123 IC 14 M24.576 24,576 MHz IC14024.576M20.0CE1B IC14024.576M20.0CE1B SMD quartz crystals IC14 by Red Frequency. * frequency: 8 to 12 MHz* housing: 5.2x3.4x1 mm* shunt capacitance, max.: 5 pF* aging (25°C): ±2 ppm/year* operating temperature: up -20 to +70°C

Specifications

manufacturer
Manufacturer's name IC14024.576M...

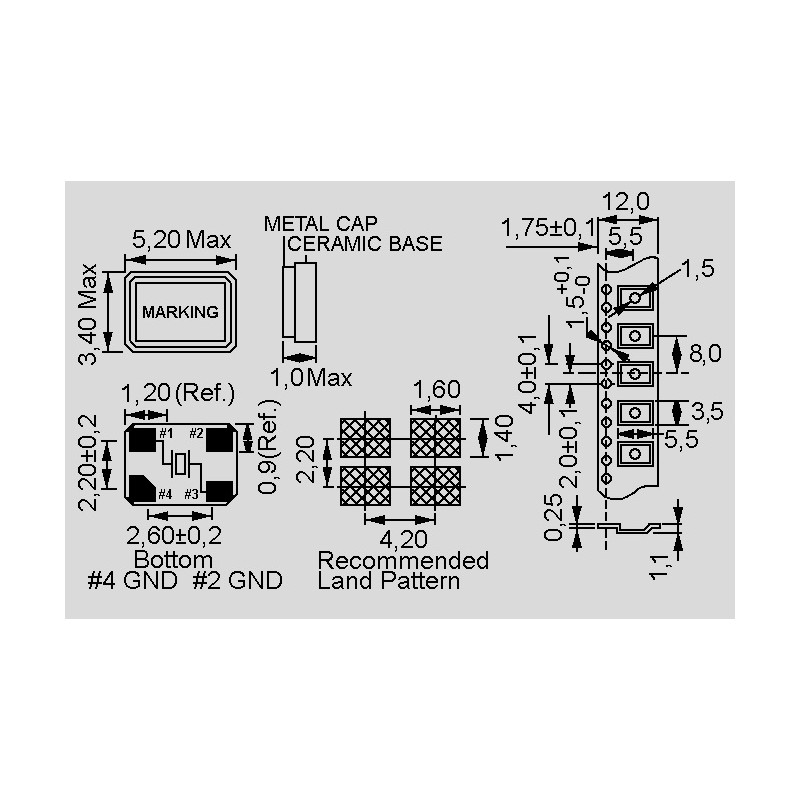

Case 5,2 x 3,4 x 1 mm
Frequency tolerance [ppm] 20
Load capacitance [pF] 20
Equivalent series resistance, max. [Ω] 60
Frequency [MHz] 24,576

Unit price

0,481 €

Stock: 0
Further delivery:
CW 04/2025

Minimum order quantity 500 units or
multiples of 500.
