IC 14 M16 16 MHz

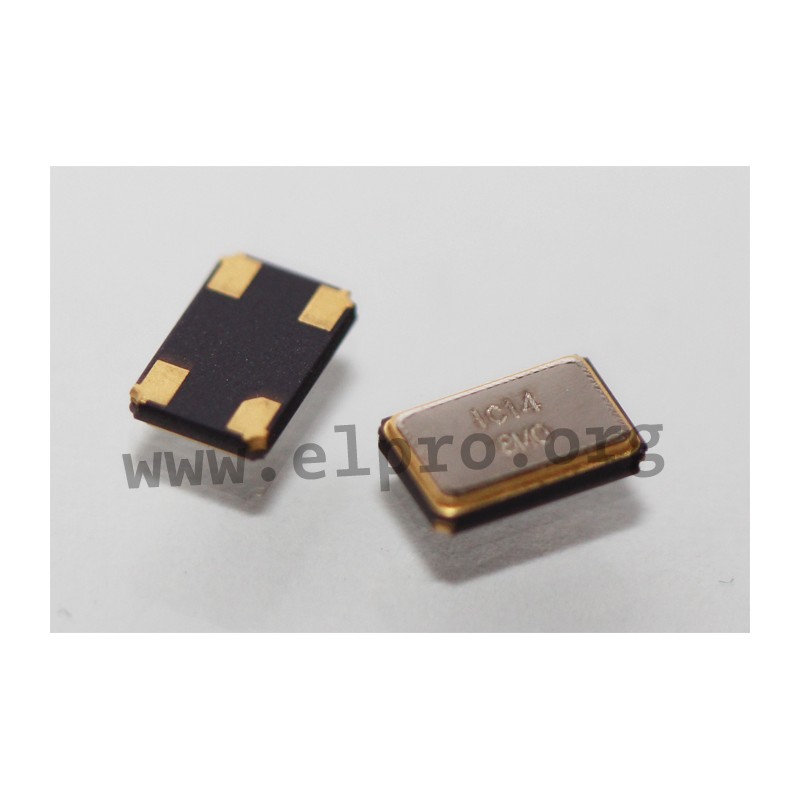

SMD quartz crystals IC14 by Red Frequency

* frequency: 8 to 12 MHz
* housing: 5.2x3.4x1 mm
* shunt capacitance, max.: 5 pF
* aging (25°C): ±2 ppm/year
* operating temperature: up -20 to +70°C

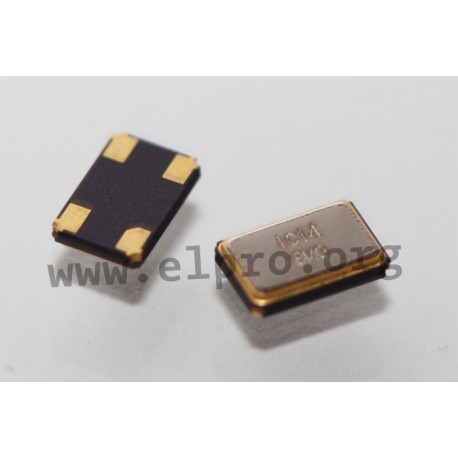

Series IC 14 by Red Frequency

IC 14 M16 16 MHz

46119 IC 14 M16 16 MHz IC14016.000M20.0CE1B IC14016.000M20.0CE1B SMD quartz crystals IC14 by Red Frequency. * frequency: 8 to 12 MHz* housing: 5.2x3.4x1 mm* shunt capacitance, max.: 5 pF* aging (25°C): ±2 ppm/year* operating temperature: up -20 to +70°C

Specifications

manufacturer
Manufacturer's name IC14016.000M...

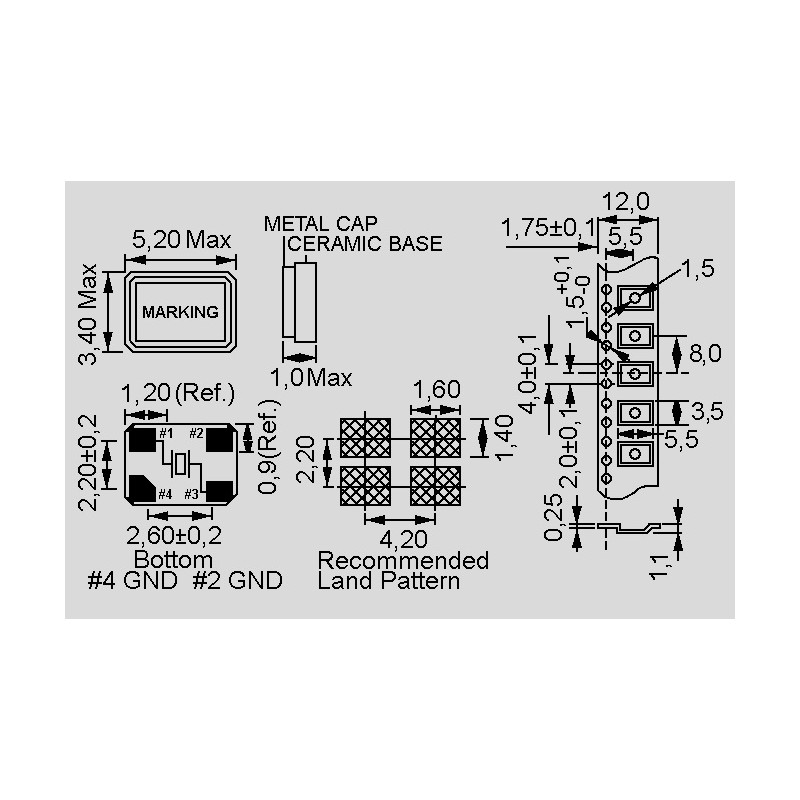

Case 5,2 x 3,4 x 1 mm
Frequency tolerance [ppm] 20
Load capacitance [pF] 20
Equivalent series resistance, max. [Ω] 80
Frequency [MHz] 16

Unit price

0,77 €

Stock: 1700
Further delivery:
CW 04/2025

Minimum order quantity 5 units or
multiples of 5.
