IC 11 M50 50 MHz

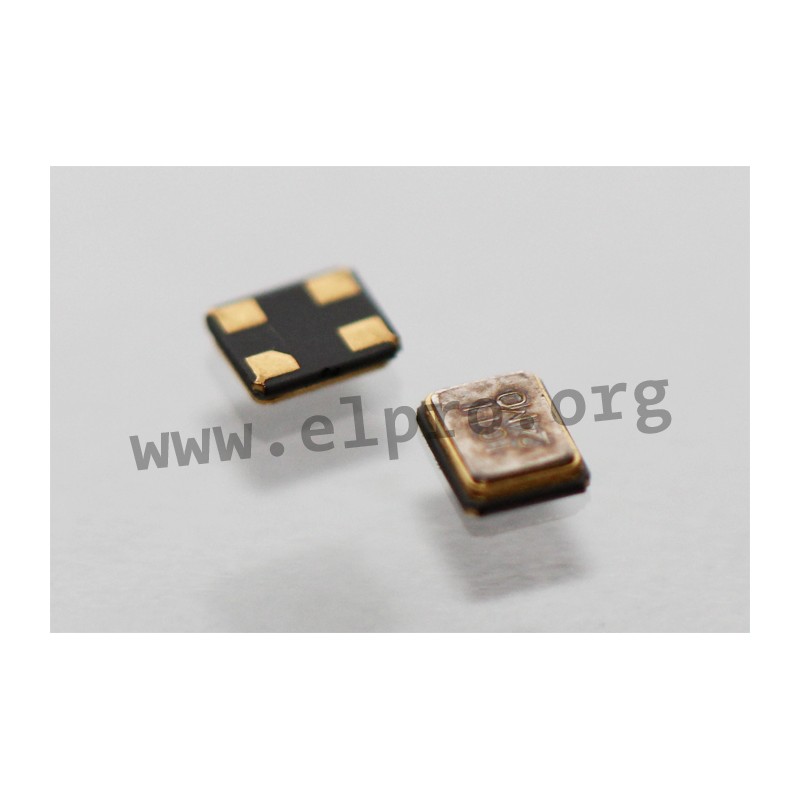

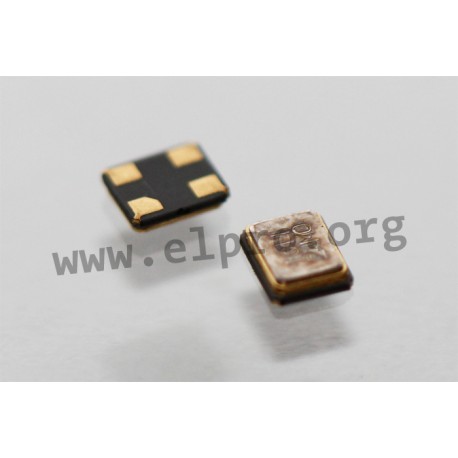

SMD quartz crystals IC11 by Red Frequency

* housing: 2.1x1.7x0.5 mm
* frequency: 24 to 50 MHz
* frequency tolerance (25°C): ±30ppm
* frequency tolerance (-40 to +85°C): ±50 ppm
* shunt capacitance, typ.: 2 pF
* load capacitance: 8 pF
* aging (25°C): ±3 ppm/year
* operating temperature: up -40 to +85°C
IC 11 M50 50 MHz

IC 11 M50 50 MHz

41706 IC 11 M50 50 MHz IC11050.000M08.0EF1E IC11050.000M08.0EF1E SMD quartz crystals IC11 by Red Frequency. * housing: 2.1x1.7x0.5 mm* frequency: 24 to 50 MHz* frequency tolerance (25°C): ±30ppm* frequency tolerance (-40 to +85°C): ±50 ppm* shunt capacitance, typ.: 2 pF* load capacitance: 8 pF* aging (25°C): ±3 ppm/year* operating temperature: up -40 to +85°C

Specifications

manufacturer
Manufacturer's name IC11050.000M...

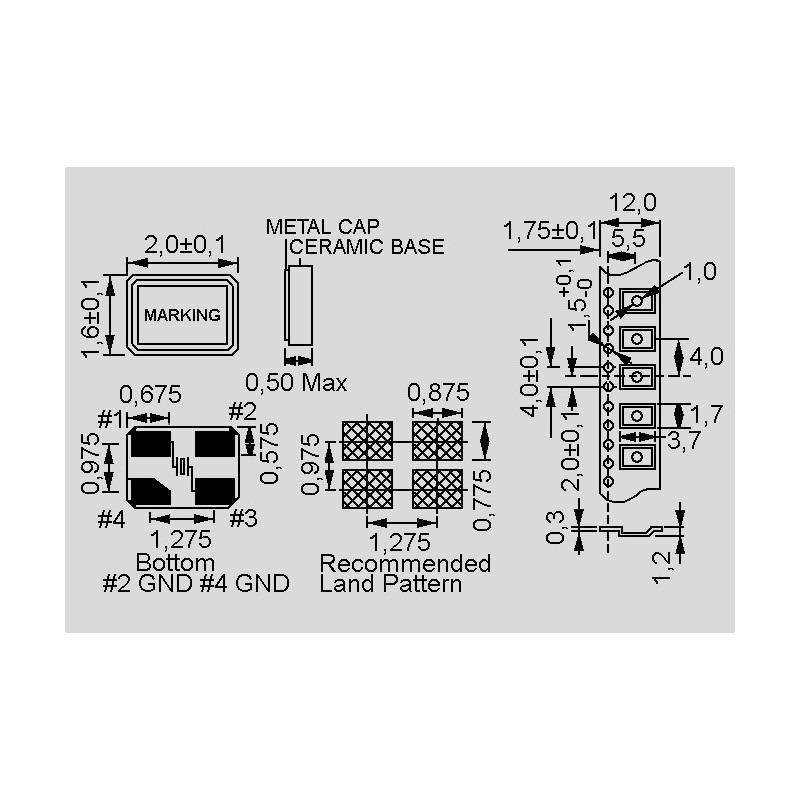

Case 2,1 x 1,7 x 0,5 mm
Load capacitance [pF] 8
Equivalent series resistance, max. [Ω] 60
Frequency [MHz] 50
Data Sheet

Unit price

1,13 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 500 units or
multiples of 500.
