RYK-053.3S/H

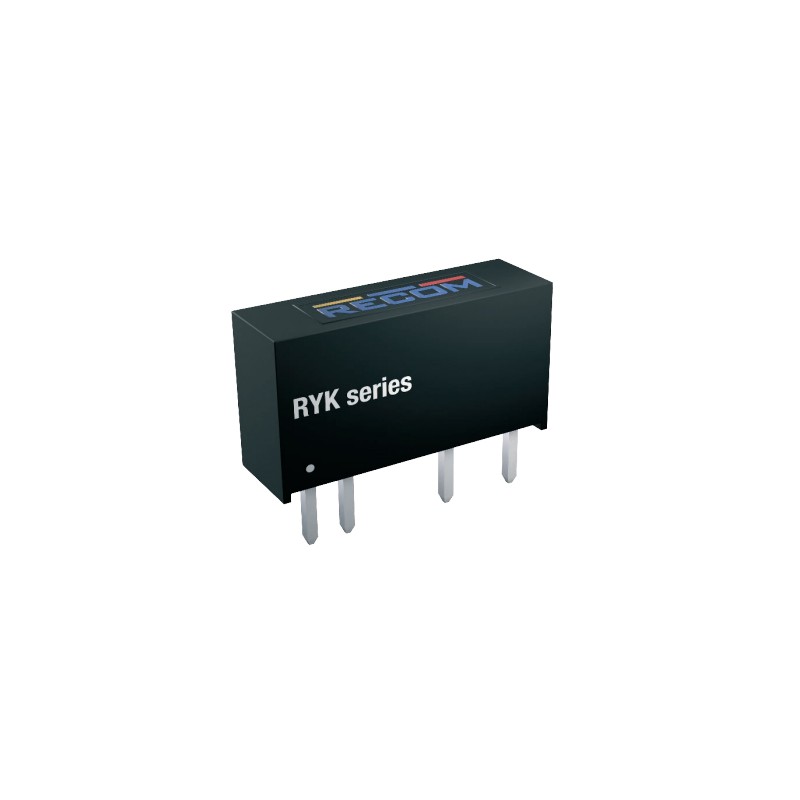

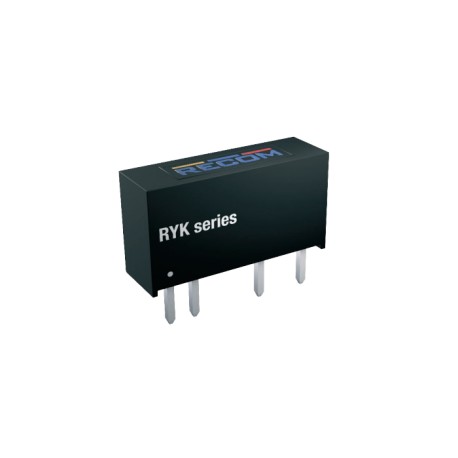

Recom DC/DC converter series RYK

DCC/DC converter modules in a SIL7 housing with 1W and a built-in linear regulator. These devices are suitable for PCB mounting and comply with EN62368-1 as well as EN55032. They are inexpensive and have an input voltage ratio of 1:1. We offer the following types of this Recom series: RYK-0505S/H and RYK-053.3S/H.

  • single output
  • output: 1W
  • output voltage tolerance: ±1%
  • maximal ripple and noise: 60mVpp
  • withstand voltage I/P-O/P: 4000V DC
  • operating temperature: -40 to +105°C
  • dimensions: 19,6x6x14,3mm
  • weight: 1,7g
RYK-053.3S/H, Recom DC/DC converters, 1W, SIL7 housing, RYK series

RYK-053.3S/H

242800 RYK-053.3S/H RYK-053.3S/H Recom DC/DC converter series RYK. DCC/DC converter modules in a SIL7 housing with 1W and a built-in linear regulator. These devices are suitable for PCB mounting and comply with EN62368-1 as well as EN55032. They are inexpensive and have an input voltage ratio of 1:1. We offer the following types of this Recom series: RYK-0505S/H and RYK-053.3S/H. single output output: 1W output voltage tolerance: ±1% maximal ripple and noise: 60mVpp withstand voltage I/P-O/P: 4000V DC operating temperature: -40 to +105°C dimensions: 19,6x6x14,3mm weight: 1,7g

Specifications

manufacturer
Manufacturer's name RYK-053.3S/H
Input voltage [V] 5
Output voltage [V] 3,3
Output current [mA] 303
Efficiency [%] 85
Data Sheet

Unit price

3,19 €

Stock: 44
Further delivery:
CW 02/2025
