RY-0505D

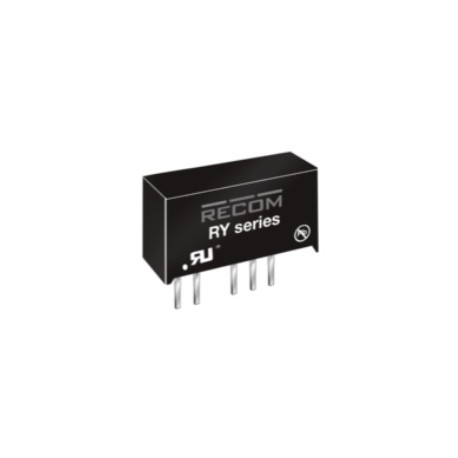

Recom DC/DC converter series RY

DC/DC converters in a SIP/SIL7 housing with 1W. These devices have single (RY-_S) or dual outputs (RY-_D) and offer an efficiency of up to 70%. With a maximum voltage accuracy of ±5% (load 100%), they provide unregulated voltage, while continuous short circuit protection ensures safety during operation. The converters also feature on/off pins and can withstand up to 1kV DC isolation. They are suitable for PCB mounting and produce minimal ripple & noise, maxing out at just 100mVpp. Operating temperature ranges from -40°C to +70°C, making them suitable for use in harsh environments. We offer the following types of this Recom series: RY-0505S, RY-1205S, RY-2405S, RY-0505D and RY-0515D.

  • single bzw. dual output
  • output: 1W
  • withstand voltage: 1kV DC
  • maximal ripple and noise: 100mVpp
  • operating temperature: -40 to +70°C
DC/DC-converter modules series RY

RY-0505D

108951 RY-0505D RY-0505D Recom DC/DC converter series RY. DC/DC converters in a SIP/SIL7 housing with 1W. These devices have single (RY-_S) or dual outputs (RY-_D) and offer an efficiency of up to 70%. With a maximum voltage accuracy of ±5% (load 100%), they provide unregulated voltage, while continuous short circuit protection ensures safety during operation. The converters also feature on/off pins and can withstand up to 1kV DC isolation. They are suitable for PCB mounting and produce minimal ripple & noise, maxing out at just 100mVpp. Operating temperature ranges from -40°C to +70°C, making them suitable for use in harsh environments. We offer the following types of this Recom series: RY-0505S, RY-1205S, RY-2405S, RY-0505D and RY-0515D. single bzw. dual output output: 1W withstand voltage: 1kV DC maximal ripple and noise: 100mVpp operating temperature: -40 to +70°C

Specifications

manufacturer
Manufacturer's name RY-0505D
Input voltage [V] 5
Output voltage [V] ±5
Output current range [mA] ±100
Efficiency [%] 58...58
Data Sheet

Unit price

12,39 €

Stock: 125
Further delivery:
CW 16/2025
