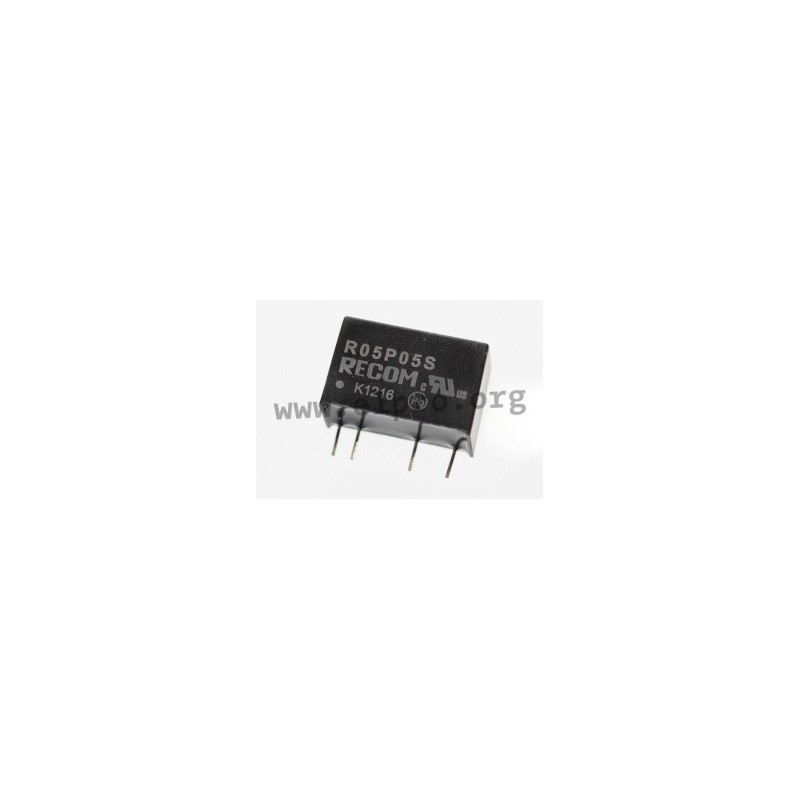

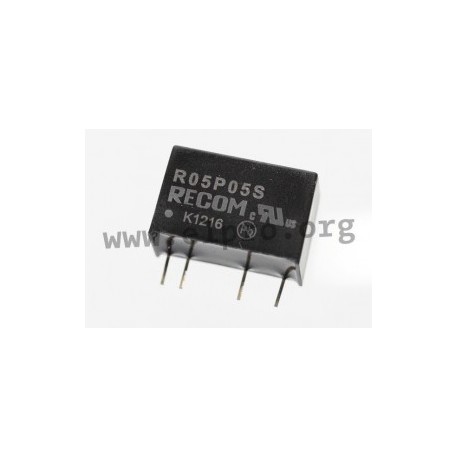

R05P05S/R8

Recom DC/DC converter series RxxPxx

Converter modules in a SIL7 housing (19,5x9,8x12,5mm) with 1W. These devices are suitable for medical technology, can be mounted directly on PCBs and comply with UL/EN60950-1 as well as EN55032 class A and B. They have a withstand voltage of 6,4kV DC and an efficiency of up to 75%. We offer the type R05P05S/R8 with a reinforced isolation, the version R05P05S/X2 with a single output and an alternative pinout as well as the models R05P05S, R05P205S and R24P05S.

  • output voltage tolerance: ±5%
  • maximal ripple and noise: 200mVpp
  • operating temperature R_P_: -40 to +90°C
  • operating temperature R_P_/R8: -40 to +85°C
  • dimensions: 19,5x9,8x12,5mm
  • weight: 4,3g
R05P-series

R05P05S/R8

108922 R05P05S/R8 R05P05S/R8 Recom DC/DC converter series RxxPxx. Converter modules in a SIL7 housing (19,5x9,8x12,5mm) with 1W. These devices are suitable for medical technology, can be mounted directly on PCBs and comply with UL/EN60950-1 as well as EN55032 class A and B. They have a withstand voltage of 6,4kV DC and an efficiency of up to 75%. We offer the type R05P05S/R8 with a reinforced isolation, the version R05P05S/X2 with a single output and an alternative pinout as well as the models R05P05S, R05P205S and R24P05S. output voltage tolerance: ±5% maximal ripple and noise: 200mVpp operating temperature R_P_: -40 to +90°C operating temperature R_P_/R8: -40 to +85°C dimensions: 19,5x9,8x12,5mm weight: 4,3g

Specifications

manufacturer
Manufacturer's name R05P05S/R8
Input voltage [V] 5
Output voltage [V] 5
Output current range [mA] 200
Efficiency [%] 75...80
Data Sheet

Unit price

21,89 €

Stock: 21
Further delivery:
CW 06/2025
