R24P21503D

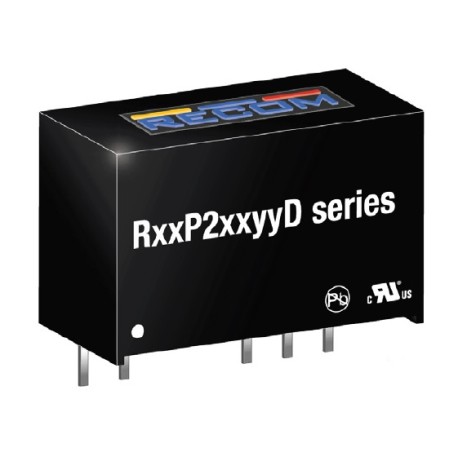

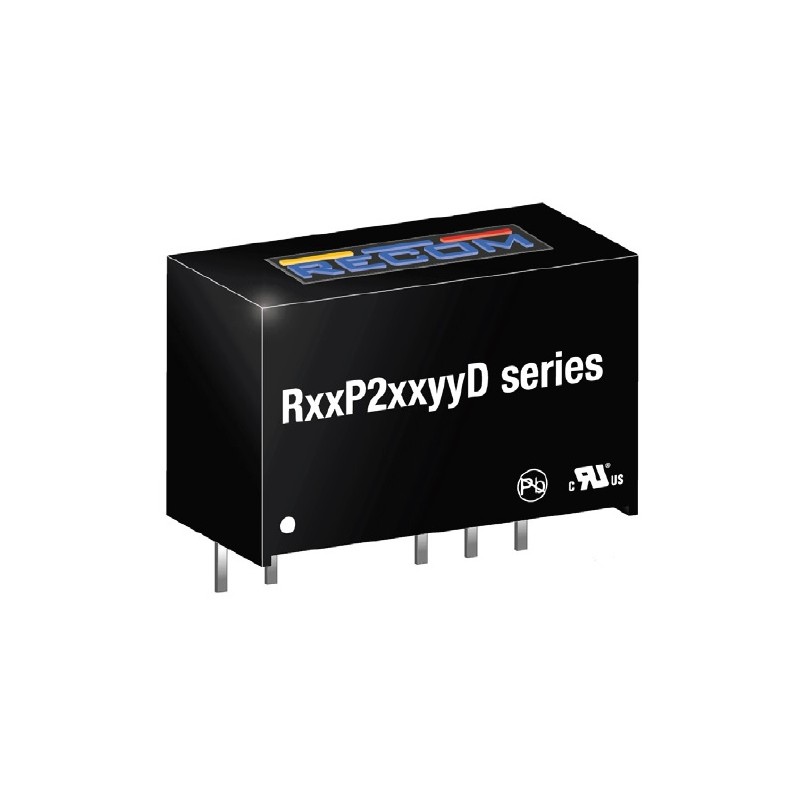

Recom DC/DC converter series RxxP2xxyy

Converter modules in a SIL7 housing with 2W, an efficiency of up to 82%, a low isolation capacitance of max. 10pF and a withstand voltage of 6,4kV DC. These devices have asymetric outputs +15/+3V for SiC driver applications as well as a pot-core transformer with seperated windings. We offer various types of this Recom series.

  • dual output
  • output: 2W
  • maximal output voltage tolerance: ±5% (at 100% load)
  • maximal ripple and noise: 200mVpp
  • operating temperature: -40 to +90°C
  • weight: 4,3g
R24P21503D, Recom DC/DC converters, 2W, SIL7 housing, for SiC and IGBT applications, RxxP2xxyy series

R24P21503D

110585 R24P21503D R24P21503D Recom DC/DC converter series RxxP2xxyy . Converter modules in a SIL7 housing with 2W, an efficiency of up to 82%, a low isolation capacitance of max. 10pF and a withstand voltage of 6,4kV DC. These devices have asymetric outputs +15/+3V for SiC driver applications as well as a pot-core transformer with seperated windings. We offer various types of this Recom series. dual output output: 2W maximal output voltage tolerance: ±5% (at 100% load) maximal ripple and noise: 200mVpp operating temperature: -40 to +90°C weight: 4,3g

Specifications

manufacturer
Manufacturer's name R24P21503D
Input voltage [V] 24
Output voltage [V] +15/-3
Output current range [mA] +66/-333
Efficiency [%] 82
Data Sheet

Unit price

10,69 €

Stock: 366
Further delivery:
CW 04/2025
