R15P215S

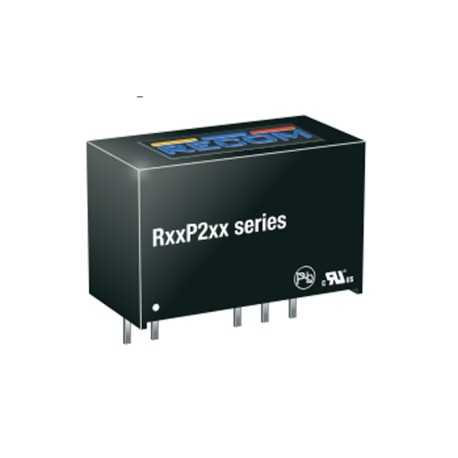

Recom DC/DC converters series RxxP2xx

DC/DC converter modules in a SIP/SIL7 housing with 2w and suitable for direct PCB mounting. These devices can be used in medical settings (following EN-60601) and for IGBT application, furthermore they conform with the safety classes UL 60950-1, EN60950-1, EN 62368-1, and EN 60601-1, as well as with the EMV norms EN 55032 class B and class A. We offer the following types of this Recom series: R15P215S and R24P215S.

  • single output
  • output current: 2W
  • output voltage tolerance: ±5%
  • maximal ripple quality: 200mVpp
  • isolation voltage (I/P-O/P): 6400V DC
  • operating temperature: -40 to +90°C
  • dimensions: 19,5 x 9,8 x12,5 mm
  • weight: 4,3g
R15P215S, Recom DC/DC converters, 2W, SIP/SIL7 housing, for medical and IGBT application, RxxP2xx series

R15P215S

247035 R15P215S R15P215S Recom DC/DC converters series RxxP2xx. DC/DC converter modules in a SIP/SIL7 housing with 2w and suitable for direct PCB mounting. These devices can be used in medical settings (following EN-60601) and for IGBT application, furthermore they conform with the safety classes UL 60950-1, EN60950-1, EN 62368-1, and EN 60601-1, as well as with the EMV norms EN 55032 class B and class A. We offer the following types of this Recom series: R15P215S and R24P215S. single output output current: 2W output voltage tolerance: ±5%  maximal ripple quality: 200mVpp isolation voltage (I/P-O/P): 6400V DC operating temperature: -40 to +90°C dimensions: 19,5 x 9,8 x12,5 mm weight: 4,3g

Specifications

manufacturer
Manufacturer's name R15P215S
Output voltage [V] 15
Input voltage range [V] 15
Output current range [mA] 133
Efficiency [%] 75...80
Data Sheet

Unit price

14,49 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
