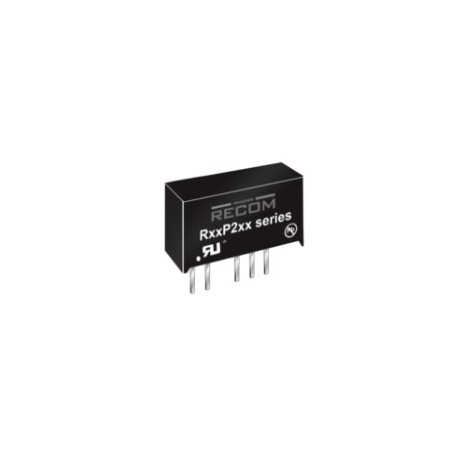

R05P215S/P

Recom DC/DC converter series RxxP2xx

The devices in SIL7 housing are suitable for direct PCB mounting. They have an efficiency of up to 80% and they possess a 6.4 kV DC isolation. The devices conform EN-60601 for medical applications and are suitable for IGBT applications. We are offering the following types by Recom: R05P205S, R05P209S, R05P205S/P, R05P205S/X2, R05P215S/P, R12P205S, R12P212S, R12P212D, R12P212D/P, R24P212S and R24P215D.

  • R_P2_S: single output
  • R_P2_D: dual output
  • R_P2_/P: continuous short circuit protection
  • R_P2_/X2: single output with an alternative pin assignment
  • voltage accuracy (load 100%): ±5%
  • ripple & noise, max.: 200mVpp
  • operating temperature: -40 to +90°C
  • weight: 4.3g
converter modules by Recom

R05P215S/P

108838 R05P215S/P R05P215S/P Recom DC/DC converter series RxxP2xx. The devices in SIL7 housing are suitable for direct PCB mounting. They have an efficiency of up to 80% and they possess a 6.4 kV DC isolation. The devices conform EN-60601 for medical applications and are suitable for IGBT applications. We are offering the following types by Recom: R05P205S, R05P209S, R05P205S/P, R05P205S/X2, R05P215S/P, R12P205S, R12P212S, R12P212D, R12P212D/P, R24P212S and R24P215D. R_P2_S: single output R_P2_D: dual output R_P2_/P: continuous short circuit protection R_P2_/X2: single output with an alternative pin assignment voltage accuracy (load 100%): ±5% ripple & noise, max.: 200mVpp operating temperature: -40 to +90°C weight: 4.3g

Specifications

manufacturer
Manufacturer's name R05P215S/P
Input voltage [V] 5
Output voltage [V] 15
Output current range [mA] 132
Efficiency [%] 75...80
Data Sheet

Unit price

15,79 €

Stock: 25
Further delivery:
CW 06/2025
