R24C2T25-CT

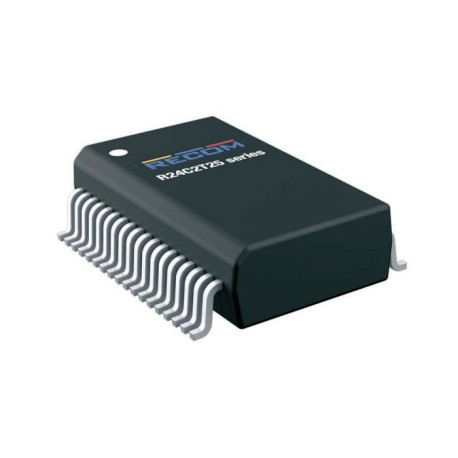

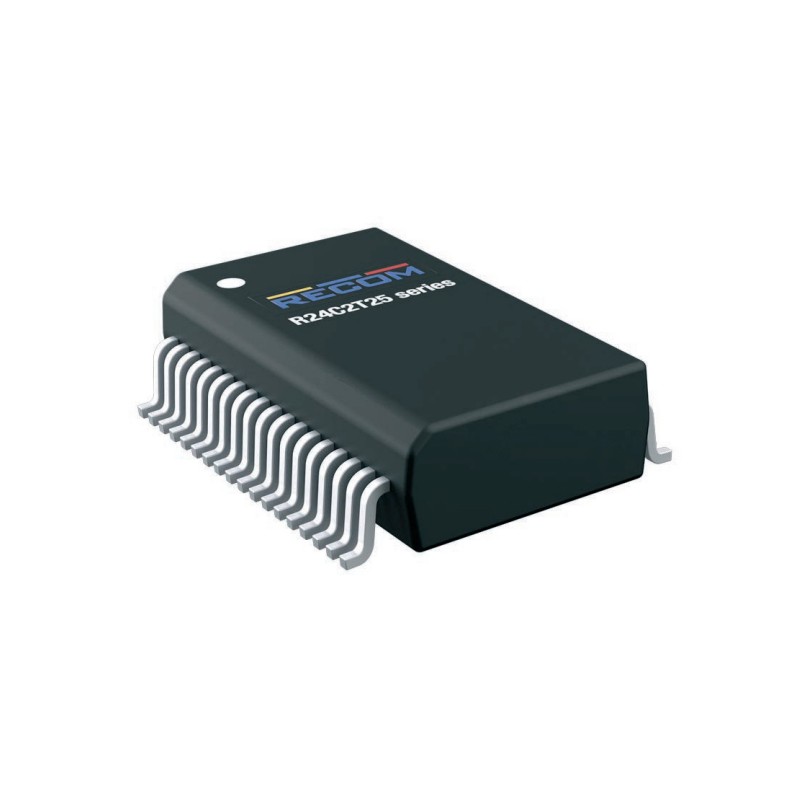

Recom DC/DC converter series RxxC2Txx-CT

DC/DC converter modules in a 36-pin SSOP SMD housing with 2W, a programmable output voltage and two output channels. These devices are suitable for direct PCB mounting, have a high 3kVAC/1min isolation and are protected against overload, overtemperature as well as short circuit. They have a low isolation capacitance of 3,5pF and comply with EN62368-1 as well as EN60112. We offer the type R24C2T25-CT of this Recom series.

  • dual output
  • output: 2W
  • output voltage tolerance: ±2%
  • operating temperature: -40 to +125°C
  • isolation voltage I/P-O/P: 3000V
  • dimensions: 3,55x7,5x12,83mm
  • weight: 0,1g
R24C2T25-CT, Recom DC/DC converters, 2W, SMD, dual output, RxxC2Txx-CT series

R24C2T25-CT

245312 R24C2T25-CT R24C2T25-CT Recom DC/DC converter series RxxC2Txx-CT. DC/DC converter modules in a 36-pin SSOP SMD housing with 2W, a programmable output voltage and two output channels. These devices are suitable for direct PCB mounting, have a high 3kVAC/1min isolation and are protected against overload, overtemperature as well as short circuit. They have a low isolation capacitance of 3,5pF and comply with EN62368-1 as well as EN60112. We offer the type R24C2T25-CT of this Recom series. dual output output: 2W output voltage tolerance: ±2% operating temperature: -40 to +125°C isolation voltage I/P-O/P: 3000V dimensions: 3,55x7,5x12,83mm weight: 0,1g

Specifications

manufacturer
Manufacturer's name R24C2T25-CT
Output voltage [V] ±2,5...22,5
Input voltage range [V] 21...27
Efficiency [%] 55
Output current [A] ±0,1...0,012
Data Sheet

Unit price

6,99 €

Stock: 250
Further delivery:
CW 07/2025
