R05C1TF05S-R

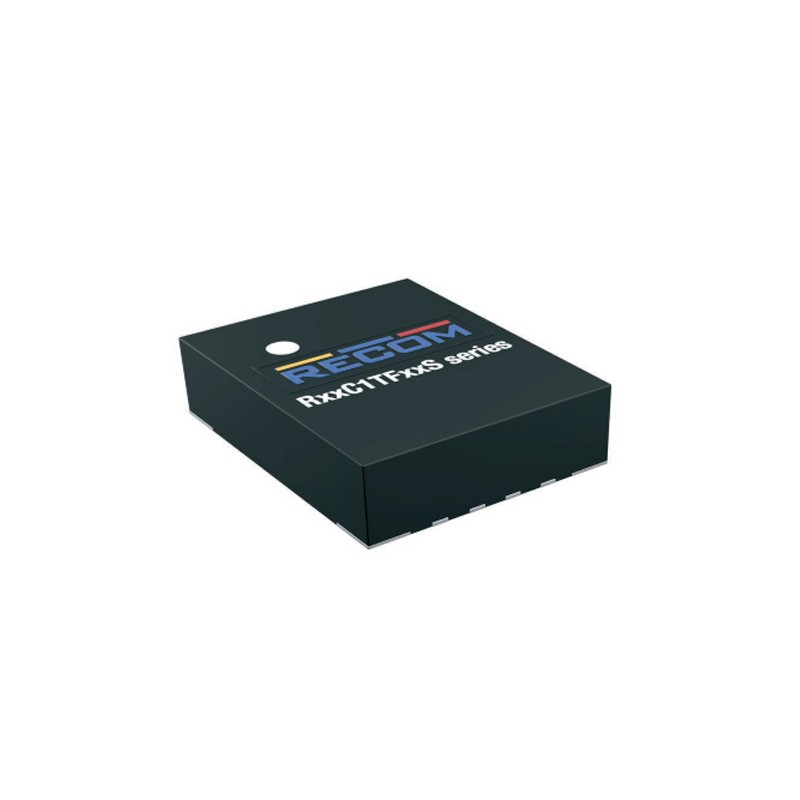

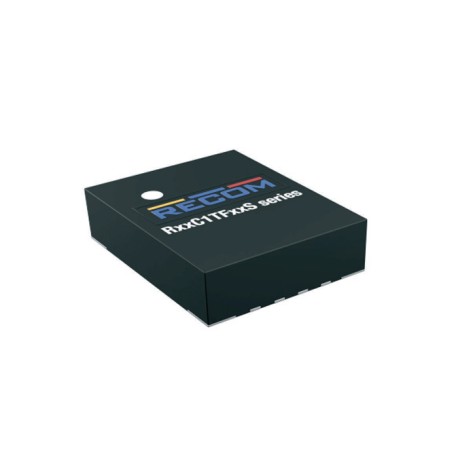

Recom SMD-DC/DC converters series RxxC1TFxxS-R

These DC/DC converter modules in a LGA housing have a output current of 1W, a ajustable output voltage, and a remote function. these devices are ultra-compact (5x4mm and have a low profile (1,8mm). We offer the R05C1TF05S-R type of this Recom series.

  • single output
  • output current: 1W
  • maximal ripple quality: 50mVp-p
  • isolation voltage (I/P-O/P): 3000V AC
  • operating temperature: -40 to +80°C
  • dimensions: 5x4x1,8mm
  • weight: 0,1g

R05C1TF05S-R

247059 R05C1TF05S-R R05C1TF05S-R Recom SMD-DC/DC converters series RxxC1TFxxS-R. These DC/DC converter modules in a LGA housing have a output current of 1W, a ajustable output voltage, and a remote function. these devices are ultra-compact (5x4mm and have a low profile (1,8mm). We offer the R05C1TF05S-R type of this Recom series. single output output current: 1W maximal ripple quality: 50mVp-p isolation voltage (I/P-O/P): 3000V AC operating temperature: -40 to +80°C dimensions: 5x4x1,8mm weight: 0,1g

Specifications

manufacturer
Manufacturer's name R05C1TF05S-R
Output voltage [V] 5
Input voltage range [V] 4,5...5,5
Efficiency [%] 50,5
Output current [A] 0,2
Data Sheet

Unit price

1,86 €

Stock: 0
Further delivery:
CW 01/2025

Minimum order quantity 500 units or
multiples of 500.
