R05C05TE05S-R

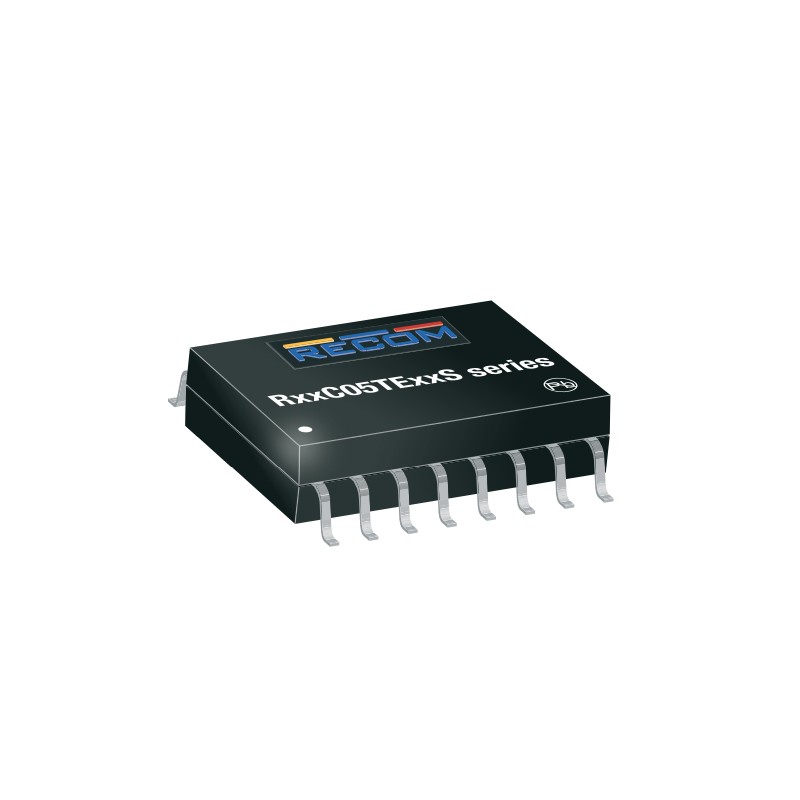

Recom DC/DC converter series RxxC05TExxS

DC/DC converters in an SMD housing with 0,5W, a semi-regulated 5V output and low EMI emissions. These devices are suitable for direct PCB mounting and are protected against overcurrent, overtemperature as well as short circuit. They have a low height (2,5mm), are very reliable and comply with EN62368-1. We offer the type R05C05TE05S-R of this Recom series.

  • single output
  • output: 0,5W
  • maximal ripple and noise: 50mVpp
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -40 to +125°C
  • dimensions: 10,35x7,5x2,5mm
  • weight: 0,1g

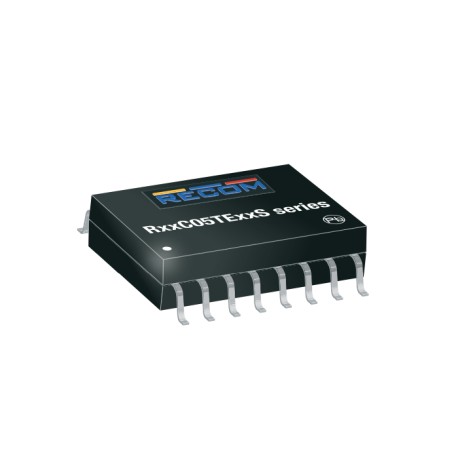

R05C05TE05S-R, Recom DC/DC converters, 0,5W, SMD, RxxC05TExxS series

R05C05TE05S-R

242802 R05C05TE05S-R R05C05TE05S-R Recom DC/DC converter series RxxC05TExxS. DC/DC converters in an SMD housing with 0,5W, a semi-regulated 5V output and low EMI emissions. These devices are suitable for direct PCB mounting and are protected against overcurrent, overtemperature as well as short circuit. They have a low height (2,5mm), are very reliable and comply with EN62368-1. We offer the type R05C05TE05S-R of this Recom series. single output output: 0,5W maximal ripple and noise: 50mVpp withstand voltage I/P-O/P: 3000V AC operating temperature: -40 to +125°C dimensions: 10,35x7,5x2,5mm weight: 0,1g

Specifications

manufacturer
Manufacturer's name R05C05TE05S-R
Input voltage [V] 4,5...5,5
Output voltage [V] 5
Efficiency [%] 53
Output current [A] 0,1

Unit price

3,99 €

Stock: 0
Further delivery:
CW 07/2025

Minimum order quantity 500 units or
multiples of 500.
