R15-150B

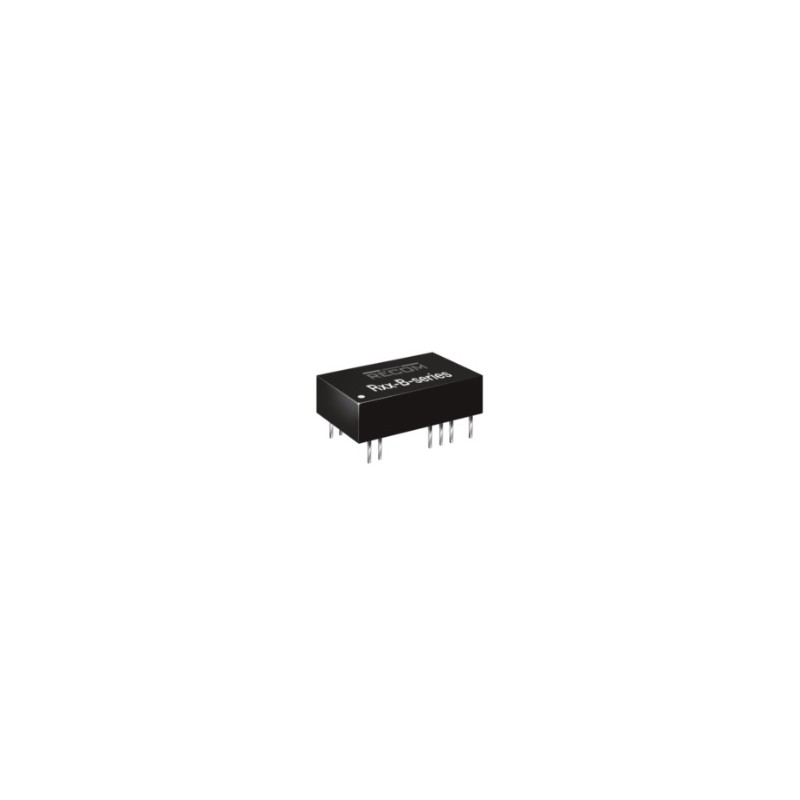

Recom DC/DC converter series Rxx-B

These modules possess a DIP/DIL24-housing and are suitable for direct PCB mounting. They are characterized by a high output voltage, adjustable up to 200V DC. Furthermore, it is cascadable for output voltage up to 420V DC. Their efficiency is 84% and their isolation voltage is 3kV DC. The modules are fitted with a remote voltage programming by external voltage or resistance and a continuous short circuit protection. We are offering the following types by Recom: R05-100B, R12-100B, R12-150B, R15-150B, R24-100B and R24-150B.

  • single output
  • output: 5W
  • voltage accuracy (load 100%): ±5%
  • maximal ripple & noise: 100mVpp
  • operating temperature: -40 to +85°C
  • weight: 12g

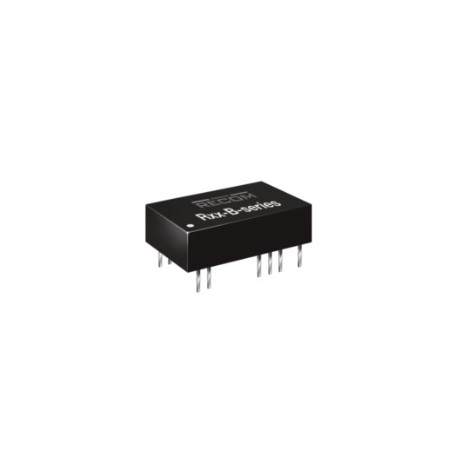

Rxx-B-series

R15-150B

108999 R15-150B R15-150B Recom DC/DC converter series Rxx-B. These modules possess a DIP/DIL24-housing and are suitable for direct PCB mounting. They are characterized by a high output voltage, adjustable up to 200V DC. Furthermore, it is cascadable for output voltage up to 420V DC. Their efficiency is 84% and their isolation voltage is 3kV DC. The modules are fitted with a remote voltage programming by external voltage or resistance and a continuous short circuit protection. We are offering the following types by Recom: R05-100B, R12-100B, R12-150B, R15-150B, R24-100B and R24-150B. single output output: 5W voltage accuracy (load 100%): ±5% maximal ripple & noise: 100mVpp operating temperature: -40 to +85°C weight: 12g

Specifications

manufacturer
Manufacturer's name R15-150B
Input voltage [V] 15 (14...17)
Output voltage [V] +92...+200
Output current range [mA] 50
Efficiency [%] 82
Data Sheet

Unit price

50,89 €

Stock: 38
Further delivery:
CW 13/2025
