RUZ-050505

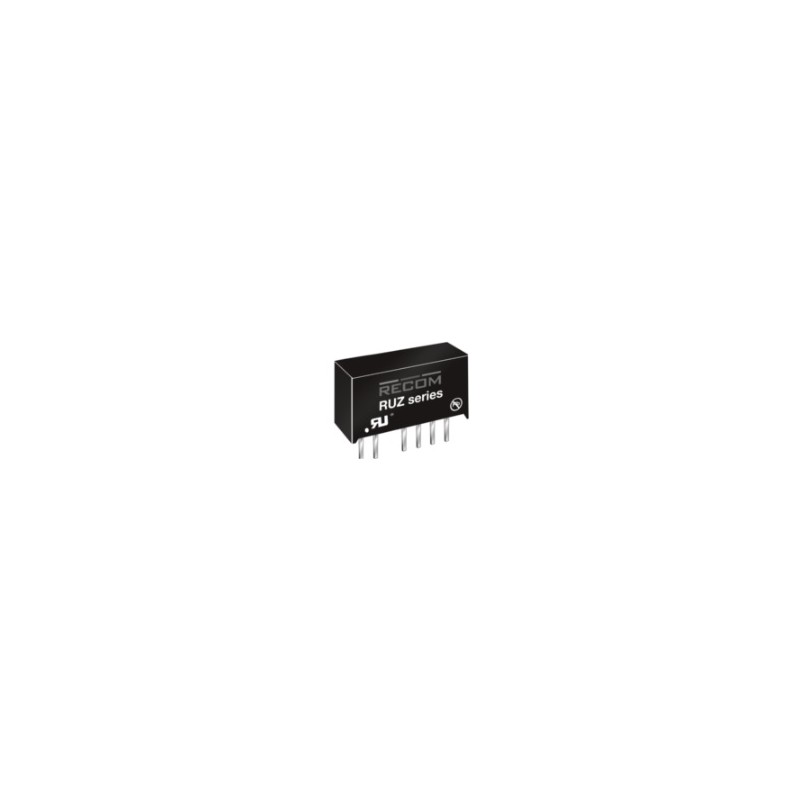

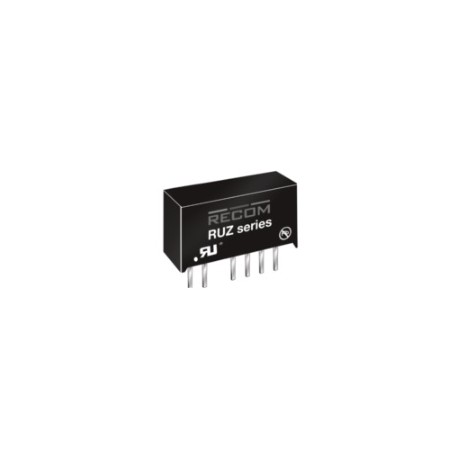

Recom DC/DC converter series RUZ

These converter modules possess a SIP/SIL7 housing and are suitable for direct PCB mounting. They have got an industry standard pin-out and a dual output from a single input rail. Their efficiency is up to 70% and their isolation voltage is 1kV DC. We are offering the following type by Recom: RUZ-050505.

  • dual output
  • output: 2W
  • voltage accuracy (load 100%): ±5%
  • maximal ripple & noise: 150mVpp
  • operating temperature: -40 to +85°C
RUZ-series by Recom

RUZ-050505

108946 RUZ-050505 RUZ-050505 Recom DC/DC converter series RUZ. These converter modules possess a SIP/SIL7 housing and are suitable for direct PCB mounting. They have got an industry standard pin-out and a dual output from a single input rail. Their efficiency is up to 70% and their isolation voltage is 1kV DC. We are offering the following type by Recom: RUZ-050505. dual output output: 2W voltage accuracy (load 100%): ±5% maximal ripple & noise: 150mVpp operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name RUZ-050505
Input voltage [V] 5
Output voltage [V] 5/5
Output current range [mA] 200/200
Efficiency [%] 70
Data Sheet

Unit price

14,39 €

Stock: 50
Further delivery:
CW 12/2025
