RTM-2405S

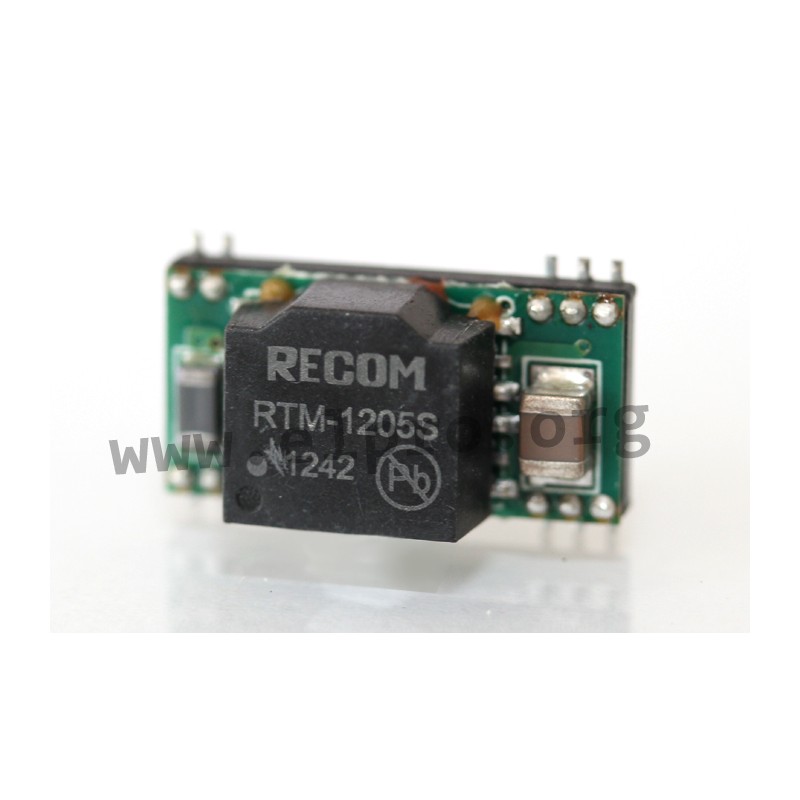

Recom DC/DC converters series RTM

These DC/DC converter modules with a current of 2W come in a SMD housing and are suitable for PCB mounting. These devices have a high efficiency, can be used in medical settings, and are unregulated. We offer the following types of this Recom series: RTM-0505S, RTM-1205S, and RTM-2405S.

  • current: 2W
  • single output
  • input voltage ratio: 1:1
  • maximal output voltage tolerance: ±5%
  • maximal ripple quality: 100 mVpp
  • isolation voltage: 2000V DC
  • operating temperature: -40 to +90°C
  • weight: 1,4g

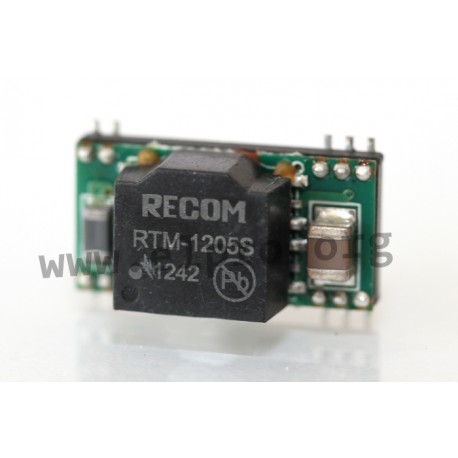

Recom RTM series

RTM-2405S

39069 RTM-2405S RTM-2405S Recom DC/DC converters series RTM. These DC/DC converter modules with a current of 2W come in a SMD housing and are suitable for PCB mounting. These devices have a high efficiency, can be used in medical settings, and are unregulated. We offer the following types of this Recom series: RTM-0505S, RTM-1205S, and RTM-2405S. current: 2W single output input voltage ratio: 1:1 maximal output voltage tolerance: ±5% maximal ripple quality: 100 mVpp isolation voltage: 2000V DC operating temperature: -40 to +90°C weight: 1,4g

Specifications

manufacturer
Manufacturer's name RTM-2405S

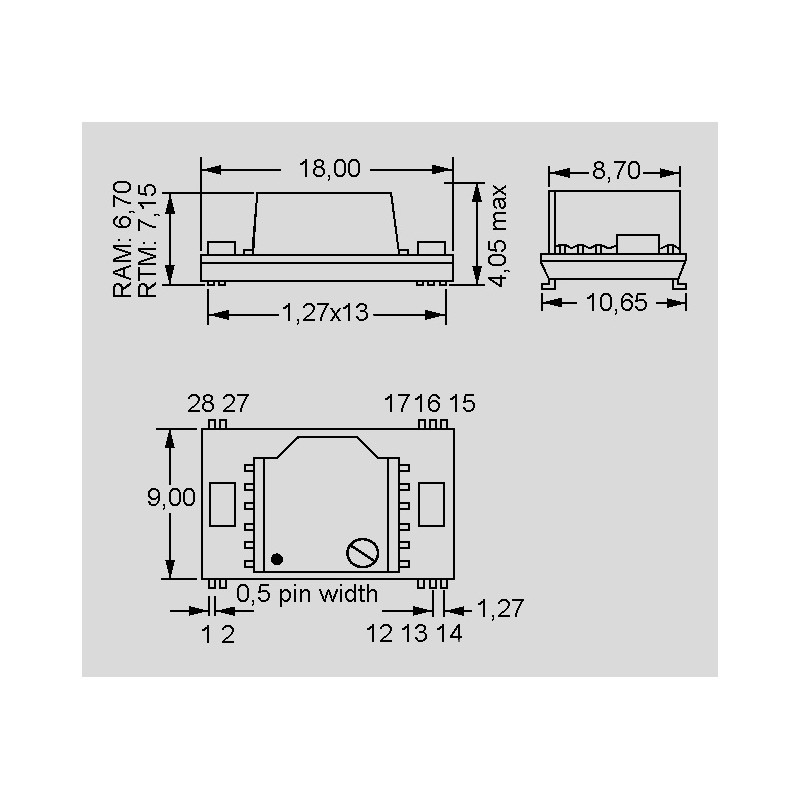

Case SMD-SIP 7-Gehäuse
Input voltage [V] 24
Output voltage [V] 5
Output current [mA] 400
Efficiency [%] 84
Data Sheet

Unit price

12,39 €

Stock: 0
Further delivery:
CW 19/2025

Minimum order quantity 27 units or
multiples of 27.
