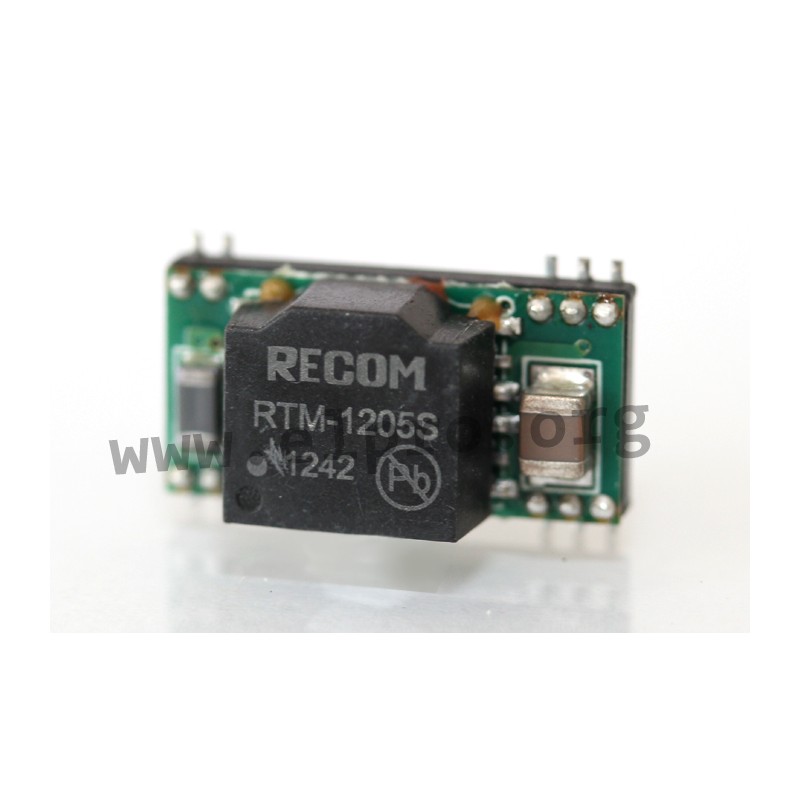

RTM-1205S

Recom DC/DC converters series RTM

These DC/DC converter modules with a current of 2W come in a SMD housing and are suitable for PCB mounting. These devices have a high efficiency, can be used in medical settings, and are unregulated. We offer the following types of this Recom series: RTM-0505S, RTM-1205S, and RTM-2405S.

  • current: 2W
  • single output
  • input voltage ratio: 1:1
  • maximal output voltage tolerance: ±5%
  • maximal ripple quality: 100 mVpp
  • isolation voltage: 2000V DC
  • operating temperature: -40 to +90°C
  • weight: 1,4g

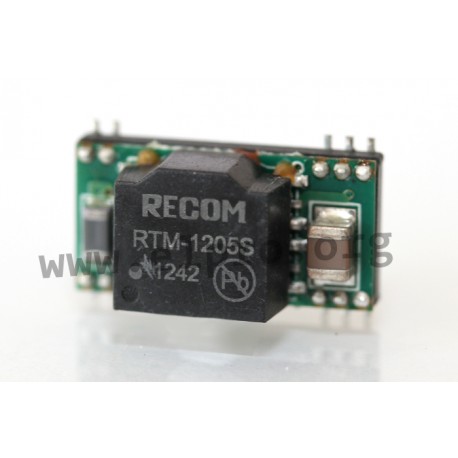

Recom RTM series

RTM-1205S

39068 RTM-1205S RTM-1205S Recom DC/DC converters series RTM. These DC/DC converter modules with a current of 2W come in a SMD housing and are suitable for PCB mounting. These devices have a high efficiency, can be used in medical settings, and are unregulated. We offer the following types of this Recom series: RTM-0505S, RTM-1205S, and RTM-2405S. current: 2W single output input voltage ratio: 1:1 maximal output voltage tolerance: ±5% maximal ripple quality: 100 mVpp isolation voltage: 2000V DC operating temperature: -40 to +90°C weight: 1,4g

Specifications

manufacturer
Manufacturer's name RTM-1205S

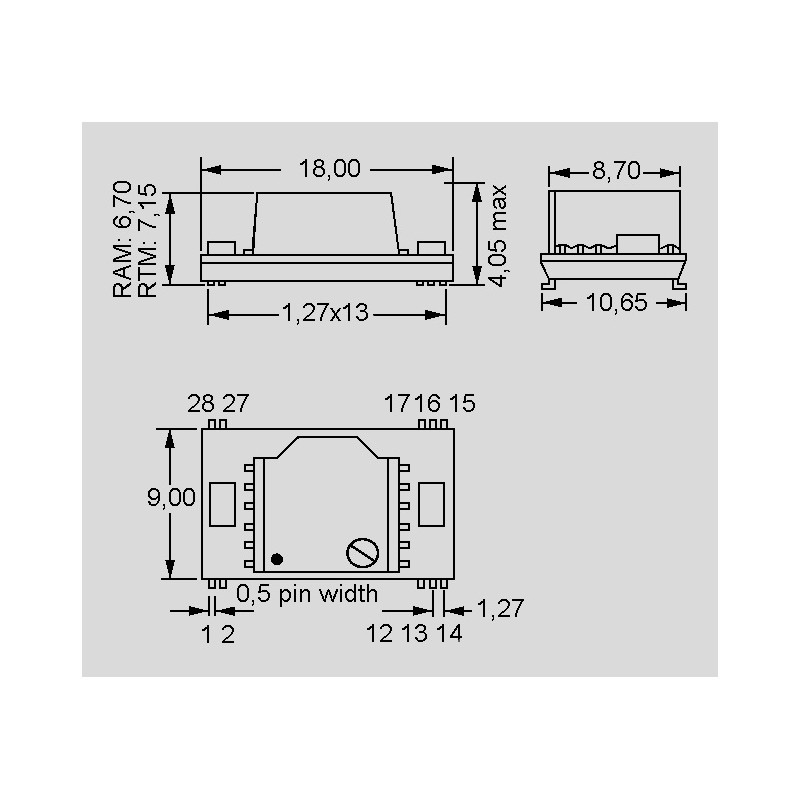

Case SMD-SIP 7-Gehäuse
Input voltage [V] 12
Output voltage [V] 5
Output current [mA] 400
Efficiency [%] 83
Data Sheet

Unit price

11,19 €

Stock: 1
Further delivery:
CW 13/2025

Minimum order quantity 1 unit or multiples of 27 plus 0 to 1 .
