RSOK-2412SZ/H3/ADJ

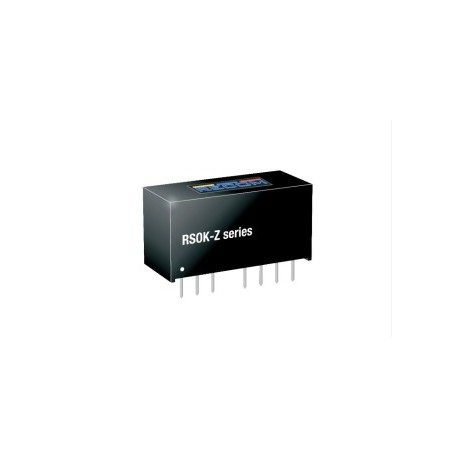

Recom DC/DC converter series RSOK-Z

DC/DC converter modules in a SIL8 housing with 1W and an ON/OFF control. These devices are suitable for PCB mounting and are protected against short circuit (continuous). They require no minimum load, have an input voltage ratio of 4:1 and comply with EN62368-1. We offer the following types of this Recom series: RSOK-2405SZ/H3 and RSOK-2412SZ/H3/ADJ.

  • single output
  • output: 1W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 80mVpp
  • withstand voltage I/P-O/P: 3000V DC
  • operating temperature: -40 to +105°C
  • dimensions: 21,8x9,2x11,1mm
  • weight: 4,7g
RSOK-2412SZ/H3/ADJ, Recom DC/DC converters, 1W, SIL8 housing, RSOK-Z series

RSOK-2412SZ/H3/ADJ

247247 RSOK-2412SZ/H3/ADJ RSOK-2412SZ/H3/ADJ Recom DC/DC converter series RSOK-Z. DC/DC converter modules in a SIL8 housing with 1W and an ON/OFF control. These devices are suitable for PCB mounting and are protected against short circuit (continuous). They require no minimum load, have an input voltage ratio of 4:1 and comply with EN62368-1. We offer the following types of this Recom series: RSOK-2405SZ/H3 and RSOK-2412SZ/H3/ADJ. single output output: 1W output voltage tolerance: ±2% maximal ripple and noise: 80mVpp withstand voltage I/P-O/P: 3000V DC operating temperature: -40 to +105°C dimensions: 21,8x9,2x11,1mm weight: 4,7g

Specifications

manufacturer
Manufacturer's name RSOK-2412SZ/H3/ADJ
Input voltage [V] 9...36
Output voltage [V] 12
Output current [mA] 167
Efficiency [%] 78
Data Sheet

Unit price

8,09 €

Stock: 22
Further delivery:
CW 12/2025
