RSOE-1205SZ/H2

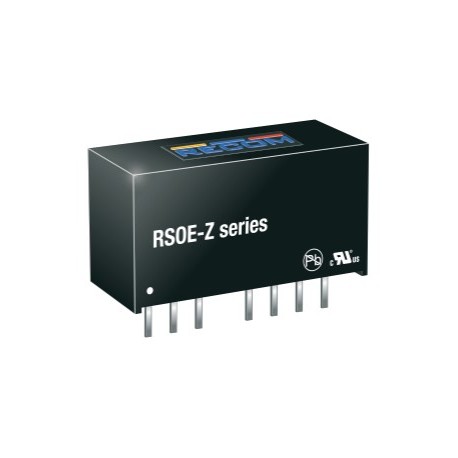

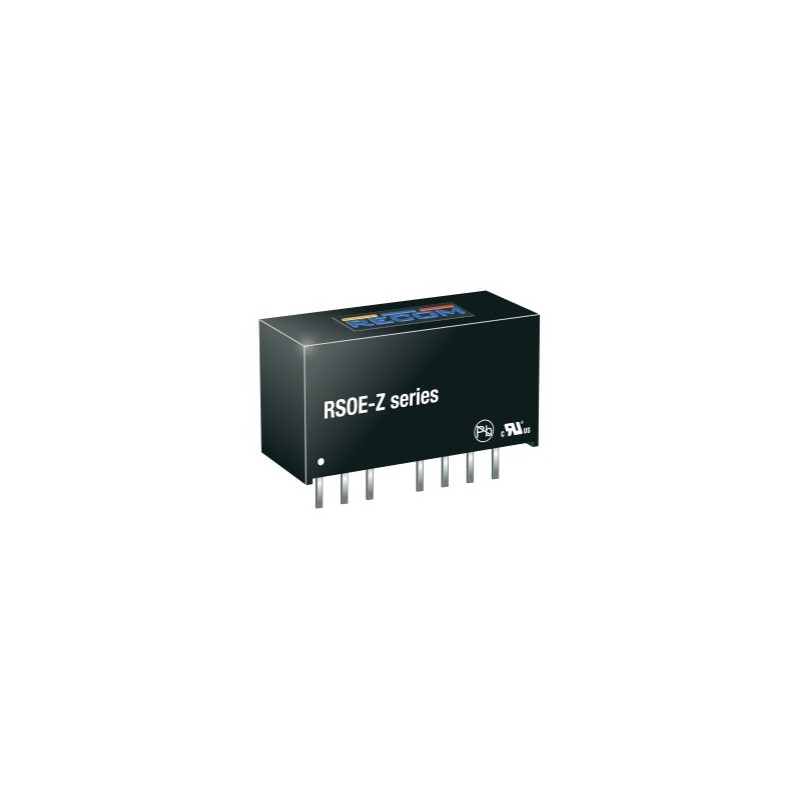

Recom DC/DC converter series RSOE/Z

Regulated DC/DC converters in a SIL8 housing with 1W and an input voltage ratio of 4:1. These devices are suitable for direct PCB mounting and comply with UL60950-1, UL62368-1, IEC62368-1, EN62368-1, EN55032 class A as well as EN55032 class B. They have a continuous short circuit protection and are suitable for industry as well as ITE applications. We offer the following types of this Recom series: RSOE-1205SZ/H2 and RSOE-2405SZ/H2.

  • single output
  • output: 1W
  • output voltage tolerance: ±2%
  • withstand voltage I/P-O/P: 2000V DC
  • connection type: THT
  • operating temperature: -40 to +75°C
  • dimensions: 21,8x9,2x11,1mm
  • weight: 4,7g
RSOE-1205SZ/H2, Recom DC/DC converters, 1W, SIL8 housing, RSOE/Z series

RSOE-1205SZ/H2

236115 RSOE-1205SZ/H2 RSOE-1205SZ/H2 Recom DC/DC converter series RSOE/Z. Regulated DC/DC converters in a SIL8 housing with 1W and an input voltage ratio of 4:1. These devices are suitable for direct PCB mounting and comply with UL60950-1, UL62368-1, IEC62368-1, EN62368-1, EN55032 class A as well as EN55032 class B. They have a continuous short circuit protection and are suitable for industry as well as ITE applications. We offer the following types of this Recom series: RSOE-1205SZ/H2 and RSOE-2405SZ/H2. single output output: 1W output voltage tolerance: ±2% withstand voltage I/P-O/P: 2000V DC connection type: THT operating temperature: -40 to +75°C dimensions: 21,8x9,2x11,1mm weight: 4,7g

Specifications

manufacturer
Manufacturer's name RSOE-1205SZ/H2
Output voltage [V] 5
Input voltage range [V] 4,5...18
Efficiency [%] 79
Output current [A] 0,2
Ripple [mVp-p] 100
Data Sheet

Unit price

8,89 €

Stock: 0
Next incoming goods:
CW 50/2024
44 units

Further delivery:
CW 13/2025
