RSOE-0505S/H2

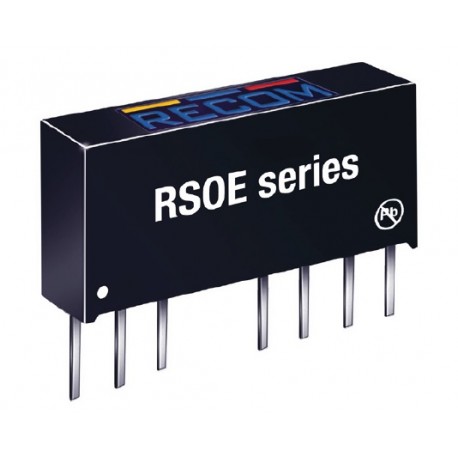

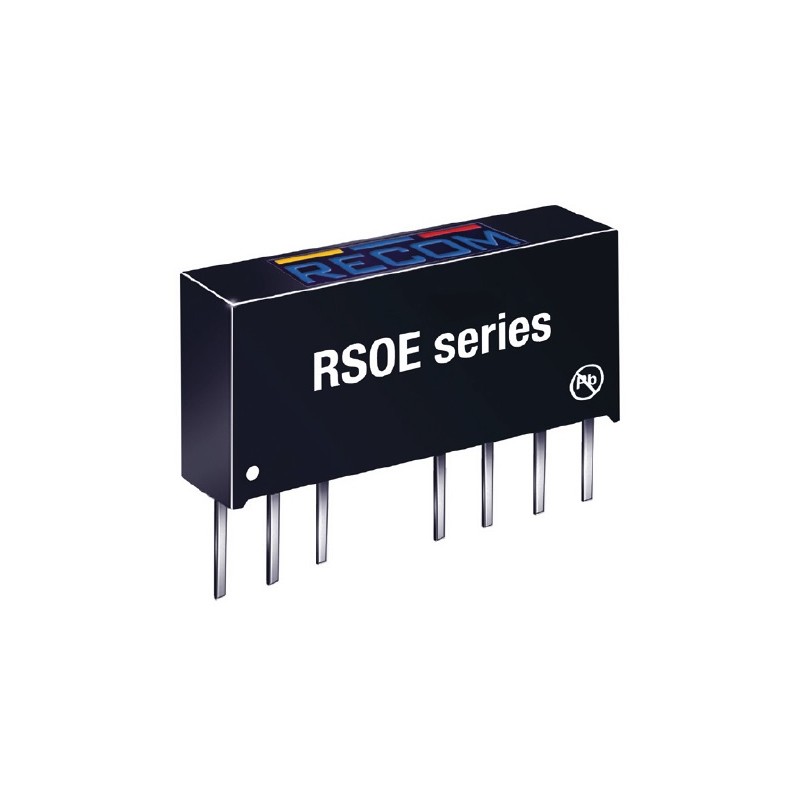

DC/DC converter modules by Recom

These regulated modules have a SIP/SIL8-housing and are suitable for direct PCB mounting. Their efficiency is up to 80% and their isolation 2kV DC. We are offering the following types by Recom: RSOE-0505S/H2 and RSOE-2405S/H2.

* output: 1 Watt
* single output
* input voltage ratio: 2:1
• ripple & noise, max.: 75mVpp
• operating temperature: -40 to +80°C
• weight: 4.7g

RSOE-series

RSOE-0505S/H2

108965 RSOE-0505S/H2 RSOE-0505S/H2 DC/DC converter modules by Recom. These regulated modules have a SIP/SIL8-housing and are suitable for direct PCB mounting. Their efficiency is up to 80% and their isolation 2kV DC. We are offering the following types by Recom: RSOE-0505S/H2 and RSOE-2405S/H2. * output: 1 Watt* single output* input voltage ratio: 2:1• ripple & noise, max.: 75mVpp• operating temperature: -40 to +80°C• weight: 4.7g

Specifications

manufacturer
Manufacturer's name RSOE-0505S/H2
Input voltage [V] 4,5...9
Output voltage [V] 5
Output current range [mA] 200
Efficiency [%] 76
Data Sheet

Unit price

7,49 €

Stock: 23
Further delivery:
CW 02/2025
